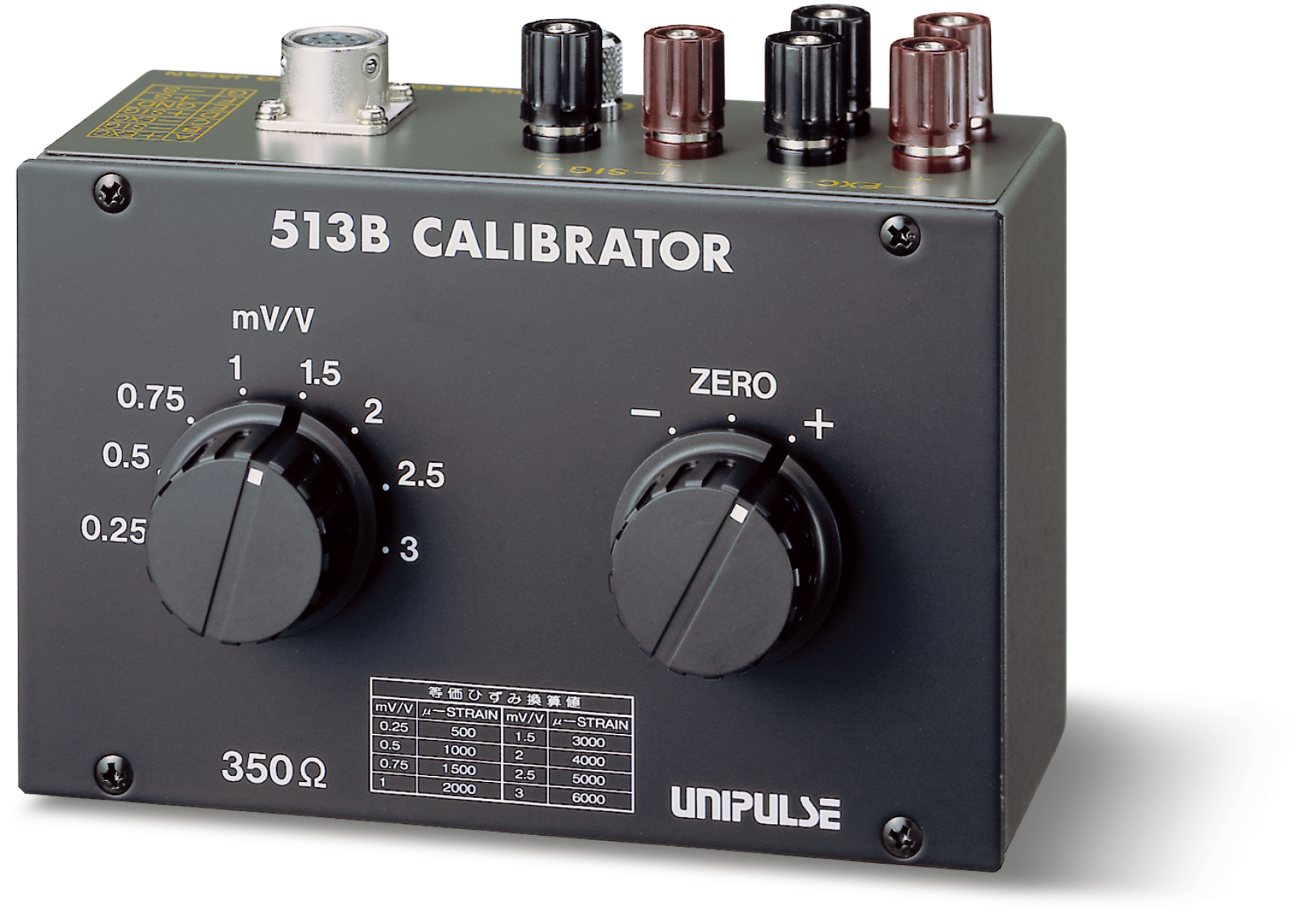

Product outline
High precision calibrator that can generate wide range of pseudo output.
Specifications
| Input resistance | 350Ω±2% |
|---|---|
| Output resistance | 350Ω±2% |
| Calibration output value | 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 3mV/V |
| Polarity | +, -, ZERO |
| Error | Within ±0.01% of each range |
| Gain drift | ±5ppm/℃ |
| Excitation voltage | DC10V (DC15Vmax) |
| Dimensions | 150(W)×95(H)×63(D) mm (not including projections) |
| Weight | Approx. 800g |
| Operation condition | Temperature: -20 to +60℃ Humidity: 80%RH or less (non-condensing) |
| Attachments | (6-wired) cable with PRC connector at both end 1m・・・ 1 |
(At the above-mentioned specification use of cable of attachment.)
