Product outline

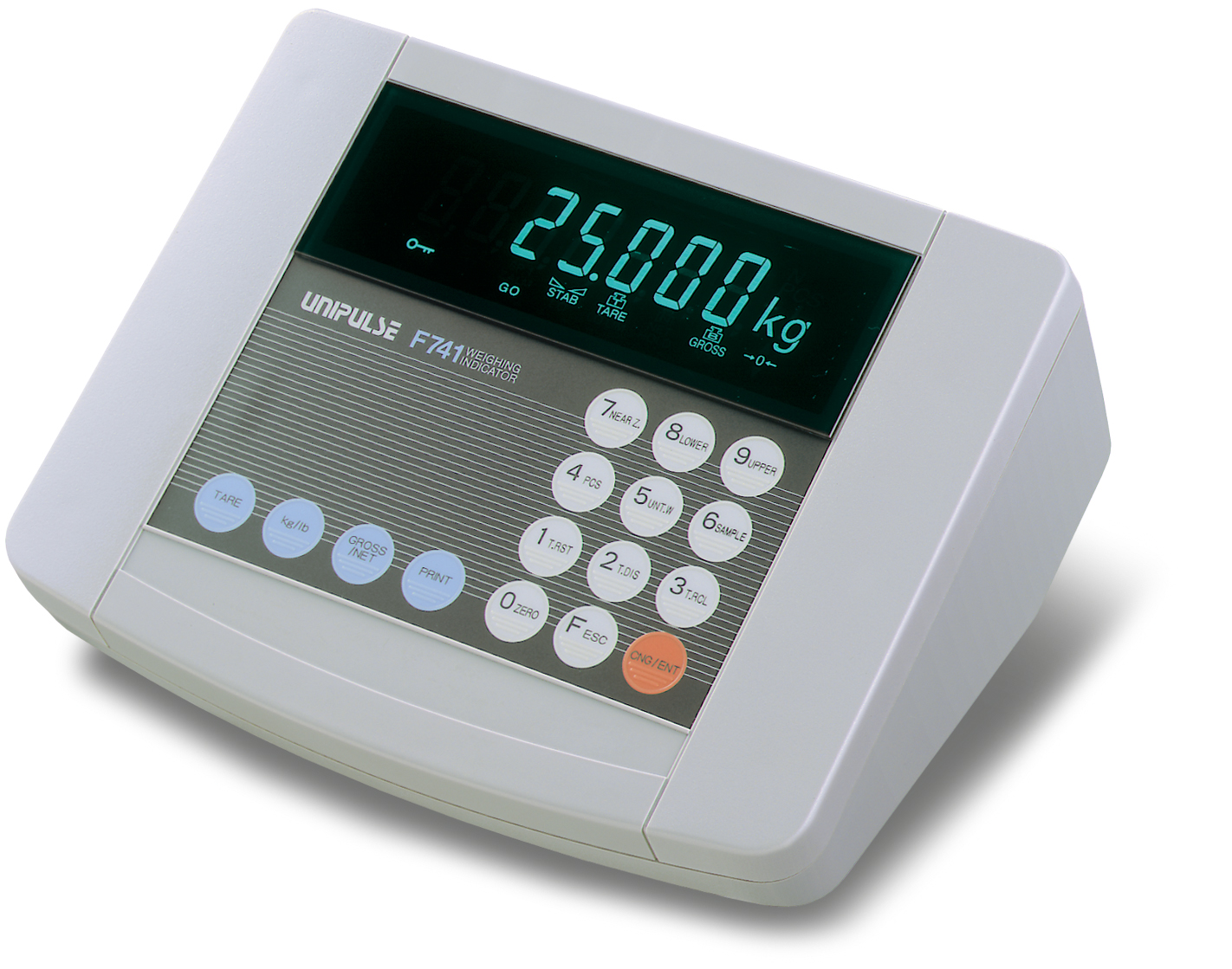

F741R2 is a desktop type load cell indicator that can be used for any type of platform scale. The most important features include field operability such as a large display tube, which is easy to read even in harsh environments, and maneuverable one-touch function keys. With the counting function to display the parts quantity, the HI/LO limit comparison function conveniently used for checkers, and the multi-interval function, F741R2 is an indicator excellent in cost effectiveness.
Specifications
Analog section｜Setting section｜I/O section｜General specifications｜Attachments
| Analog section | |
| Excitation voltage | DC 10 V±5%, Output current; within 120 mA, Ratiometric method (Up to 4 load cells at 350 Ω are parallel-connectable.) |
|---|---|
| Zero adjustment range | ±2 mV/V |
| Gain adjustment range | 0.5 to 3.0 mV/V |
| Min. input sensitivity | 0.5 μV/count |
| Accuracy |
Non-linearity: within 0.01% FS Zero drift: within 0.2 μV/°C RTI Gain drift: within 15 ppm/°C Noise: within 0.3 μVp-p RTI |
| A/D converter | Speed: 50 times/sec. Resolution: 16 bit (binary) |
| Min. display resolution | 1/10000 |
| Setting section | |
| Setting method | Keyboard operation (membrane switch with a key click buzzer) |
|---|---|
| Setting value storage | NOV RAM (Non-volatile RAM) |
| Setting value protection | Setting operation can be locked to prevent unauthorized modifications of default values and calibration by malfunction |
| Setting items | Tare setting, unit weight setting, near zero, high limit, Low limit, digital filter, motion detect, zero tracking, comparison setting, auto printing, counting mode select, external terminal change, balance weight value, capacity, min. scale division, zero regulation value, decimal place, count of display, gravitational acceleration, RS-232C setting, function inhibit key, setting value LOCK, quantity setting, interval border, measurement law-NTEP compliance |
| I/O section | |
| External input signal | Tare subtraction, tare subtraction reset, zero, gross/net weight change, printing ON when shorted to COM terminal by contact (relay, switch) or non contact (transistor, open collector) |
|---|---|
| External output signal | Transistor’s open collector output (Output is LO when transistor is ON) HI: Net weight>high limit set value, GO: Low limit set value <= net weight <= high limit set value, LO: Net weight < Low limit set value |
| Interface | ･ 2-wire type serial interface (SI/F standard) ･ RS-232C communication interface |
| Display section | |
| Display unit | 7 digits (fluorescent display tube), Character height; 18 mm |
|---|---|
| Display value | 5 digits -88.8.8.8, Minus sign displayed on most significant digit |
| Min. scale division | 1 to 100 |
| Decimal point | Selectable decimal place at 0/ 0.0/ 0.00/ 0.000 |
| Center zero | True zero point or the center of each value is displayed. |
| Unit display | Selectable from t, kg, g, N, lb, none (weight), pcs (quantity) |
| Quantity display | 4 digits (Unit: pcs) |
| Status display | CENTER ZERO, STAB, TARE, NET, GROSS, LOCK, ZT, ZALM, HI, GO, LO, HOLD, NZ |
| Over-scale display | Input of A/D converter overflow, Net weight over the set net value, scale capacity + 9 scale divisions, Gross weight over the set gross weight |
| General specifications | |
| Power supply voltage | AC 85 to 110 V, 102 to 132 V, 170 to 220 V, 187 to 242 V (Please specify when ordering), 50/60 Hz |
|---|---|
| Power consumption | Approx. 15 VA |
| Operating conditions | Temperature: Working temperature range -10°C to +40°C Humidity: 85% RH or less (non-condensing) |
| Dimensions | 210(W) × 165(H) × 95(D) mm (Not including projections) |
| Weight | Approx. 1.4 kg |
| Attachments | |
| AC input cord (3 m) | 1 |
|---|---|
| Spare fuse (1 A) | 1 |
| Load cell connector | 1 |
| Crimping terminal | 12 |
| Unit seal | 1 |
| Operation manual | 1 |
Optional accessories
| Model | |
| CAAC2P-B3 | AC input cord 3 m |
|---|---|
| CAAC3P-CEE7/7-B2 | AC input cord (withstand voltage: 250 V) 2 m |
| CA573Y31 | 57/14p (6-core) cable (cable end is separated) 3 m |
| CA574030 | 57/14p-PRC (6-core) cable 0.3 m |
| CN20 | Load cell connector (57 series 14p) |
| CN33 | D-Sub 9p connector for RS-232C |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
