Product outline

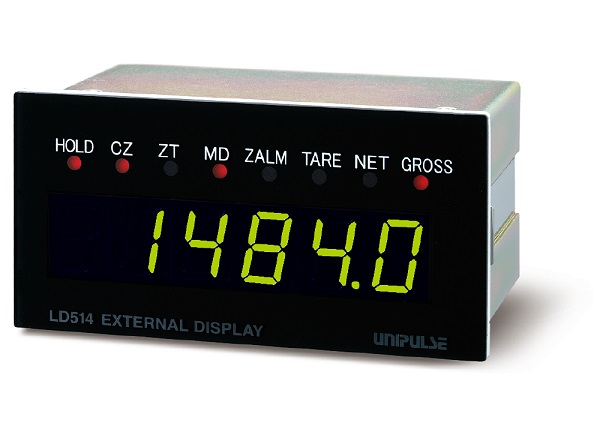

LD514 is better equipped with required functions in a body as compact as a business card. This is a display unit that can be easily placed in your desired location as an indicator with no display section or for control purposes remotely.
Specifications
Display section|Setting section|External input|General specifications|Attachments
Display section | |
Display device | Green numerical display LED |
---|---|
Display digit number | 5 digits, Character height 14 mm, 7 segments and decimal point, ±99999 (only minus sign displayed) |
Decimal point position | Interlocking with indicator |
Status display | Green 7-segment LED (1 pc) (minus sign), Red LED (8 pcs) (HOLD, CZ, ZT, MD, ZALM, TARE, NET, GROSS) |
Unit | No silk, seals included (kg/ g/ t/ N/ lb) |
Setting section | |
Setting function | Setting by rotary DIP switches |
---|---|
Numerical indicator data select | Indicator indicated value, gross weight, net weight, tare weight |
Self mode select | Display test, version display available |
Indicator select | ・ Load cell Indicator/digital indicator switching over (Status display can be switched over.) ・ Load cell Indicator follow-up display: Standard mode and LD515 compatibility mode can be switched over. |
External input | |
Interface | SIF: 2-wire type serial interface |
---|---|
External input | Hold signal |
Connector shape | ・ Cage clamp terminal block, 4pins 1…HOLD, 2…COM, 3…SI/F, 4…SI/F ・ M3 screw terminal block, 3pins 1…AC, 2…AC, 3…F.G |
General specifications | |
Power supply voltage | AC 100 to 240 V(+10% -15%), 50/60 Hz |
---|---|
Power consumption | 10 VA typ. |
Fuse used | 1 A |
Operating conditions | Working temperature range -10°C to +40°C; Storage temperature range -40 to +80°C Humidity: 85% RH or less (non-condensing) |
Dimensions | 96(W) × 48(H) × 61(D) mm |
Weight | 405 g |
Attachments | |
Power cable (3 m) | 1 |
---|---|
Mini-driver for terminal block connection | 1 |
Unit seal | 1 |
Operation manual | 1 |
Optional accessories
Model | |
CAAC2P-B3 | AC Supply cord 3m |
---|---|
CAAC3P-CEE7/7-B2 | AC Supply cord (Voltage resistance:250 V) 2 m |
