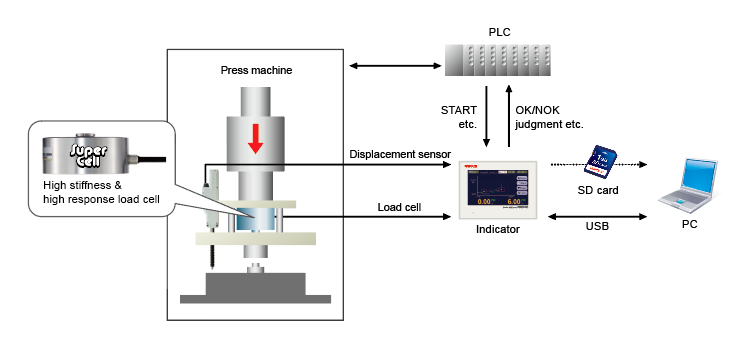

“Hardly breakable!” – load cell with an innovative concept! A strain gauge sensor with phenomenal rigidity and responsiveness.

■Capacity 100 N/ 200 N/ 500 N/ 1 kN/ 2 kN/ 5 kN/ 10 kN/ 20 kN/ 50 kN/ 100 kN/ 200 kN

■Phenomenal rigidity is achieved for a strain gauge type sensor!

■Safe overload of 500％

■High responsiveness

Lineup (100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, 200 kN))

Specifications

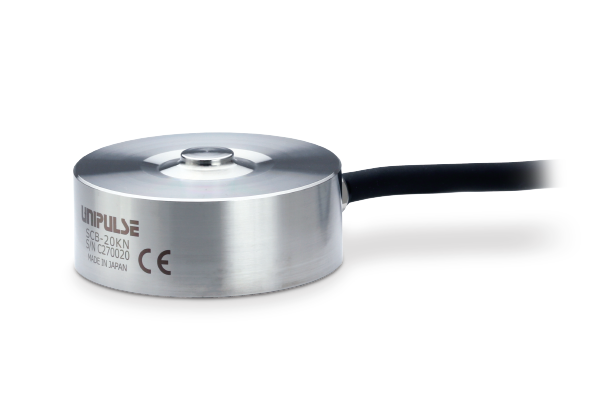

Model	SCB-□KN　　　_{□Rated capacity}
Rated capacity	100 N, 200 N, 500 N	1 kN, 2 kN, 5 kN,10 kN, 20 kN, 50 kN, 100 kN, 200 kN
Rated output	0.4 mV/V ±0.2% ^※2 *Spec Changed	0.4 mV/V±0.1%
Safe overload	500% R.C.
Zero balance	±1% R.O. *Spec Changed	±0.3% R.O. *Spec Changed
Non-linearity	0.2% or less R.O.
Hysteresis	0.2% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.015% R.O./℃ or below
Temperature effect on span	0.01% R.O./℃ or below
Input resistance	Approx. 700 Ω	Approx. 1000 Ω
Output resistance	Approx. 700 Ω	Approx. 1000 Ω
Recommended excitation voltage	5 V	10 V
Max. excitation voltage	7.5 V	15 V
Insulation resistance (DC 50 V)	1000 MΩ or more
Deflection at rated capacity	0.015 mm	1kN: 0.015 mm 2kN: 0.020 mm 5kN: 0.025 mm 10kN: 0.025 mm 20kN: 0.035 mm 50kN: 0.065 mm 100kN: 0.100 mm 200kN: 0.100 mm
Natural frequency	40 kHz	1kN, 2kN, 5kN, 10kN, 20kN: 26 kHz 50kN, 100kN: 15 kHz 200kN: 8 kHz
Loadcell material	Stainless steel
Weight	20 g	1kN, 2kN, 5kN: 130 g 10kN, 20kN: 400 g 50kN: 2.0 kg 100kN: 2.3 kg 200kN: 8.2 kg
Cable color code	＋EXC : Red ＋S : Yellow －S : Orange －EXC : Black ＋SIG : Green －SIG : White SHIELD : Blue
RoHS directives	2011/65/EU (EU)2015/863

Please note that specifications or designs may vary due to our continuous product improvement activities.
