Product outline

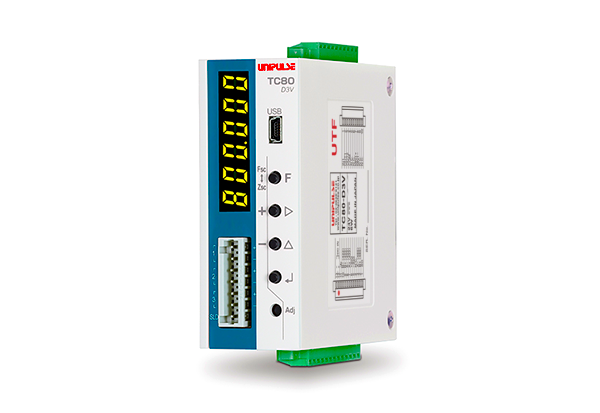

・TC80-D3V is a compact DIN-rail mount torque converter
・High-speed sampling of 16kS / s visualizes steep torque fluctuations.
・It also supports the UTM series rotary encoder option!
・3ch analog output torque, rotation speed, and angle.
・Up to 100 saved hold values can be output as data.

Lightweight and compact body to fit into limited space in a control panel

Light weight & compact body for 35mm DIN rail mount

Application software for USB interface

With communication through USB interface,
graph display, reading hold data,
setting parameters, and calibration can be done.


Specifications

Analog section
Signal input range -10 to +10V (UTMⅢ/UTF Option) Input impedance:
1MΩ or more
-5 to +5V (UTMⅡ/UTMV) Input impedance: 1MΩ or
more
Accuracy Non-linearity: within 0.02%FS±1digit
Zero drift: within 0.2mV/℃ RTI
Gain drift:within 0.01%/℃
Digital low-pass
filter
PASS,1 to 1kHz
A/D converter Rate :16000times/sec
Resolution:24bit (binary)  Approx. 1/30000 against 10V
Analog monitor output (Test point /
UTF Option)
Transmitted input voltage
Pulse input for rotation speed (open collector input/UTMⅡ/UTMV/UTMⅢ)
Max. rotation speed Depend on UTMⅡ/ UTMV/ UTMⅢ
Min. rotation speed Selectable from 15, 10, 5, 3, 2rpm (when pulse rate is 4 ppr)
Selectable from 60, 40, 20, 12, 8rpm (when pulse rate
is 1 ppr)
Min. pulse width 50μs
Circuit
configuration
No-voltage contact input (minus common)
Connectable to open collector (Ic=Approx. 10mA)
Rotation speed input for low speed(Pulse input, open collector)
Maximum input frequency Approx. 1000rpm
Minimum input frequency 0.1rpm
Minimum detection pulse width 5μs
Circuit configuration No-voltage contact input (minus common)
Open collector connectable (Ic=Approx. 10mA)
Pulse input for rotation speed (Line driver: RS-422A compliant/ UTF
option)
Max. frequency Depend on UTF
Circuit
configuration
Line driver (RS-422A compliant)
Encoder input(Pulse input) UTMⅡ/UTMⅢ Compatible with rotary encoder option

Display section
Display unit Character height 8mm
Numerical display by 7-segment green LED
Display content Switchable numeric display (torque, rotation speed,
Power/ Angle)
Display frequency Selectable from 1, 3 , 6, 13, 25 times/sec.
External signal
Output signal (2) Selectable/ configurable
Transistor’s open collector output
Vceo=30V、 Ic=50mA
Input signal (1) Selectable/ configurable
Contact (relay, switch, etc.) or non contact (transistor, photo coupler, etc.)
Input is ON when shorted to COM terminal
Interface
USB USB Interface
D3V D/A converter voltage output(3ch)
485 RS-485 Interface
422 RS-422A Interface (UTF Option)
General performance
Power supply
voltage
DC24V ±15%
Power consumption 6W typ.
Operating
conditions
Temperature: Operating temperature range: -10℃ to +50℃, Storage temperature range: -20℃ to +85℃
Humidity: 85%RH or less (non-condensing)
Dimensions 34(W)×88(H)×91(D)mm (Projections excluded)
Weight Approx. 230g
CE marking certification EMC directives EN61326-1
Attachments
Quick manual 2
Mini driver 1
Various I/O connector 3
Operating tool 1
