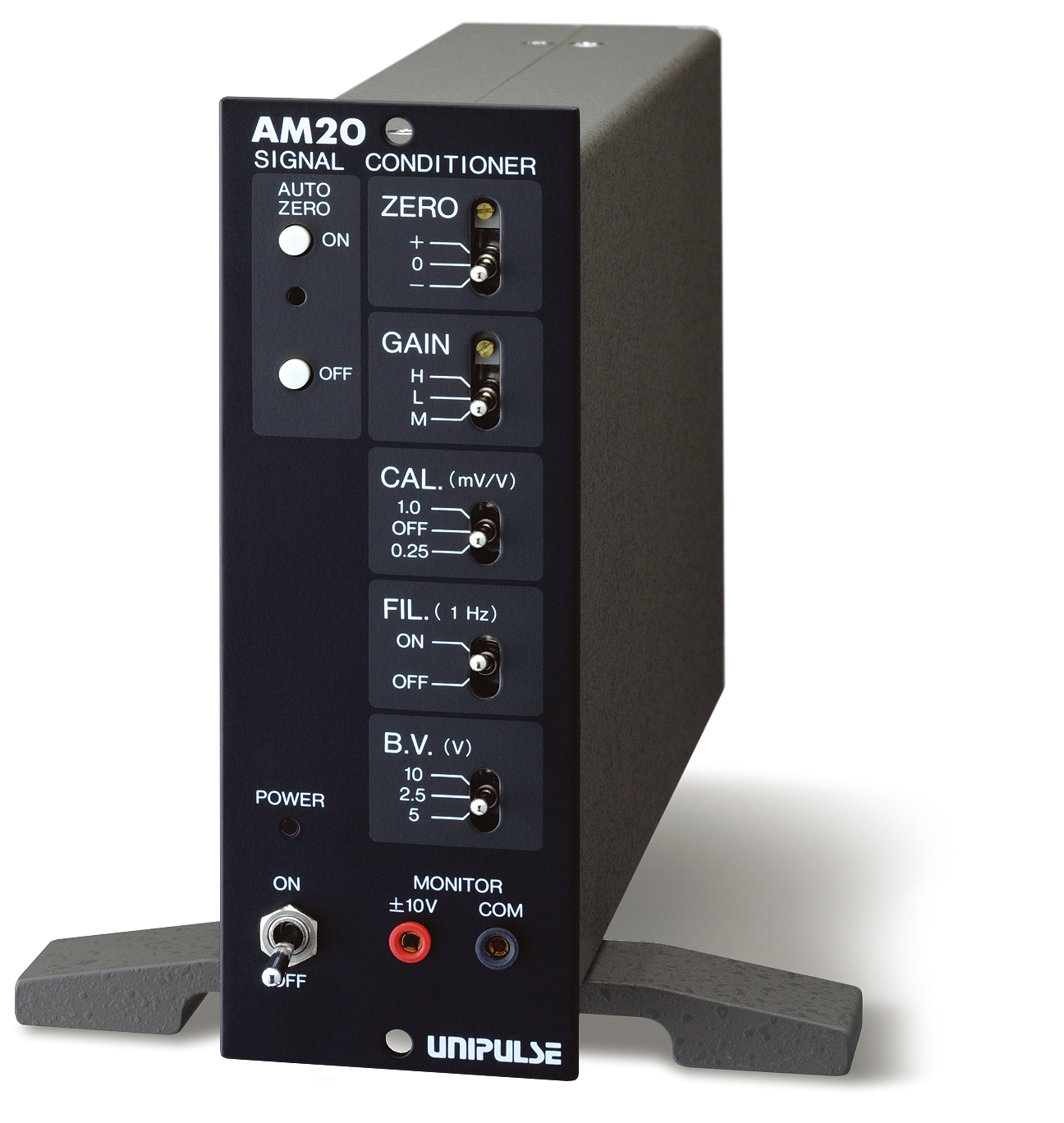

Product outline
A general-purpose DC amplifier with expanded basic functions. With built-in bridge power supply voltage for strain gauge type sensors, this is ideal for the measurement of pressure, load, torque and displacement. Because AM20AZ equipped with current output and electronic auto zero function in addition to standard voltage output is also included in our product lineup, it extends the range of applications.
Specifications
Compatible converter | Various strain gauge type sensors. Bridge resistance: 60 Ω to 2 kΩ |
---|---|
Excitation voltage | ・ Voltage: DC 10 V, 5 V, 2.5 V±5% ・ Output current: within 120 mA for 10 V, within 50 mA for other voltages |
Zero adjustment range | ±6 mV RTI ±0.6 mV/V (excitation voltage: 10 V) 20 turn trimmer potentiometer |
Gain adjustment range | Input within the range between 0.35 mV/V and 3.1 mV/V can be rating (10 V) (excitation voltage: 10 V). |
Low-pass filter | 1 Hz and PASS, Bessel type low-pass filter (-12 dB/oct.) 25 kHz/-3 dB or more responded to PASS |
Voltage output | ±10 V (within ±20 mA) |
Current output | ・ Current: 4 to 20 mA (Load resistance: 500 Ω or less) |
Output resistance | within 0.1 Ω |
Calibration voltage | 0.25 mV/V and 1 mV/V±0.1% |
Zero drift | Within 0.2 μV/°C RTI (at max. sensitivity) |
Gain drift | Within 0.01%/°C |
Noise | ・ Within 0.2 μVp-p (0.1 to 1 Hz) RTI ・ Within 15 μVp-p (full band) RTI |
Non-linearity | Within 0.005%/FS |
Excitation voltage drift | Within 0.003%/°C |
Auto zero range | ±10 V (±5 V, ±2 V, ±1 V, Please specify when ordering.) |
Resolution | 12 bit (±1/2000) |
Auto zero command | Via front panel ON/OFF switch and external control signal (negative pulse with a pulse width of 50 ms or more) |
Power supply voltage | AC 100 V±10%, 50/60 Hz, approx. 10 VA |
Operating conditions | ・ Working temperature range: 0 to +50°C ・ Storage temperature range: -40 to +85°C ・ Humidity: 80% RH or less (non-condensing) |
Dimensions | 49.5(W) × 138(H) × 180(D) mm (Not including projections) |
Weight | Approx. 1.4 kg |
Attachments | ・ AC input cord (1) ・ Spare fuse (0.5 A) (1) ・ Mini-driver (1) ・ Crimping terminal (11) ・ Operation manual (1) |
