Product outline

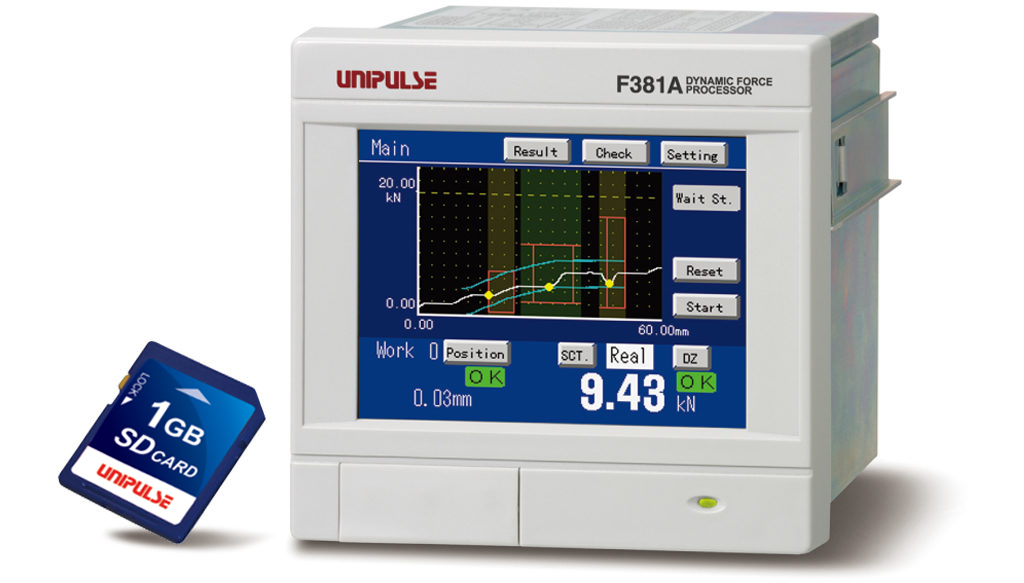

F381A is a dynamic force processor integrated with a strain gauge sensor that can display physical quantities such as pressure, load and torque in waveforms. It is able to visually capture in waveforms the fluctuations in physical quantities which are difficult to capture by only numerical values. With a 4000 times per second for high-speed processing, it is also ideal for narrow value fluctuations and comes equipped with a HI/LO limit comparison function, various hold functions and judgment function. F381A can be used in a wide-range of applications such as in control systems used in production control, automatic devices or testers.
LCD touch panel
Setting operation can be effortlessly performed by a direct touch on touch panel.
Excellent operability
F381A is no nonsense and straightforward and is made able to automatically mask non-required setting items and also to display a setting in the required sequence when that particular setting item has a specific setting sequence.
Saves measurement data in an SD card
Measurement data and set values can be logged (recorded) in the SD card. Such data can be retained as 100% recorded quality data or be used when setting up equipment or when performing cause analysis or improvement of problems. The data can be easily converted to CSV format and is therefore easily edited in Microsoft Excel or the like.
Plus common/ minus common shared sink type/ source type selectable
Its input type is combined-use plus common / minus common while its output type is selectable between sink type and source type. It can be connected to various types of external equipment such as PLCs.
4000 times/sec. high-speed processing
F381A is installed with a high-speed A/D converter and high-speed CPU that can process sensor signal input at 4000 times/sec with this, fluctuations in narrow values will not be overlooked.
Wide array of interfaces
F381A provides a wide array of interfaces to give flexibility in system networking. As starters, there is the Ethernet and the proven RS-232C that can provide a direct link to site PLCs such as the OMRON DeviceNet or the MITSUBISHI CC-Link without the need for any bridging devices.

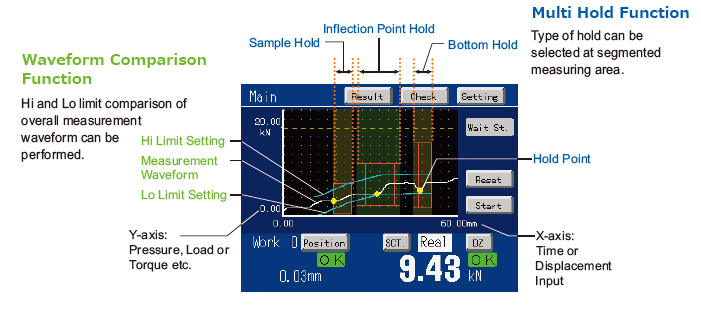

Comparison & hold function by waveform display
These functions are used to judge the acceptability of measurement waveforms. Depending on type of applications, Waveform Comparison Function and Multi Hold Function can be jointly utilized for judgment.
Waveform comparison function
This function compares the actually measurement waveform against the setup Hi/Lo limit waveforms and will give out an NG judgment when any of the point exceeded the set Hi/Lo limit waveforms. As it compares the measurement waveform in overall, accurate judgment can be made even in applications that are unable to narrow down its judgment.
In respect to the measurement waveform, the setup Hi/Lo limit waveforms can be set to relative displacement. When reference point is set at displacement or time, the set waveform will be in relative displacement at the load reference point of the measurement waveform.
Multi hold function
After the measuring area is divided, judgment can be carried out while type of hold (sample, peak, valley, P-P, Average, max, min, inflection point, End displacement) is interchanged at will. It is capable in specifying Hi limit value, Lo limit value and type of hold at each interval. Multiple point judgment is available through its processes such as detection of inhibit timer soon after the start of insertion and judgment of load before finishing insertion process via Inflection Point Hold.
Displacement input as a standard equipment
It performs 2-dimensional waveform comparison & multi hold through its dual input from the displacement sensor and strain gauge sensor. On X-axis, voltage or pulse input can be connected while on Y-axis, strain gauge sensor can be connected. This is highly effective for applications which are difficult to control only by time factor such as the control for pressing time of press machines and for the imposing time on works with indivisual differences.
* When nothing is connected with X axis, Waveform Comparison & Multi Hold by the time series can be done.
* The voltage input is an option.
Comparison results display
The comparison results of Waveform Comparison Function and Multi Hold Function can be verified on the display.【Result(List)】(An individual display) and 【Result(Single)】(a list display) to selection is possible. (Latest 40 data)
Names and works of each parts
Application example
Specifications
Sensor input for load|Display|Measurement functions|External signal|SD card|Interface|Option|General specification
Sensor input for load (strain gauge input fixed) | |
Excitation voltage | DC 10 or 2.5 V±10% (Depending on setting) Output current: within 30 mA |
---|---|
Signal input range | -3.0 mV/V to +3.0 mV/V |
Accuracy | Non-linearity: within 0.02%/FS±1 digit (at 3.0 mV/V input) Zero drift: within 0.5 μV/℃ RTI Gain drift: within 0.01%/℃ |
Analog filter | Low pass filter (-6 dB/oct.) Selectable at 10, 30, 100, 300 Hz |
A/D converter | Speed: 4000 times/sec. Resolution: 24 bit (binary) Effective resolution: Approx. 1/30000 – 3.0 mV/V |
Analog voltage output | Output level: Approx. 2 V per 1.0 mV/V input Load resistance: 2 KΩ or more |
Sensor input for displacement (Standard: pulse input open collector) Option: Pulse Input (Line Driver [LDI]) |
|
Maximum input frequency | 50 kHz |
---|---|
Internal counting range | Approx. 1,000,000 |
Adaptable sensor | Output: Incremental type 2-phase output (A/B signal output) Also capable of single-phase output (A-phase input used. All pulses are counted as in the plus direction.) Output stage circuit specification: open collector (NPN type, Vceo = 30 V or more, Ic = 30 mA or more) Output stage circuit specification(LDI): Line driver(Based on RS-422) |
Sensor input for displacement (option: voltage input [VIN]) | |
Signal input range | -5 V to +5 V |
---|---|
Input resistance | Approx. 10 MΩ |
Zero adjustment range | -5 to +5 V Automatic adjustment by digital processing |
Equivalent input calibration range | -5 to -1 V, +1 to +5 V |
Equivalent input calibration error | Within 0.1% FS |
Actual calibration range | -5 to +5 V * In Approx. −0.01 to +0.01 V, a zero calibration point to calibration is impossible. |
Accuracy | Non-linearity: within 0.02%/FS±1 digit (at 5 V input) Zero drift: within 50 μV/℃ RTI Gain drift: within 0.02%/℃ |
Analog filter | Low-pass filter (-6 dB/oct) Selectable from 10, 30, 100, and 300 Hz. |
A/D converter | Speed: 4000 times/sec. Resolution: 24 bits (binary) Effective resolution: Approx. 1/30000 to 5 V |
Display section | |
Display unit | TFT color LCD module Display area: 71(W) × 53(H) mm Dot structure: 320 × 240 dot |
---|---|
Indicated value | Load: -9999 to +9999 Displacement: -9999 to +32000 Decimal point:Selectable display position from 0.000, 0.00, 0.0, 0 |
Number of display times | Fixed at 3 times/sec. |
Measurement functions | |
Multihold mode 16 ch (setting values can be stored) | Measuring range can be segmented and changeover to any hold for judgment can be performed. Sample, Peak, Bottom, P-P, Relative Maximum, Relative Minimum, Inflection Point, Average, End Displacement |
---|---|
Waveform comparison mode 16 ch (setting values can be stored) | Compares the actually measured waveform against the preset Hi / Lo waveforms. The overall measured waveform will be compared against thepreset Hi / Lo and if any of its points exceeds the preset waveform, then the measured waveform will be NG. |
External signal | |
Output signals 16 points |
Output type:Sink type/ Source type selectable. (Source type is optional [ISC].) Output transistor ON at signal ON. To connect an input unit like a PLC, connect plus common for sink type, and minus common for source type. Rated voltage: 30 V, Rated current: 30 mA Isolation: Photocoupler |
---|---|
Input signals 16 points |
Input type: Plus common/ Minus common shared To connect a transistor, connect NPN output type (sink type) for plus common and PNP output type (source type) for minus common. ON Voltage: 12 V or more, OFF Voltage: 3 V or less, At 24 V load: approx. 5 mA Isolation: Photocoupler |
SD card | |
SD card slot | All parameters can be preserved and reconstructed. All comparison waveforms can be preserved and reconstructed. Measurement waveforms and judgment points can automatically be preserved. * An SD card of 1 GByte is attached. 1 MByte for storage capacity of up to 80 waveforms. |
---|
Interface (Only one interface option can be installed.) |
|
[232] RS-232C communication interface |
Start/stop system Baud rate: 1200 bps to 38400 bps All parameters can be read and written. All comparison waveforms can be read and written. Measurement waveforms and judgment points can be read. |
---|---|
[ODN] DeviceNet interface (option) |
Connectable with DeviceNet-compliant OMRON CompoBus/D seamlessly. All parameters can be read and written. All comparison waveforms can be read and written. Measurement waveforms and judgment points can be read. |
[CCL] CC-Link interface (option) |
Directly linkable with a Mitsubishi (multipurpose) sequencer. All parameters can be read and written. Judgment points can be read. |
[ETN] Ethernet interface (option) |
All parameters can be read and written. Measurement waveforms and judgment points can be read. |
Option | |
[LDI] Pulse input (line driver) |
It can be connected with Line driver output-type sensor (Incremental type) in accordance with RS-422 like the contact-type, eddy current-type or laser-type etc.. |
---|---|
[VIN] Voltage input |
±5 V voltage output type sensor of the contact type, eddy current type, laser type, etc., can be connected. |
[ISC] I/O sourrce boad |
Output type: sourrce type To connect an input unit like a PLC, connect minus common. |
General specifications | |
Power supply voltage | DC 24 V (±15%) |
---|---|
Power consumption | 6 W typ. |
Inrush current (Typ.) | 2 A, 10 msec (at room temperature, cold-start) |
Operating conditions | Operating temperature range: -10 to +40℃, Storage temperature range: -20 to +60℃ Humidity: 85% RH or less (non-condensing) |
Dimensions | 96(W) × 96(H) × 117.3(D) mm (Not including projections) |
Weight | Approx. 1.0 kg |
CE marking certification | EMC Directives EN61326-1 |
Attachments
Attachments | |
FCN series I/O connector (with cover) | 1 |
---|---|
Operation Manual | 1 |
Analogue I/O connector terminal block (Already mounted on the main unit) |
1 |
DeviceNet connector (when DeviceNet option is selected) | 1 |
CC-Link connector (when CC-Link option is selected) | 1 |
Optional accessories
Model | |
DTC1 | Case for F381A (with AC power supply) |
---|---|
SD1G | SD card 1 GByte |
SD2G | SD card 2 GByte |
CA81-232X | miniDIN-D-Sub9p cross cable |
CN52 | FCN series I/O connector (with cover) |
CN57 | FCN series I/O connector (with diagonal cover) |
CN60 | Circular DIN 8p connector for RS-232C |
CN71 | CC-Link connector |
CN72 | Double row connector for CC-Link |
CN81 | Analog I/O connector terminal (Same accessory as the attached one) |
CND01 | DeviceNet connector |
GMP96×96 | Rubber packing |
TSU03 | DC lighting surge unit |
