Product outline
F805AT adopts a color LCD touch panel which enables simple and comfortable operation by greatly enhancing the visibility of weight display, various setting values display and status display. It provides high-speed A/D conversion and digital processing capability at an operating speed of 1000 times/sec There are substantial interfaces that allow direct connection to major PLCs including OMRON DeviceNet and MITSUBISHI CC-Link. F805AT, which was developed specifically for weighing systems, is a full-fledged device of an all-in-one type that deserves to be called the top-of-the-line Weighing indicator.
Specifications
Analog section｜Setting section｜I/O section｜Interface｜Display section｜General specifications｜Attachments
| Analog section | |
| Excitation voltage | 10 V or 5 V DC±5% (depending on settings), Output current; within 120 mA, remote sense type (Up to 4 350 Ω load cells can be connected in parallel.) |
|---|---|
| Zero adjustment range | 0 to approx. 2 mV/V Rough adjustment:Digitally controlled by rough adjustment circuit. Fine adjustment: Automatic adjustment by digital processing. |
| Span adjustment range | 0.3 to 2.0 mV/V Rough adjustment:Digitally controlled by rough adjustment circuit. Fine adjustment: Automatic adjustment by digital processing. |
| Min. input sensitivity | 0.3 μV/count (Legal for Trade), 0.075 μV/count expanded |
| Accuracy | Non-linearity: within 0.01%/FS (Typ: 0.005%/FS at room temperature) Zero drift: within 0.1 μV/°C RTI (Typ: 0.08 μV/°C) Gain drift: within 15 ppm/°C (Typ: 5 ppm/°C) Noise: within 0.1 μVp-p RTI (0.1 to 10 Hz) |
| Analog filter | Bessel low-pass filter (-12 dB/oct.) Selectable from 2, 4, 6, 8 Hz |
| A/D converter | Speed: 1000 times/sec (Convertible to 200 times/sec.) Resolution: 16 bit (binary) |
| Min. display resolution | 1/10000 (at valid 1/4 scale division), 1/40000 (at invalid 1/4 scale division) |
| Secondary calibration | Equivalent input calibration method that allows calibration by simply key-inputting the rated value of a sensor without applying an actual load Min. calibration resolution at secondary calibration (1/1000 at room temperature) |
| Setting section | |
| Setting method | – Setting by touch panel operation – Setting from host computer via RS-232C is also possible |
|---|---|
| Setting value storage | – Default: NOV RAM (nonvolatile RAM) – Other setting values: C-MOS RAM with backup of a lithium battery (Depends on usage conditions and storing environment, but memory can be kept for approx. 7 years or more.) |
| Setting value protection | Setting operation can be locked to prevent unauthorized modifications of default values and calibration by malfunction (LOCK) |
| I/O section | |
| External Output signal (16) |
– Logic: Transistor’s open collector output (Emitter = COM terminal); Output is LO when transistor is ON. – Near zero, SP1, SP2, SP3, Under, go, over, comp, discharge, Low limit, high limit, stable, weight alarm, error, final error, run or total limit External signal input |
|---|---|
| External Input signal (24) |
– Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.). – Gross/Net weight change, Digital zero, Tare off, Tare reset, Hold or judge, Feed/discharge change, Accumulation command, Accumulation clear, Start, Stop, Discharge command, Code No. designation, Forced-discharge command, Discharge gate open, Discharge gate close, Code No. designation selection, Graph drawing |
| Weighing code selection input | BCD 2 digits (00 to 99), 100 codes |
| Interface | |
| SIF | 2-wire type serial interface (standard) |
|---|---|
| SI2 | 2-wire high speed bidirection serial interface (standard) |
| 232 | RS-232C communication interface (standard) |
| BCO | BCD parallel data output interface (Option) |
| BCI | BCD parallel data input interface (Option) |
| 485 | RS-485 communication interface (Option)* |
| DAC | D/A converter interface (Option) |
| ODN | DeviceNet interface (Option)* |
| CCL | CC-Link interface (Option)* |
Interface option: Up to 4 options allowable.
Serial communication interface (*) is 1 option only.
| Display section | |
| Display unit | TFT color LCD (Display area 115 (W) x 86 (H) [mm], 320 x 240 dot |
|---|---|
| display | 5 digits, Signs: Minus sign on most significant digit |
| Unit Selectable | t, kg, g, N, lb, none |
| Decimal point | Selectable 0, 0.0, 0.00, 0.000 |
| Display frequency | Selectable from 3, 6, 13, 25 times/sec (System speed is 200 times/sec or 1000 times/sec. (depending on settings)) |
| Scale capacity | 5-digit numerical values (up to 99999) |
| Over display | LOAD: A/D converter input over, OFL1: Net weight > Net over set value (5-digit setting), OFL2: Gross weight > Capacity +9 scale divisions, OFL3: Gross weight > Gross over set value (5-digit setting) |
| Center zero | True zero point (0±1/4 scale) or the center of each value is displayed |
| Status display | LOCK, HOLD, ZALM, STAB, TARE, RUN, HI, LO, NZ, SP1, SP2, SP3, OVER, GO, UNDER, COMPL, DCHG |
| Set value display | CODE, FINAL, OVER, UNDER, BEFORE FINAL, FF |
| Accumulation display | Accumulation times (4 digits), Accumulation value (9 digits) |
| No. display | Alarm No. (2 digits): Error No. in sequence control Sequence No. (3 digits): Process No. in sequence control |
| General specifications | |
| Power supply voltage | AC 100 to 240 V (+10% -15%) (Free power supply 50/60 Hz) DC 12 to 24 V (±15%) (For DC, please specify when ordering) |
|---|---|
| Power consumption | 8 W typ. |
| Inrush current (Type) | 15 A, 5 msec: 100 V AC average load condition (cold start at room temperature) 30 A, 5 msec: 200 V AC average load condition (cold start at room temperature) 10 A, 0.5 msec: 12 V DC average load condition (cold start at room temperature) 35 A, 0.4 msec: 24 V DC average load condition (cold start at room temperature) |
| Operating conditions | Operating temperature range: -10 to +40°C; Storage temperature range: -20 to +60°C Humidity: within 85% RH (non-condensing) |
| External dimension | 174(W) × 135(H) × 159(D) mm (Not including projections) |
| Weight | Approx. 2.3kg |
| CE marking certification | EMC directives EN61326-1 Safety standard EN61010-1, EN62311 (Please specify requirement for CE marking certified product when making your order) (DC power supply is not certificationed to CE Marking.) |
| Attachments | |
| AC Supply cord *1 (Nominal rating 125 V) 2 m | 1 |
|---|---|
| AC input cord converter plug *1 *2 | 1 |
| Mini driver | 1 |
| Load cell connector (JR connector) | 1 |
| 57 series 50p connector | 1 |
| Ferrite core *2 | 2 |
| Operation Manual | 1 |
| BCD output connector (when BCD output option is selected) | 1 |
| BCD input connector (when BCD input option is selected) | 1 |
| D/A converter connector (when D/A converter option is selected) | 1 |
| DeviceNet connector (when DeviceNet option is selected) | 1 |
| CC-link connector (when CC-Link option is selected) | 1 |
*1 To be attached only for AC power supply specification.
*2 Attached only in products with CE marking.

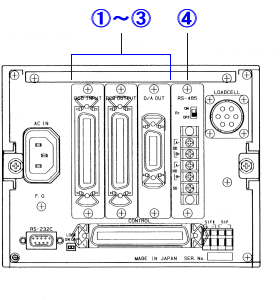

Option
|
Model
|
Interface
|
Slots installed
|
| BCO | BCD parallel data output interface (General-purpose slot option…3 slots installed (① to ③below)) |
1 to 3 |
|---|---|---|
| BCI | BCD parallel data input interface (General-purpose slot option…3 slots installed (① to ③below) |
1 to 3 |
| DAC | D/A converter interface (General-purpose slot option…3 slots installed (① to ③below)) |
1 to 3 |
| 485 | RS-485 communication interface (Advanced communication slot option…1 slot installed (④ below)) |
4 |
| ODN | DeviceNet interface (Advanced communication slot option…1 slot installed (④ below)) |
4 |
| CCL | CC-Link interface (Advanced communication slot option…1 slot installed (④ below)) |
4 |
Optional accessories
|
Model
|
Description
|
| CAAC2P-P2 | AC input cord 2 m(F805A) |
|---|---|
| CAAC3P-P2 | AC input cord 2 m(F805ACE) |
| CAAC3P-CEE7/7-P1.5 | AC input cord (voltage resistance: 250 V) 1.5 m |
| CA4131 | (6-wired) cable with JR connector at one end 3 m |
| CA4230 | JR-PRC (6-wired) conversion relay cable 0.3 m |
| CA4311 | JR-PRC (6-wired) conversion relay cable 1 m (4-wired to 6-wired) (for 520 A use) |
| CN3P-2P | 3P-2P converter plug for AC input cord |
| CN10 | Load cell connector (JR connector) |
| CN20 | D/A converter connector |
| CN21 | BCD input/output connector |
| CN22 | 57 series 50p connector for external I/O |
| CN34 | D-Sub 9p connector for RS-232C |
| CN71 | CC-Link connector |
| CN72 | Double row connector for CC-Link |
| CND01 | DeviceNet connector |
| GMP165×130 | Rubber packing |
| TSU02 | Lightning surge unit |
| TSU03 | DC lightning surge unit |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

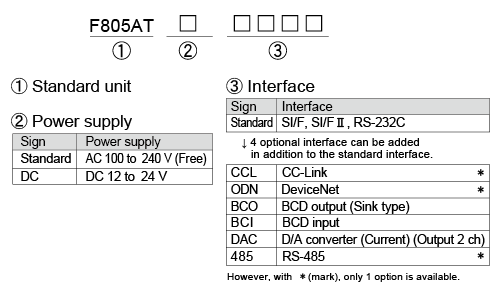

Structure of product code
