Product outline

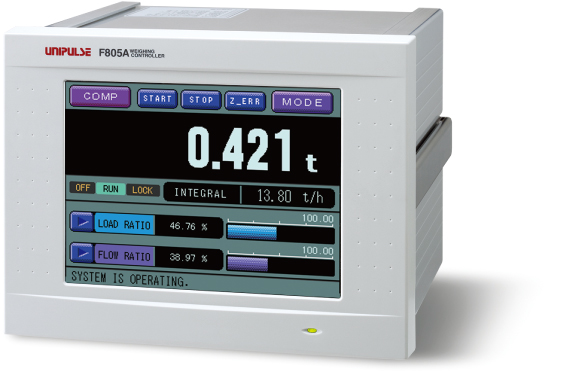

A weighing controller developed for belt scales. The weight of raw material can be weighed while being transferred on belt conveyors. Feed rate, total, weight density, load ratio, etc., can be displayed and output by the input of a weight signal sent by the leadcell and the speed signal sent by the speed detector installed under the conveyor. In addition, flow can be controlled by setting the target value.
- Pulse input function
- Accumulated pulse output function
- Zero/span compensation function
- Graphic function
- Moisture content compensation function (Water content ratio can be set to compensate the total.)
- Alarm output
Interface
Model
|
Interface
|
Remarks
|
---|---|---|
SIF | 2-wire type serial interface | Standard |
SI2 | 2-wire type bi-directional serial interface | Standard |
232 | RS-232C communication interface | Standard |
BCO | BCD parallel data output interface | Option |
BCI | BCD parallel data input interface | Option |
485 | RS-485 communication interface | Option |
DAC | D/A converter interface | Standard |
ANA | Analog I/O interface | Option |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
