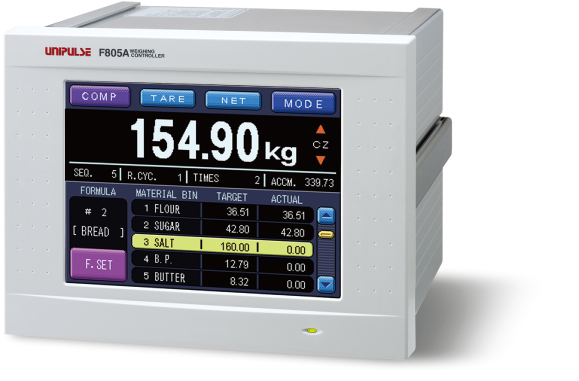

F805AT-FB
Slider

Product outline Download

Please specify requirement for CE marking certified product when making your order.


Product outline

A weighing indicator developed for formula batch weighing.

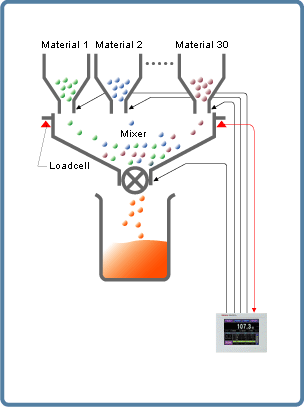

A maximum of 200 types of formula and 100 types of raw materials can be pre-registered by switching over from feeding and discharging to allow automatic weighing.

  • Registration of 200 types of formula and 100 types of raw materials
  • A maximum of 30 types of raw materials for each formula can be pre-registered
  • Process from weighing to discharging of each raw material is automated
  • Function of displaying the numbers of raw materials being weighed
  • Names for raw materials and formula are displayed in kana or kanji characters
  • Timer control function
  • Function of refilling when weight is under fixed quantity (Auto / Manual)
  • Function of power cut security
  • Weighing status message function



Interface

Model
Interface
Remarks
SIF 2-wire type serial interface Standard
SI2 2-wire type bi-directional serial interface Standard
232 RS-232C communication interface Standard
BCO BCD parallel data output interface Option
BC2 BCD parallel data output interface 2 Standard
BCI BCD parallel data intput interface Option
485 RS-485 communication interface Option
DAC D/A converter interfac Option


Download

Product catalogue(PDF)
GC2015_F805AT-FB(347 KB)
Operation manual(PDF)
F805AT-FB Rev.1.02(3 MB)
External dimention
DXF
(ZIP)
PDF
Support tools
Software
  • User registration is required to download operation manuals, external dimentions, support tools and software.
  • Acrobat Reader software from Adobe Systems is required to view PDF files.
