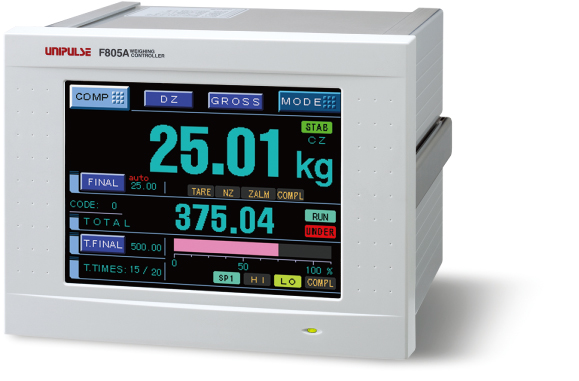

F805AT-MD
Slider

Product outline Download

Please specify requirement for CE marking certified product when making your order.


Product outline

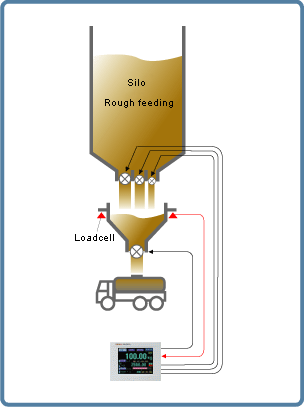

A weighing controller developed for multi draft weighing.
Powerful when used in heavy weighing work with small weighing scale.
Each control function such as a rough feeding auto switch over and judgment condition can be suitably combined for “speedy” and “low-count yet effective” weighing.

  • Rough feeding auto switch over (Rough charging and SP1/SP2/SP3 are automatically switched over by total.)
  • Automatic calculation of batch count
  • Graphic function
  • Compensation weighing function (The ratio of remaining quantity to total final is monitored and Final of each batch is automatically compensated according to the accuracy of the weighing device.)



Interface

Model
Interface
Remarks
SIF 2-wire type serial interface Standard
SI2 2-wire type bi-directional serial interface Standard
232 RS-232C communication interface Standard
BCO BCD parallel data output interface Option
BCI BCD parallel data input interface Option
485 RS-485 communication interface Option
DAC D/A converter interface Option


Download

Product catalogue(PDF)
GC2015_F805AT-MD(207 KB)
Operation manual(PDF)
F805AT-MD Rev.1.02(3 MB)
External dimention
DXF
(ZIP)
PDF
Support tools
Software
  • User registration is required to download operation manuals, external dimentions, support tools and software.
  • Acrobat Reader software from Adobe Systems is required to view PDF files.
