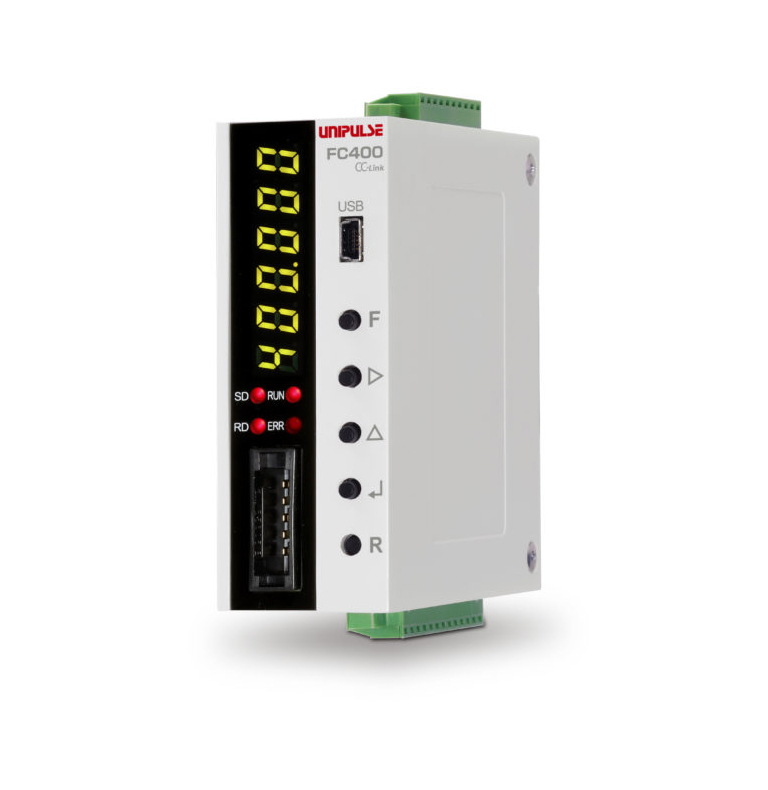

Product outline

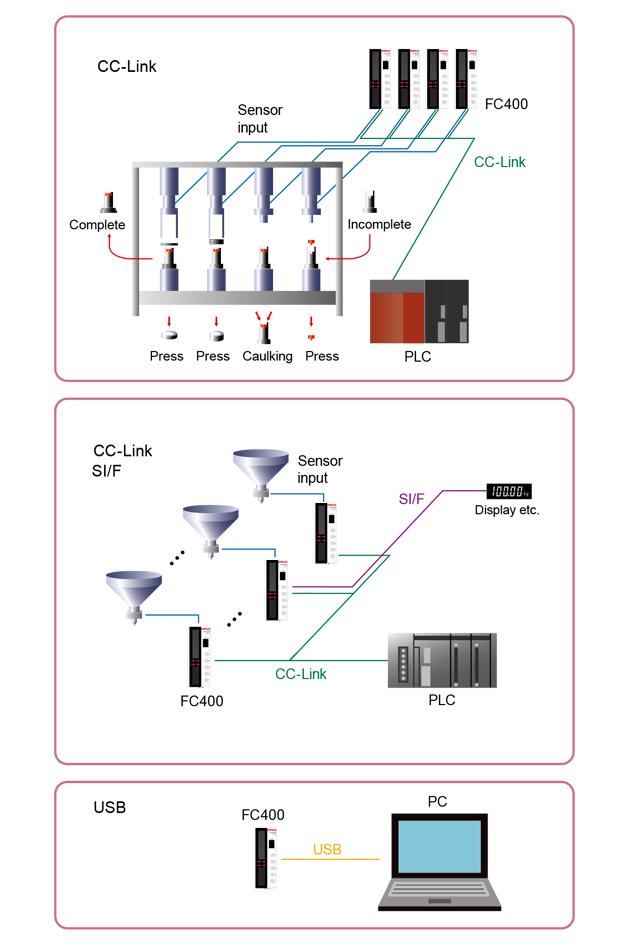

A measurement system can be configured easily using CC-Link network.
It has displayable graph in the pc software, and setup can be done easily.
High sampling rate & resolution
High-Speed A/D conversion and powerful digital processing capability of 2400 times/sec.. High display resolution of 1/100000 (max).
Measurement can be performed quickly and precisely due to high speed A/D conversion.

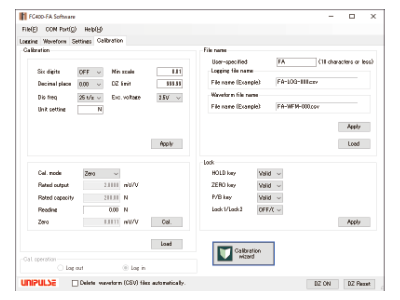

Application software for USB interface
With communication through USB interface, logging, graph, display, setting parameters, and calibration can be done.

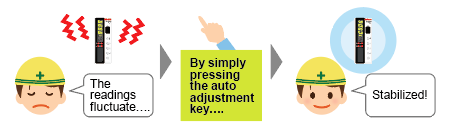

High performance filter & Auto filter adjustment
With combination of low pass filter (0.1 to 600 Hz) which corresponds to various vibration and moving average filter (OFF, 2 to 999) that is effective for periodic vibration, automatic searching for optimal value with accuracy and stability can be achieved. (You can manually adjust settings too).

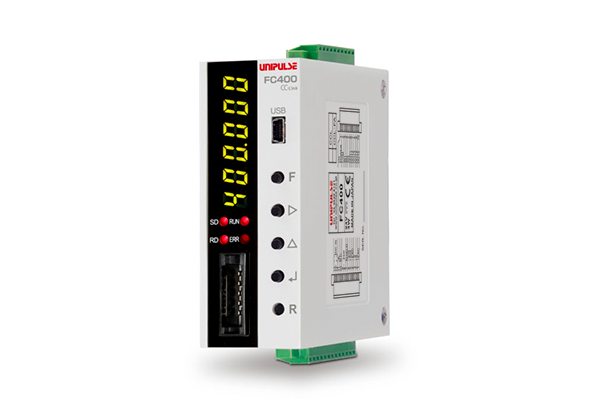

Lightweight and compact body to fit into limited space in a control panel
Light weight & compact body for 35 mm DIN rail mount
Dimensions: 34(W)×88(H)×91(D) mm (Projections excluded)
Weight: Approx. 230 g
Various interfaces
Load cell signal level display (-3.9 mV/V to 3.9 mV/V)
The output signal level of load cell can be displayed in mV/V for monitor purpose.
Malfunction indicator or faulty sensor can be differentiated easily.
6 digit display
24 bit A/D convertor enables 6 digit display.
Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of load cells.
Digital peak hold, Hi & Lo judgement
It can quickly capture any changes in high-speed phenomenon, and perform OK / NOK judgement.
Specifications
Analog section|Display section|Hold functions|External signal|Interface|General specifications|Attachments
Analog section | |
Excitation voltage |
DC 5 V±5% Output current: 90 mA DC 2.5 V±5% Output current: 45 mA (depending on settings) Ratiometric method (Up to 6 350 Ω load cells can be connected in parallel) |
---|---|
Signal input range | -3.9 to 3.9 mV/V |
Zero adjustment range | Automatic adjustment by digital processing -3.0 to 3.0 mV/V |
Span adjustment range | Automatic adjustment by digital processing 0.01 to 3.8 mV/V |
Min. input sensitivity | 0.15 μV/count |
Accuracy | Non-linearity: within 0.01% FS Zero drift: 0.0002% FS/℃ Typ. Gain drift: 1 ppm/℃ Typ. |
Filter | Digital low-pass filter: 0.1 to 600 Hz Moving average filter: OFF, 2 to 999 times |
A/D converter | Speed: 2400 times/sec. Resolution: 24 bit (binary) |
Display section | |
Display unit | Character height 8mm, Numerical display by 7-segment green LED |
---|---|
Display value | Up to 6 digits |
Display frequency | Selectable from 1,3, 6, 13, 25 times/sec. |
Status display | RUN, SD, RD, ERR |
Hold functions | |
Hold | Sample, Peak, Bottom, Peak & Bottom, Average |
---|
External signal | |
Output signal (5) | Transistor’s open collector output Vceo = 30 V, Ic = 50 mA |
---|---|
Input signal (3) | Selectable/configurable Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.). * DC 24 V external power supply is required. |
Interface | |
USB | USB interface |
---|---|
CCL | CC-Link interface |
SIF | SI/F 2-wire type serial interface |
General specifications | |
Power supply voltage | DC 24 V(±15%) |
---|---|
Power consumption | 4 W typ. |
Operating conditions | Operating temperature range: -10℃ to +50℃, Storage temperature range: -20℃ to +85℃ Humidity: 85% RH or less (non-condensing) |
Dimensions | 34(W) × 88(H) × 91(D) mm (Not including projections) |
Weight | Approx. 210 g |
CE marking certification | EMC Directives EN61326-1 |
Attachments | |
Quick manual | 2 |
---|---|
Jumper wire | 2 |
Mini driver | 1 |
CC-Link connector | 1 |
Various I/O connector | 2 |
