Product outline

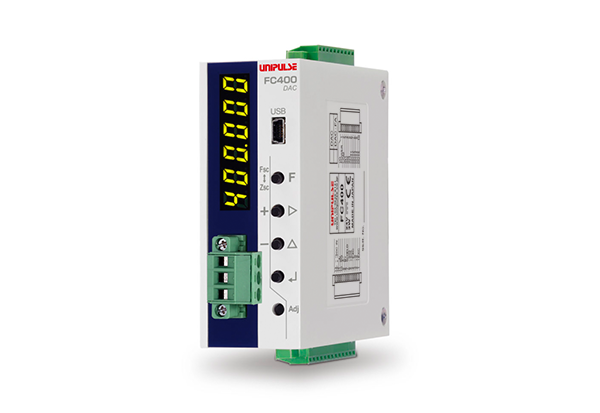

FC400-DAC is a compact weighing Indicator with D/A converter.
It is suitable for many weighing applications such as hopper scale, packing scale, weight level meter, etc….
Either voltage or current output, corresponding to the indicated value, is available.
It can be fit into a limited space!

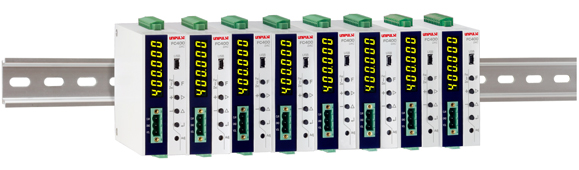

Light weight & compact body for 35 mm DIN rail mount.
External dimension: 34(W) × 88(H) × 91(D) mm (Not including projection)
Weight: Approx. 210 g

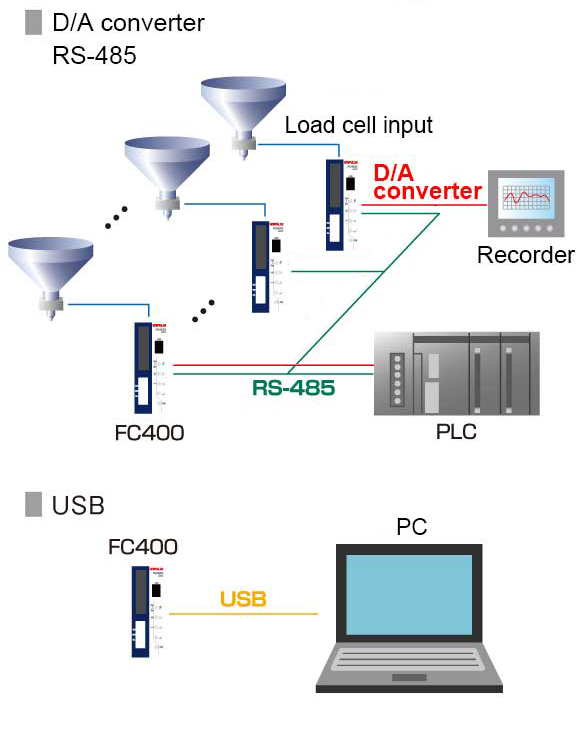

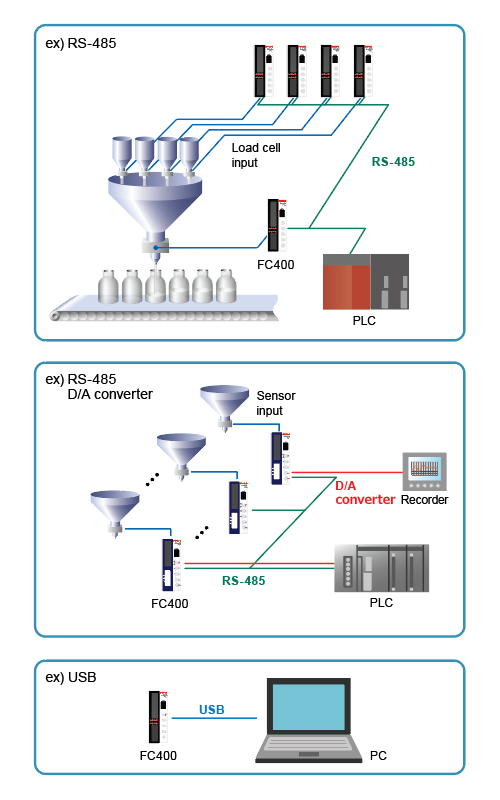

Various interface
Equipped as standard with D/A converter, RS-485 , and USB interface.

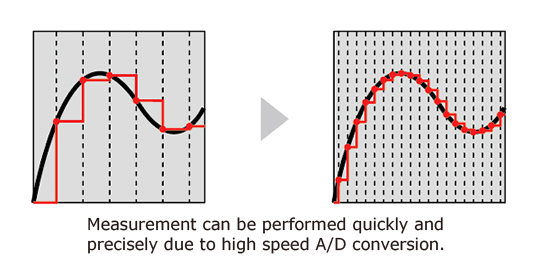

High-speed sampling & high resolution
& high display resolution capability of 1/100000.
Various features
■ High-performance filter
With the powerful filter against noise, high-speed an high-accuracy weighing can be achieved.
■ Auto filter adjustment
The filter is automatically adjusted to reduce the noise when the auto adjustment key is pressed.
■ Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of the load cell(s).
■ Multipoint calibration (linearization)
Three additional points can be defined in the middle between zero and span to improve the linearity.
■ Input conversion value display
The output signal level of the connected load cell can be displayed in mV/V/ for monitor purpose.
■ Basic weighing process control function
Sequential control can be performed without external devices like PLC.
Specifications
Analog section|Display section|External signal|Interface|General specifications|Attachments
Analog section | |
Excitation voltage | DC 5 V±5% Output current: 90 mA DC 2.5 V±5% Output current: 45 mA(depending on settings) Ratiometric method (up to six 350 Ω load cells can be connected in parallel) |
---|---|
Signal input range | -2.5 to 5.1 mV/V |
Zero adjustment range | Automatic adjustment by digital processing: -0.5 to 2.0 mV/V |
Gain adjustment range |
Automatic adjustment by digital processing: 0.01 to 3.0 mV/V |
Linearization function | Up to three point multi-point calibration is possible using linearization function |
Minimum input sensitivity | 0.15 μV/count |
Accuracy | Non-linearity: within 0.01% FS Zero drift: 0.0002% FS/℃ Typ. Gain drift: 1 ppm/℃ Typ. |
Filter | Digital low-pass filter: 0.1 to 300 Hz Moving average filter: OFF, 2 to 512 times |
A/D converter | Speed: 1200 times/sec. Resolution: 24 bit(binary) |
Display section | |
Display unit | Character height 8 mm Numerical display by 7-segment green LED |
---|---|
Indicated value | UP to 6 digits |
Refresh rate | Selectable from 1, 3, 6, 13, or 25 times/sec. |
External signal | |
External output (5) |
Transistor open collector output. Vceo = 30 V,Ic = 50 mA |
---|---|
External input (3) |
Selectable inputs. Either contact type (relay, switch etc.) or non-contact type (transistor, photocoupler etc.. ) can be connected. ON when short-circuited with COM. * The external power supply (DC 24 V) needs to be prepared by user. |
Interface | |
USB | USB interface |
---|---|
485 | RS-485 communication interface (select either Modbus-RTU or UNI format) |
DAC | D/A converter (select either voltage or current output) |
General specifications | |
Operating voltage | DC 24 V (±15%) |
---|---|
Power consumption | 3 W typ. |
Operation condition | Operating temperature range: -10℃ to +50℃. Storage temperature range: -20℃ to +85℃ Humidity: 85% RH or less (non-condensing) |
Dimensions | 34(W) × 88(H) × 91(D) mm (Not including protrusions) |
Weight | Approx. 210 g |
CE marking certification | EMC Directives EN61326-1 |
Attachments | |
Jumper wire | 2 |
---|---|
Mini driver | 1 |
Various I/O connector | 3 |
Quick manual | 2 |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
