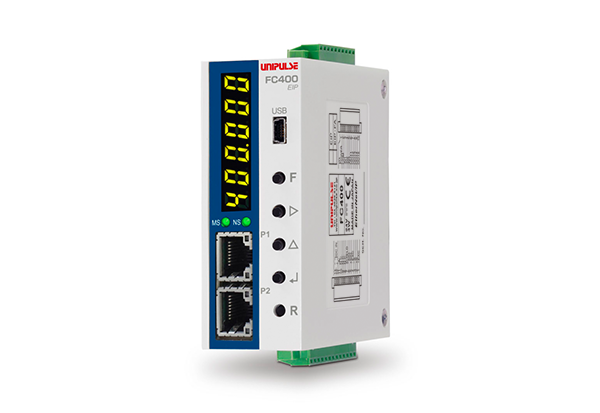

FC400-EIP is a compact type indicator equipped with EtherNet/IP & USB as standard features.

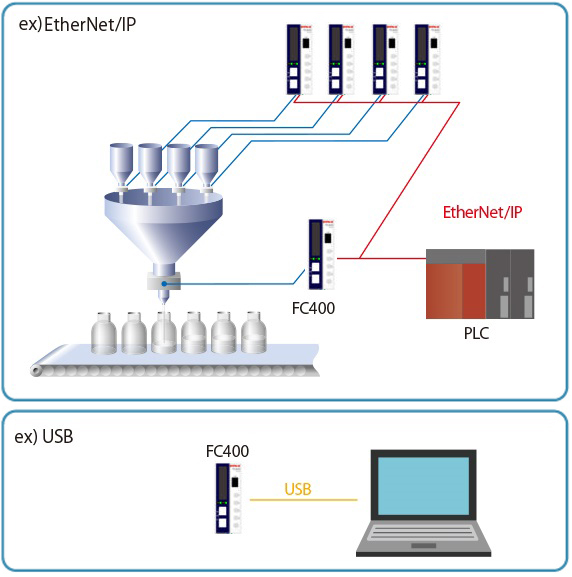

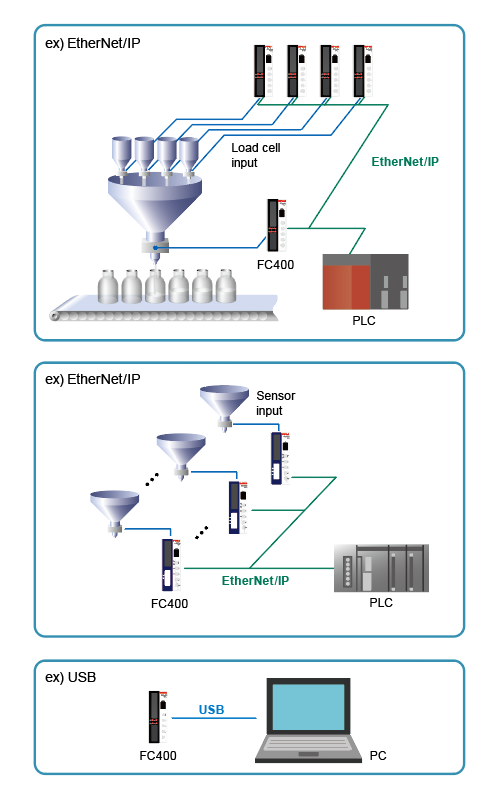

Matches perfectly with every weighing applications such as hopper scale, packer scale, weighing monitor, etc.It has displayable graph in the pc software, and setup can be done easily.
High sampling rate & resolution
High-Speed A/D conversion and powerful digital processing capability of 1200 times/sec..
High display resolution of 1/100000 (max).
Application software for USB interface
With communication through USB interface, logging, graph, display, setting parameters, and calibration can be done.
High performance filter & Auto filter adjustment
With combination of low pass filter (0.1 to 300Hz) which corresponds to various vibration and moving average filter (OFF, 2 to 512) that is effective for periodic vibration, automatic searching for optimal value with accuracy and stability can be achieved.
(You can manually adjust settings too).

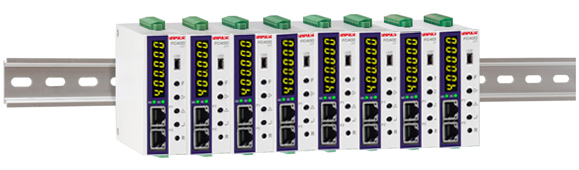

Lightweight and compact body to fit into limited space in a control panel
Light weight & compact body for 35mm DIN rail mount.
Dimensions : 34(W)×88(H)×91(D)mm (Projections excluded)
Weight : Approx. 230g
Load cell signal level display (-2.51mV/V to 5.1mV/V)
The output signal level of load cell can be displayed in mV/V for monitor purpose.
Malfunction indicator or faulty sensor can be differentiated easily.
6 digit display
24 bit A/D convertor enables 6 digit display.
Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of load cells.
Multipoint calibration (linearization)
Three additional points can be defined in the middle between zero and span for better linearity.
Even though the scale has poor linearity, it can be corrected to be a highly accurate scale.
DC5V±5% Output current: 90mA
|Signal input range||-2.5 to 5.1mV/V|
|Zero adjustment range||Automatic adjustment by digital processing -0.5 to 2.0mV/V|
|Span adjustment range||
Automatic adjustment by digital processing 0.02 to 3.0mV/V
|Gain correction||Up to three point multi-point calibration is possible using linearization function|
|Min. input sensitivity||0.15μV/count|
|Accuracy||Non-linearity: within 0.01%FS
Zero drift: 0.0002%FS/℃ Typ
Gain drift: 1ppm/℃ Typ
|Filter||Digital low-pass filter: 0.1 to 300 Hz
Moving average filter: OFF, 2 to 512 times
|A/D converter||Speed: 1200 times/sec.
Resolution: 24bit binary
|Display unit||Character height 8mm, Numerical display by 7-segment green LED|
|Display value||Up to 6 digits|
|Display frequency||Selectable from 3, 6, 13, 25 times/sec.|
|Status display||MS, NS|
Transistor’s open collector output
Input is ON when shorted to COM terminal by contact (relay switch, etc.)
or non contact (transistor, open collector, etc.).
* DC24V external power supply is required.
|Power supply voltage||DC24V (±15%)|
|Power consumption||4W typ|
|Operating conditions||Temperature: Operating temperature range: -10℃ to +50℃, torage temperature range: -20℃ to +85℃
Humidity: 85%RH or less (non-condensing)
|Dimensions||34(W)×88(H)×91(D)mm (Projections excluded)|
|Various I/O connector||2|
