Product outline

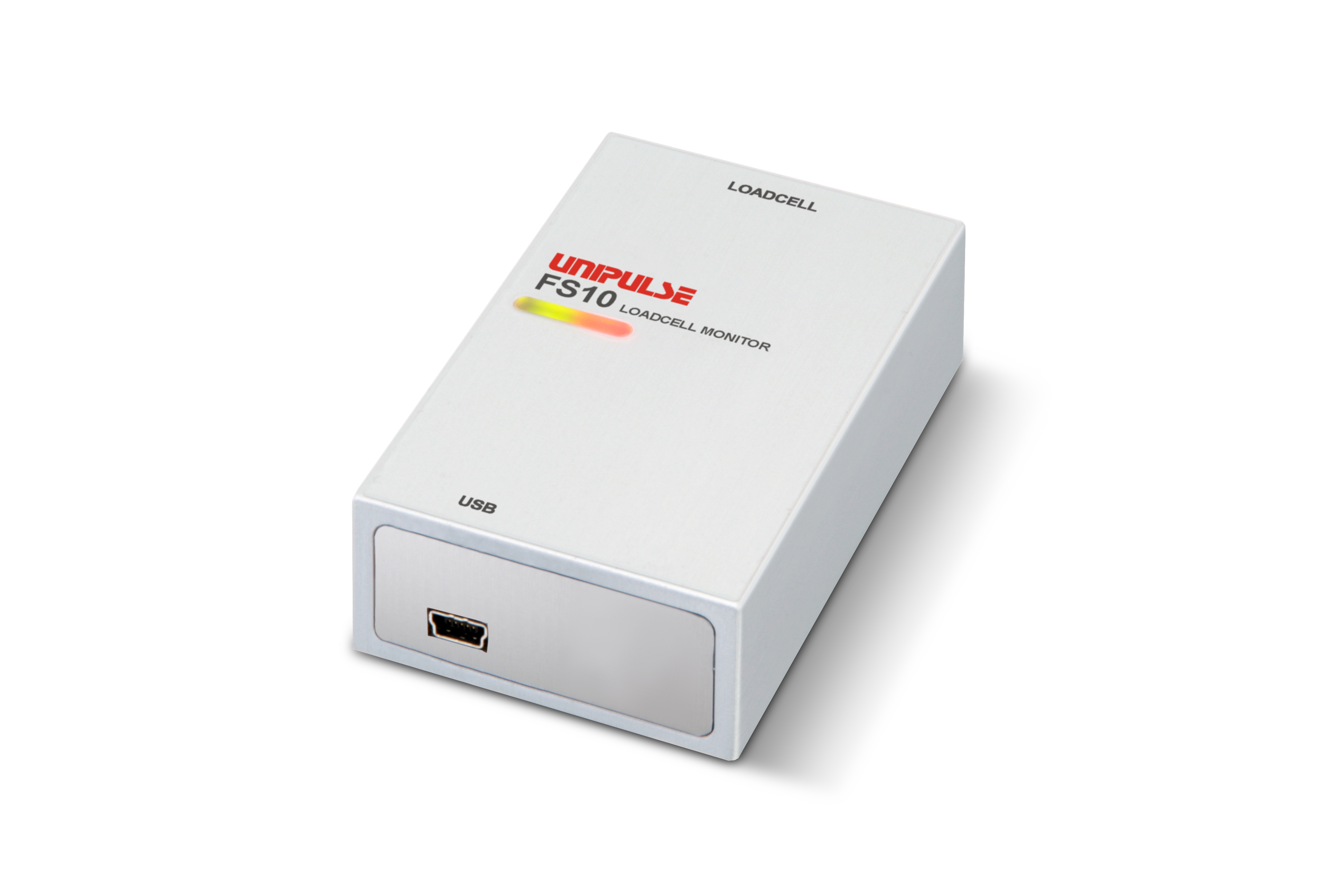

FS10 is a digitizer module for strain gauge type sensors for force, pressure, and displacement measurements. A very accurate measurement can be achieved with the high sampling rate of 1200 sps. This product is ideal for test and experiment applications.
- 1200 times/sec. high-speed digital processing
- Pass/fail test (HH・HI・LO・LL)
- Easy to perform the initial setup and calibration
- Up to 10000 measurement and status data can be recorded
- The module is powered by USB, and it can supply excitation voltage to the connected load cell as well
- The dedicated PC software for the device is available
Compact, light, and simple to use!
With FS10, you can monitor the load cell outputs on PC easily.
USB software
You can simply plug a load cell into FS10 via a cable and connect it to PC via USB.
(Once PC is connected to FS10, it will start downloading the USB driver automatically if it is connected to Internet).
■ Pass/fail test
High & low limit function: HH/HI/LO/LL
■ Easy to perform the initial setup and calibration
Using the software, settings can be saved and edited on PC, and calibration can be performed as well.
■ Waveform display
The waveform of force can be monitored in real time.
You can see if the real-time value is within the high/low, and the data of waveform can be saved on PC as well.
■ Data recoding
Up to 10000 measurement and status (e.g. HI, LO, etc…) data can be recorded.
Interval logging is available, and it is useful for long-hour loading tests and so on.
With the OK/NG (Not OK) count function, you can review results of pass/fail tests as well.
<Waveform display>
<Data logging>
<Setup & calibration>
Specifications
Analog section|Display section|Interface|General specifications|Attachments
Analog section | |
Excitation voltage | DC 5 V±10%, Output current within 30 mA |
---|---|
Signal input range | -3.0 to +3.0 mV/V |
Accuracy |
Non-linearity: within 0.02% FS±1 digit Zero drift: within 0.5 μV/℃ Gain drift: within 0.01%/℃ |
Digital low-pass filter | fc = OFF, 2, 4, 6, 8, 10, 30, 50, 100 Hz (selectable) |
A/D converter |
Speed: 1200 times/sec. (Same for data output) Resolution: 24 bit (binary) Approx. 1/30000 with respect to 3 mV/V |
Display section | |
LED status light |
LED (Red): Power supply/alarm status LED (Green): Loaded condition |
---|
Interface | |
USB | USB interface |
---|
General specifications | |
Power supply | DC 5 V (USB bus power) |
---|---|
Power consumption | 1 W typ. |
Operating conditions | Temperature: Operation: -10℃ to +40℃, Storage: -40℃ to +80℃ Humidity: 80% RH or less (non-condensing) |
Dimensions | 50(W)×23(H)×80(D) mm (Not incliding projections) |
Weight | Approx. 120 g |
Attachments | |
Setup guide | 1 |
---|---|
Cable for connecting load cell 1 m | 1 |
USB cable (A-miniB type) 1.8 m | 1 |
Optional accessories
Model | |
CA81-USB | USB cable (A-miniB type) 1.8 m |
---|---|
CA903Y30 | Cable with waterproof plastic connector at one-end 0.3 m |
CA903Y31 | Cable with waterproof plastic connector at one-end 3 m |
CA904030 | Waterproof plastic connector-PRC connector conversion relay cable 0.3 m |
CA904031 | Waterproof plastic connector-PRC connector conversion relay cable 3 m |
CN90 | Waterproof plastic connector for load cell |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
