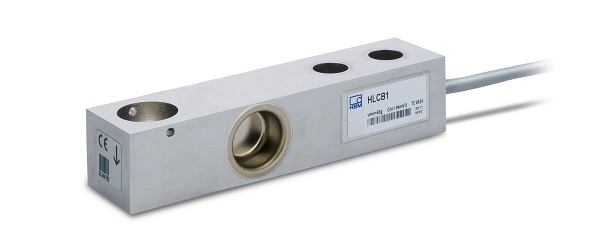

Product outline
Most appropriate for load control of platform scales, tank scales, etc.
● Capacity 110 kg/ 220 kg/ 550 kg/ 1100 kg/ 1760 kg/ 2.2 t/ 4.4 t/ 10 t
● High accuracy, constructed of stainless steel, hermetically sealed
● Applications: Platform scales, tank scales, etc.
● High accuracy, constructed of stainless steel, hermetically sealed
● Applications: Platform scales, tank scales, etc.
Specifications
Model | HLCB1 -110KG |
HLCB1-220KG, HLCB1-550KG, HLCB1-1100KG, HLCB1-1760KG |
HLCB1-2.2T | HLCB1-4.4T | HLCB1-10T |
---|---|---|---|---|---|
Rated capacity |
110 kg | 220 kg, 550 kg, 1100 kg, 1760 kg |
2.2 t | 4.4 t | 10 t |
Rated output |
1.94 mV/V±0.5% | 1.94 mV/V ±0.1% |
2.00 mV/V ±0.5% |
||
Safe overload |
150% R.C. | ||||
Maximum safe side overload | 100% R.C. | ||||
Non- linearity |
0.05% R.O. |
0.04% R.O. | 0.0170% R.O. | 0.05% R.O. |
|
Hysteresis | 0.05% R.O. |
0.04% R.O. | 0.0166% R.O. | 0.05% R.O. |
|
Creep | 0.05% R.O./30 min |
0.04% R.O./30 min |
0.0166% R.O./30 min |
0.05% R.O./30 min |
|
Compensated temperature range | -10 to +40℃ | ||||
Temperature effect on zero |
0.04% R.O./10℃ | 0.0140% R.O./10℃ |
0.04% R.O./10℃ |
||
Temperature effect on span |
0.042% R.O./ 10℃ |
0.04% R.O./10℃ |
0.0140% R.O./10℃ |
0.042% R.O./10℃ |
|
Input resistance |
350 to 480 Ω |
350 Ω or more | 350 to 480 Ω | ||
Output resistance |
350±2 Ω | 350±0.12 Ω | 350±2 Ω | ||
Maximum excitation voltage |
15 V(AC, DC) | ||||
Insulation resistance |
5000 MΩ or more | ||||
Cable | 6-conductor shield cable 3 m (220 to 1760 kg) , 6m (2.2 t to 10 t) Cable end: 7 wires |
||||
Cable color code |
+EXC:BLue +S:Green -S:Gray -EXC:Black +SIG:White -SIG:Red SHIELD |
||||
Load cell material |
Stainless steel | ||||
Deflection at rated |
0.5 mm | 220KG:0.5 mm 550KG:0.5 mm 1100KG:0.5 mm 1760KG:1.4 mm |
0.5 mm |
0.5 mm |
0.5 mm |
Weight | 0.9 kg | 220KG:0.9 kg 550KG:0.9 kg 1100KG:0.9 kg 1760KG:0.9 kg |
1.6 kg | 2.2 kg | 6.2 kg |

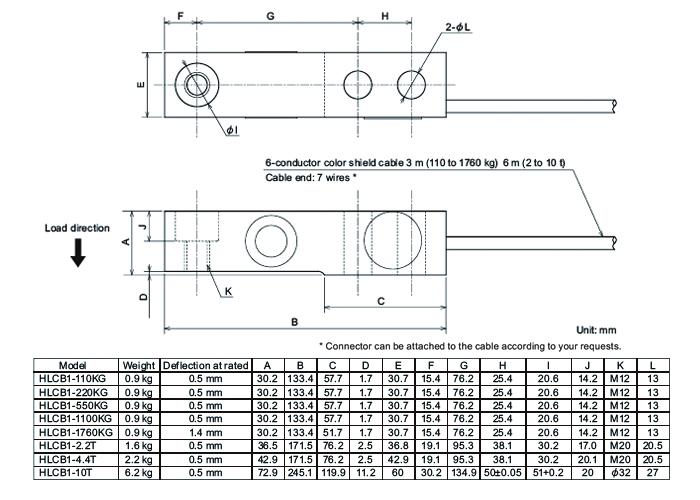

External dimension
