Product outline

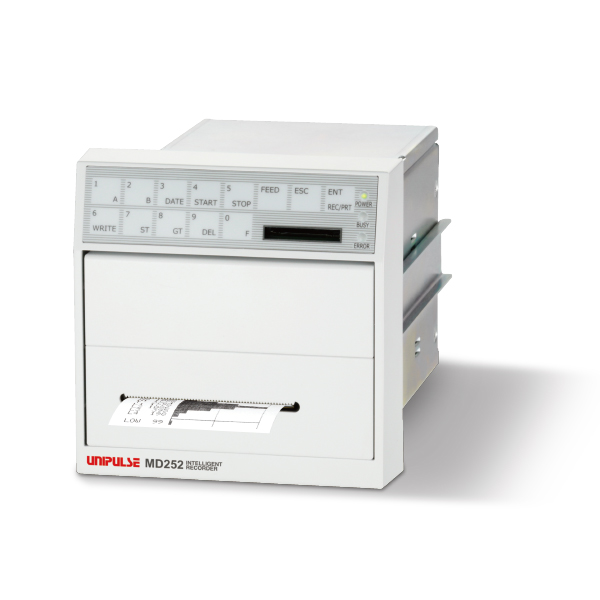

MD252 is an intelligent data recorder that can be connected to various devices.
From a variety of formats such as statistical values ​​and histograms, you can print according to your needs.
Not only printing but also recording to the internal memory and SD card can be performed, and data can be managed in duplicate.
It is also economical because it is connectable for 2 indicators.
Features
MD252 can print / record data from various devices using BCD input and RS-232C interface.
You can also easily connect Unipulse weighing indicators and digital indicators using SI/F*.

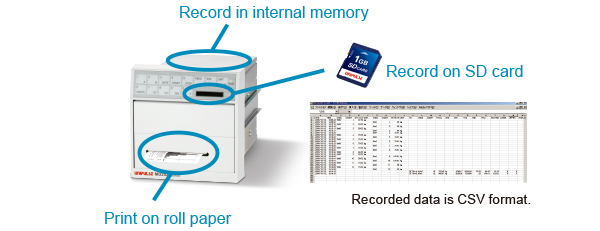

Roll paper printing, internal memory recording, SD card saving (CSV format), and link to PC can be done with this 1 unit.
*SI/F is a serial interface that is standard equipment on some of our indicators.
Printing / recording of 2 indicators
Basically, SI/F interfaces are installed in 2 channels to enable the economical double-channels printings/ recordings.

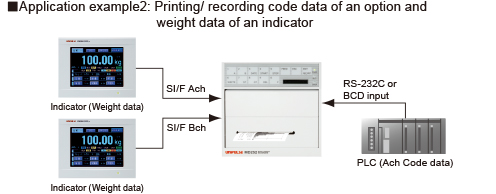

By entering via the front panel key, weight data with code can be recorded in both Ach and Bch. Code data of Ach can also be entered via an optional interface.
Code-table function
The code can use alphanumeric characters and/ or symbols for up to 6 characters or digits. Up to 100 codes can be registered. Up to 32 types/ch of classification for each code.
Code name registration by PC
The code name of MD252 can be saved on the SD card. It is also possible to read the code name which is saved on the SD card into MD252.You can register the code on your computer!
Feel at ease without paper.
Weight data of indicator and MD252 statistical data can be recorded on SD card. Even without SD card, the data equivalent to amount of data printable on 1 roll* or more rolled paper can be recorded.
(Available to print 8,000 rows on 1 roll of rolled paper.)
Abundant print formats
Statistical printing function that can print totals, statistics, displacement charts and histograms.
High-level statistical calculation functions
It is equipped with calculation functions such as Grand total, Sub-total, Max., Min., Average, and Standard deviation of recorded data.In addition, the frequency distribution allows you to understand the degree of data variation.
DIN96 size
DIN96(W)×96(H)mm size. Compact design and easy installation

Specifications

Printer section
Printing method 5×7 dot impact
Printing rate Approx. 2.5rows/sec (approx. 60cps)
Printing digit 24 digits
Printing paper ・ Roll paper…Width:57.5±0.5mm Winding diameter:60mm Total length:30m No. of printable rows: Approx. 8000 rows/1 roll
・ Roll paper (duplicate)…Width:57.5±0.5mm Winding diameter:60mm Total length:20m No. of printable rows: Approx. 5900 rows/1 roll
Durability MCBF 1,000,000 rows or more (roll paper: 200 rolls or more)

Card slot section
Card specification SD card
File format CSV format text file
File name ddhhmmss.csv(dd:day, hh:hour, mm:minute, ss:second)
File writing method ・WRITE→ENT key input
・GT→ENT key input
・Rear panel input (WRITE terminal)
・Rear panel input (GT terminal)
・In case of full internal memory
・Set by maximum recording count for each codes
・Setting time

Main performance
Data recording method ・ REC/PRT key input
・ Rear panel input (REC terminal)
・ Auto Recording command input (via SI/F, RS-232C)
・ Automatic record by interval setting (1 to 9999 sec.)
(2 to 9999 sec for displacement diagram printing)
Details of recorded data Date, Time, Input value, Unit, Code name (6-digits), Count (1 to 9999 counts), Sub-total (9-digits), Grand Total (9-digits), Batch Total, target value*1, Maximum Value, Minimum Value, Average, Standard Deviation, Range (Max-Min), displacement diagram*1, histogram*1, Frequency Distribution*2, Error, Over
*1:Only print
*2:Only record

Interface (Only one option can be installed.)
SIF SI/F 2-wire serial interface(Basically, SI/F interfaces are installed in 2 channels)
BCI BCD parallel data input interface (option)
232 RS-232C communication interface (option)

General performance
Power source DC24V±15%
Power consumption 20W typ.
Inrush current 4A (700μsec typ.)
Operation condition Temperature Operation temperature range:-10 to +50℃、Storage temperature range:-20 to +85℃
Humidity 85%RH or less (non-condensing)
Dimensions 110(W)×112(H)×155(D)mm
Weight Approx.1.3kg

Attachments
Mini driver 1
BCD input connector 1 (with BCD option)
Ink ribbon (1 mounted on main unit) 2
Roll paper 1
Roll paper spindle 1
Operation manual 1

Optional accessories

Optional accessories
PP350/10 Roll paper 10 pcs
PP350-2P/10 Roll paper (duplicate) 10 pcs
PR350/10 Ink ribbon 10 pcs
PC252B Roll paper spindle
CN34 D-Sub 9p connector for RS-232C
SD1G SD card 1GByte
SD2G SD card 2GByte
