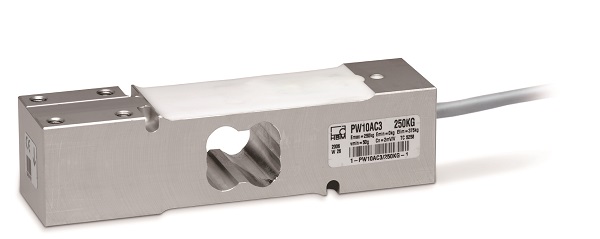

Product outline

Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

● Capacity 50 / 100 / 150 / 200 / 250 / 300kg
● Constructed of Aluminum, Lightweight
● Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

Specifications

Model PW10A-50KG, PW10A-100KG, PW10A-150KG, PW10A-200KG
PW10A-250KG, PW10A-300KG
Rated capacity 50, 100, 150, 200, 250, 300 kg
Rated output 2.0±0.2 mV/V
Safe overload 150 %R.C.
Maximum safe overload 300 %R.C.
Maximum safe side overload 300 %R.C.
Zero balance ±6 %R.O.
Non-linearity 0.0166(typ) %R.O.
Hysteresis 0.0166(typ) %R.O.
Compensated temperature range -10 to +40
Safe temperature range -10 to +50
Temperature effect on zero 0.0140(50/100/200kg),
0.0093(150/300kg), 0.0112(250kg)
%R.O./10K
Temperature effect on span 0.0175(+20 to +40℃), 0.0117(−10 to +20℃) %R.O./10K
Input resistance 300 to 500 Ω
Output resistance 330 to 430 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 2000 or more
Degrees of protection IP67
Cable 6 conductor shield cable 3m
Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD:Yellow
Loadcell material Aluminum
Deflection at rated 0.5 or less mm
Natural frequency 50KG:734
100KG:877
150KG:961
200KG:1024
250KG:1070
300KG:1105
Hz
Maximum off center distance 150 mm
Maximum platform size 600×500 mm
Weight 0.6 kg

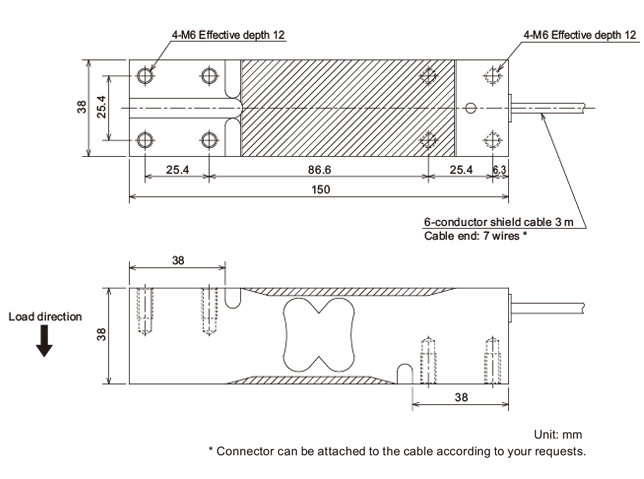

External dimension

Download

Product catalogue(PDF)
GC2018-PW10A(561 KB)
Operation manual(PDF)
External dimention
DXF
(ZIP)
PDF
Support tools
Software
  • User registration is required to download operation manuals, external dimentions, support tools and software.
  • Acrobat Reader software from Adobe Systems is required to view PDF files.
