Product outline

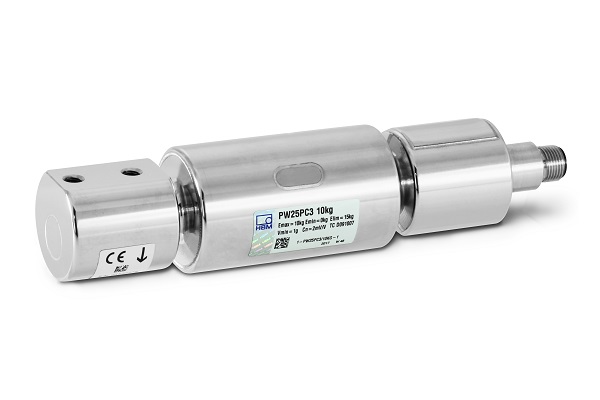

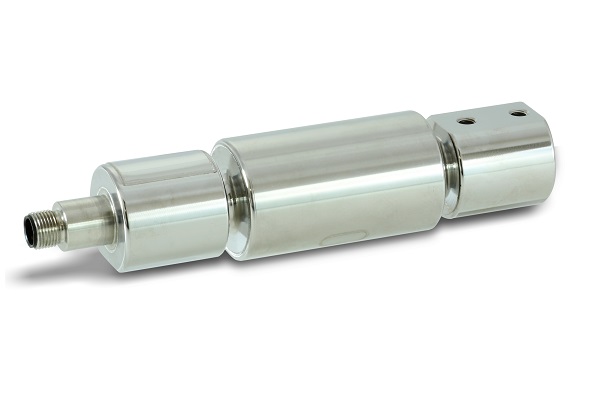

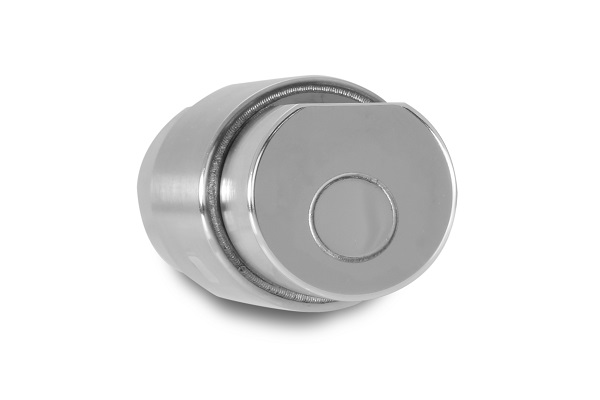

Stainless steel single point load cell. Waterproof & high-pressure washable load cell, with sanitary design. Clean round shape design thus water & dust proof! Built-in safe overload prevention mechanism!

● Capacity 10 / 20kg
● Construction material: Stainless steel

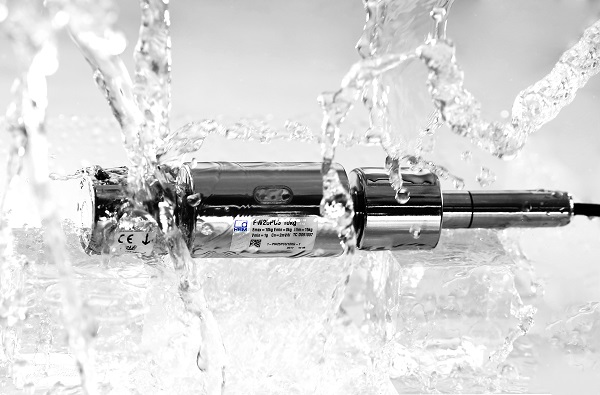

● Waterproof & high-pressure washable load cell, with sanitary design.
● Suitable for small weight measurement

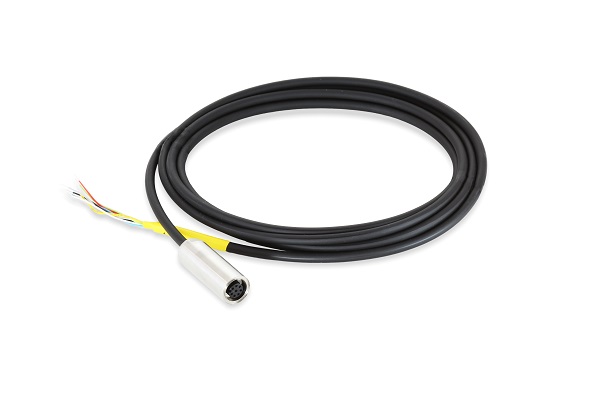

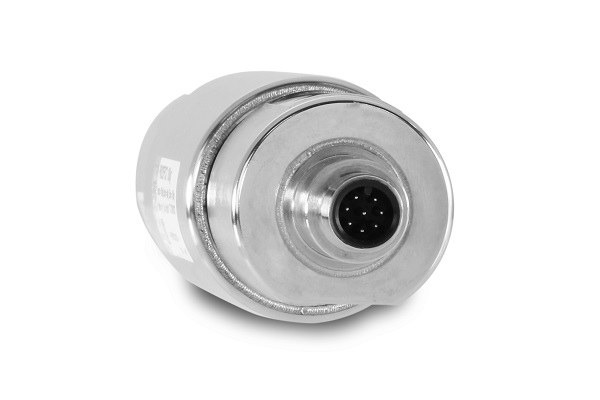

● Connector specs for easy exchange (cable sold separately)

Specifications

Model PW25P-10KG PW25P-20KG
Rated capacity 10 20 kg
Rated output 2.2±0.2 mV/V
Limit load at 20mm eccentricity 1000 %R.C.
Service load at max. 120mm eccentricity 150 %R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166(typ) %R.O.
Hysteresis 0.0166(typ) %R.O.
Compensated temperature range -10 to +40
Safe temperature range -10 to +50
Temperature effect on zero 0.0140 %R.O./10K
Temperature effect on span 0.0175(+20 to +40℃), 0.0117(−10 to +20℃) %R.O./10K
Input resistance 300 to 500 Ω
Output resistance 300 to 500 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 2000 or more
Degrees of protection IP69,IP69K*
Loadcell material Stainless steel
Deflection at rated 0.19 0.18 mm
Natural frequency 210 315 Hz
Maximum off center distance 150 mm
Maximum platform size 400×400 mm
Weight 0.8 kg
Cleaning temperature Up to 120°C in 10 minutes

* IP69K load condition: DIN 40050 part 9 compliant

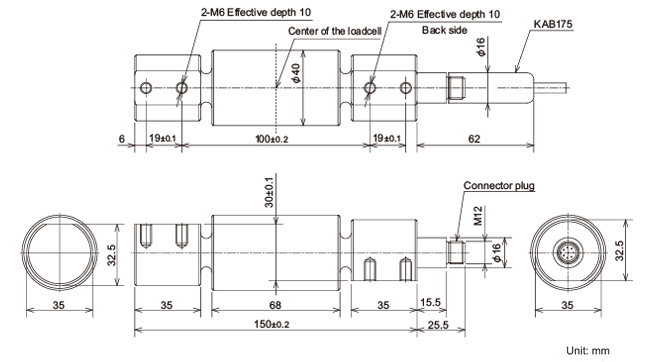

External dimension
