Product outline

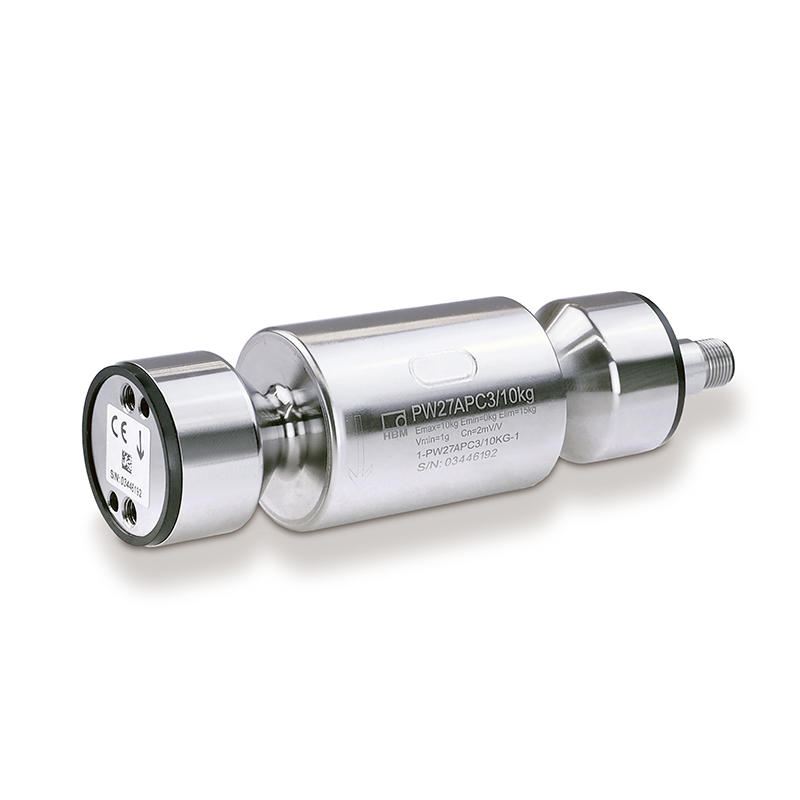

Stainless steel single point load cell.
Completely waterproof, all stainless steel-made & hermatically sealed structure
Hygienic load cell designed for food production!
Built-in safe overload prevention mechanism!

  • Capacity 10 kg / 20 kg
  • Construction material: Stainless steel
  • Completely waterproof, all stainless steel-made & hermatically sealed structure
  • Hygienic load cell designed for food production
  • Suitable for small weight measurement
  • Connector specs for easy exchange (cable sold separately)



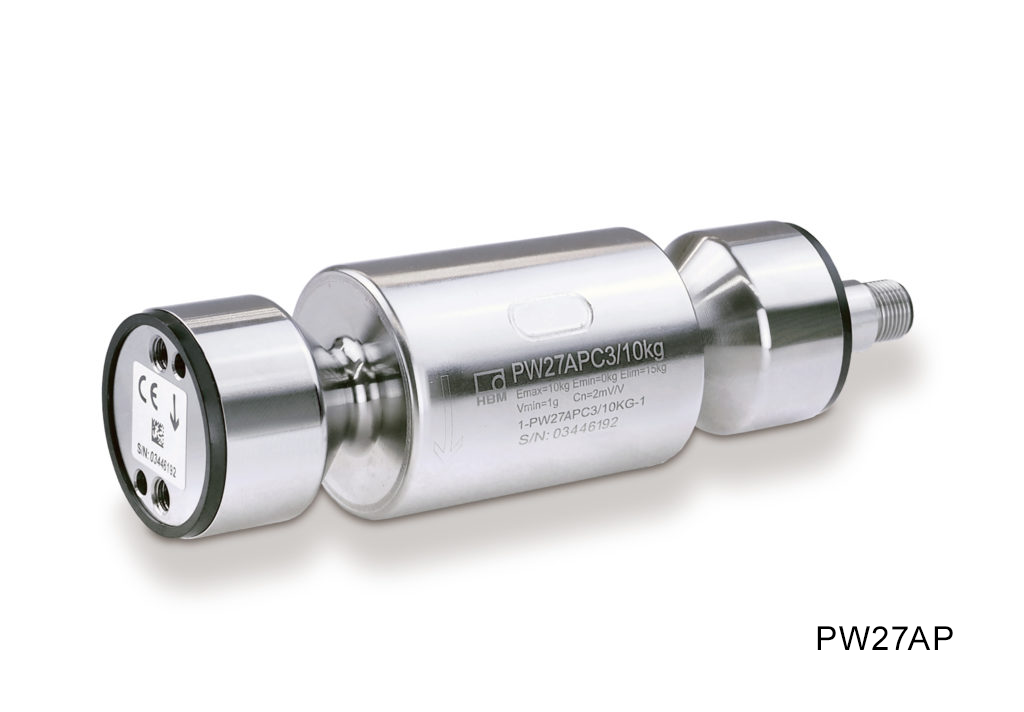

2_pw27ap-d-300x195

Specifications

Model PW27AP-10KG PW27AP-20KG
Rated capacity 10 kg 20 kg
Rated output 2.0±0.2 mV/V
Limit load at 20mm
eccentricity
1000% R.C.
Service load at max.
120mm eccentricity
150% R.C.
Maximum safe side
overload
200% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Compensated temperature range -10 to +40℃
Safe temperature range -10 to +70℃
Temperature effect on
zero
0.0140% R.O./10℃
Temperature effect on
span
0.0175% R.O./10℃(+20 to +40℃),
0.0117% R.O./10℃(-10 to +20℃)
Input resistance 300 to 500 Ω
Output resistance 300 to 500 Ω
Recommended
excitation voltage
1 to 12 V
Insulation resistance 1000 MΩ or more
Degrees of protection IP69, IP69K *
Load cell material Stainless steel
Deflection at rated 0.19 mm 0.18 mm
Natural frequency 210 Hz 315 Hz
Maximum off center distance 150 mm
Maximum platform size 400 × 400 mm
Weight 0.8 kg
Cleaning temperature Up to 120°C in 10 minutes

* IP69K load condition: DIN 40050 part 9 compliant

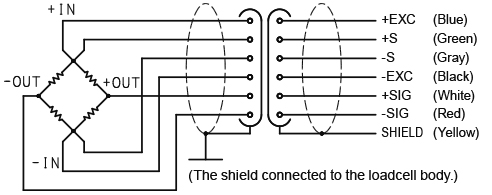

Wiring diagram

Accessories

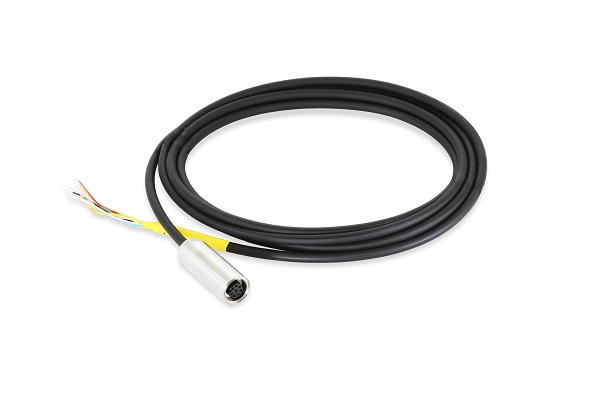

KAB177-3:φ5.4 6 conductor hygiene design cable 3 m Cable end: 7 wires

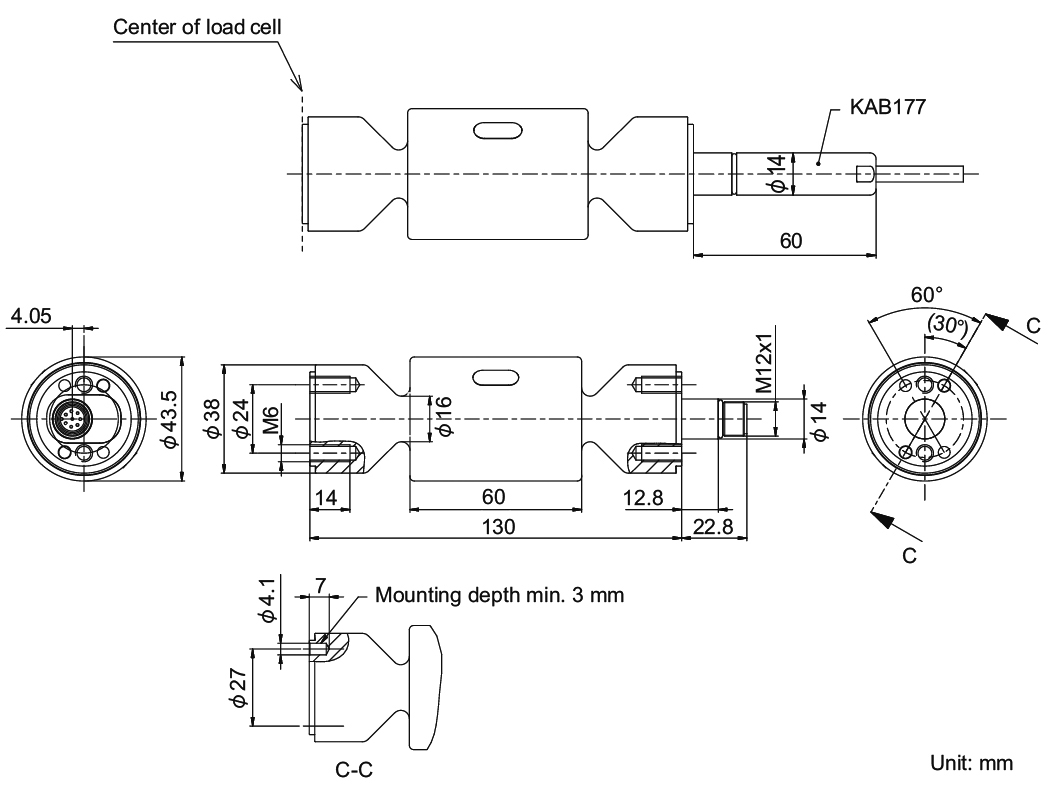

External dimension
