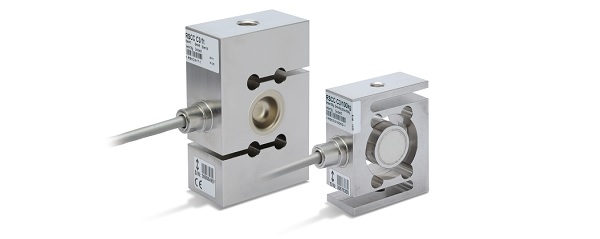

Product outline

Most appropriate for load control of crane scales, tank scales, etc.
● Capacity 50kg / 100kg / 200kg / 500kg / 1t / 2t / 5t
● Constructed of stainless steel, Lightweight
● Applications: Crane scales, tank scales, etc

Specifications

Model RSCC-50KG, RSCC-100KG, RSCC-200KG,
RSCC-500KG, RSCC-1T, RSCC-2T, RSCC-5T
capacity 50kg, 100kg, 200kg, 500kg, 1t, 2t, 5t
Rated output 2±0.25% mV/V
Safe overload 150 %R.C.
Maximum safe overload 200(50 to 200kg), 300(500kg to 2t), 200(5t) %R.C.
Zero balance ±5 %R.O.
Non-linearity 0.0166 %R.O.
Hysteresis 0.0166 %R.O.
Creep 0.0166 %R.O./30min
Compensated temperature range -10 to +40
Safe temperature range -30 to +70
Temperature effect on zero 0.0166 %R.O./10℃
Temperature effect on span 0.0170(+20 to +40℃)
0.0110(-10 to +20℃)
%R.O./10℃
Input resistance 389±15 Ω
Output resistance 350±1.5 Ω
Recommended excitation voltage 5 V
Maximum excitation voltage 12 V
Insulation resistance 2000 or more
Degrees of protection IP68
Cable φ5.4 6-conductor color shield cable 7.6m
End treatment 7-leads.

Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD
Loadcell material Stainless steel
Deflection at rated 50KG:0.35
100KG:0.4
200KG:0.35
500KG:0.1
1T:0.2
2T:0.2
5T:0.4
mm
Weight 50KG:0.7
100KG:0.7
200KG:1.0
500KG:1.4
1T:1.4
2T:1.7
5T:2.2
kg
