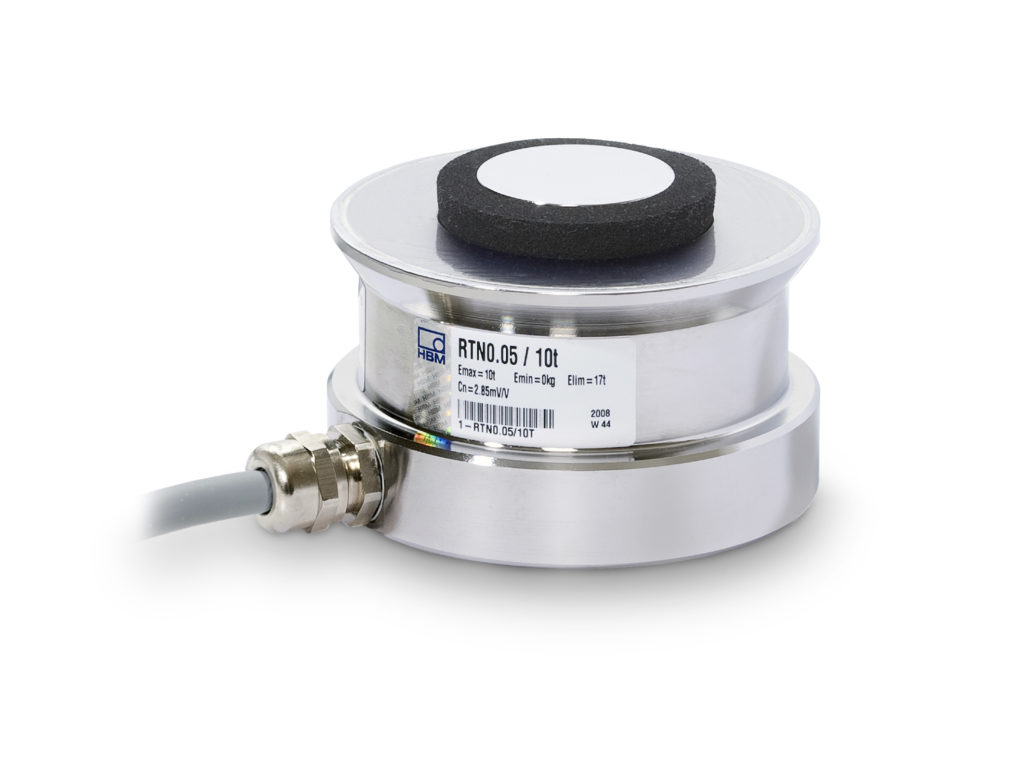

Product outline

Thin, high accuracy stainless steel load cell.
Supports wide measuring range! (1-470T)
Can be used in tank, truck scale, etc!

  • Capacity 1t / 2.2t / 4.7t / 10t / 15t / 22t / 33t / 47t / 68t / 100t / 150t / 220t / 330t / 470t
  • Construction material: Stainless steel
  • Laser welded closed structure
  • Degrees of protection IP68

Specifications


Model RTN C3
Rated capacity 1
2.2
4.7
10
15
22
33
47
68
100
150
220
330
470
t
Rated output 2.85±0.1% mV/V
Safe overload 1t:1.7
2.2t:3.8
4.7t:8
10t:17
15t:25
22t:38
33t:56
47t:80
68t:115
100t:170
150t:250
220t:380
330t:500
470t:700
t
Non-linearity 0.02(typ) %R.O.
Hysteresis 0.02(typ) %R.O.
Compensated temperature range -10 to +40
Safe temperature range -30 to +80
Temperature effect on zero ±0.007 %R.O./10K
Temperature effect on span ±0.008(typ) %R.O./10K
Input resistance 4,450±100 Ω
Output resistance 4,010±0.5 Ω
Recommended excitation voltage 5 V
Excitation voltage range 5 to 30(Max.60) V
Insulation resistance 20 or more
Degrees of protection IP68
Deflection at rated 1t:0.13
2.2t:0.12
4.7t:0.12
10t:0.17
15t:0.18
22t:0.21
33t:0.25
47t:0.33
68t:0.35
100t:0.45
150t:0.57
220t:0.67
330t:0.85
470t:1.00
mm
Loadcell material Stainless steel
Weight 1t:0.6
2.2t:0.6
4.7t:0.7
10t:1.2
15t:1.3
22t:1.3
33t:2.1
47t:4.3
68t:4.8
100t:7.0
150t:8.6
220t:22
330t:29
470t:50
kg

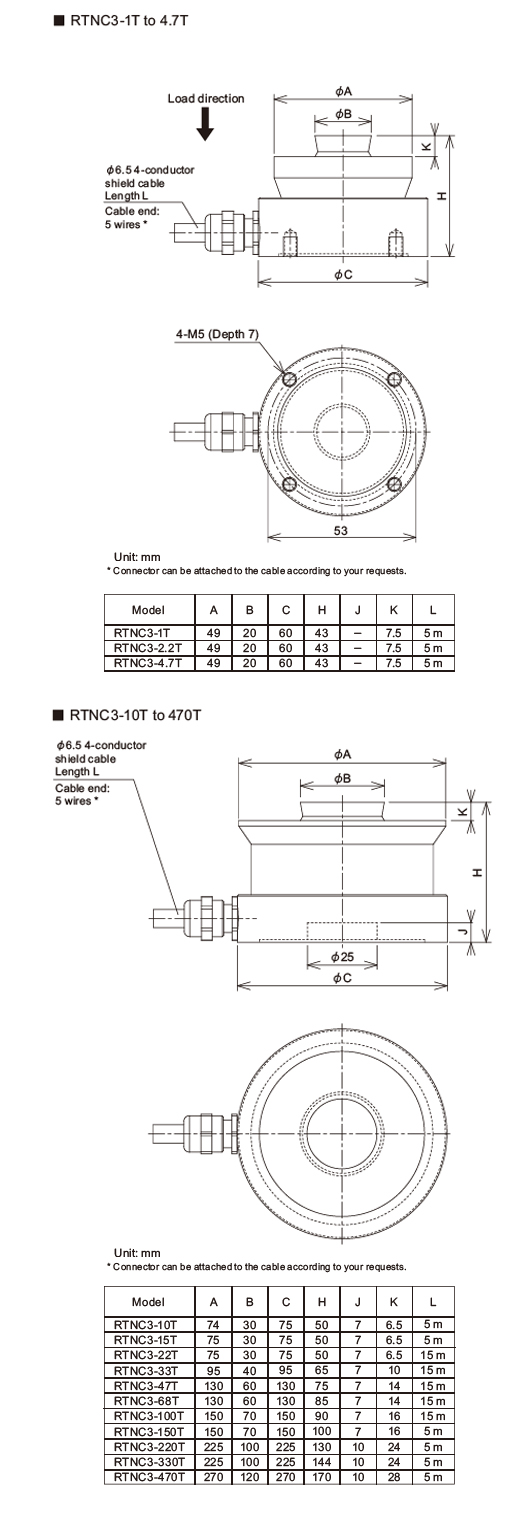

External dimension
