Product outline

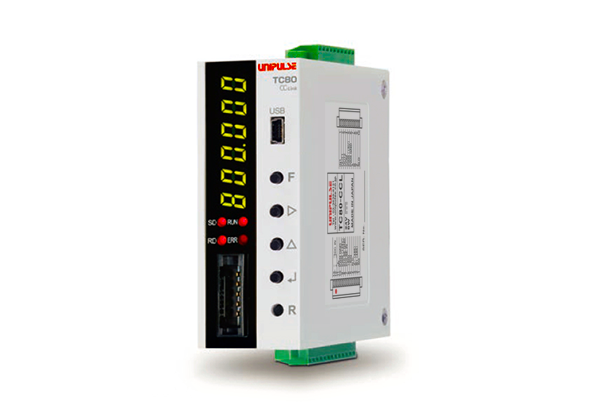

・TC80-CCL is a compact torque converter.
・Compatible with rotary encoder option (UTMⅡ(R)/ UTMⅢ(R)) too!
・UTMⅢ digital output can be read, and make noise resistance tester.
・Torque data (hold value) is stored up to 100, and data can be read.
Lightweight and compact body to fit into limited space in a control panel
Light weight & compact body for 35 mm DIN rail mount
Application software for USB interface
With communication through USB interface,
graph display, reading hold data,
setting parameters, and calibration can be done.
Specifications
Analog section｜Display section｜External signal｜Interface｜General specifications｜Attachments
| Analog section | |
| Signal input range | -10 to +10 V (UTMⅢ) Input resistance: 1 MΩ or more -5 to +5 V (UTMⅡ/UTMV) Input resistance: 1 MΩ or more |
|---|---|
| Accuracy | Non-linearity： within 0.02% FS±1 digit Zero drift： within 0.2 mV/℃ RTI Gain drift：within 0.01%/℃ |
| Digital low-pass filter |
PASS,3 to 1 kHz |
| A/D converter | Speed ：16000 times/sec Resolution：24 bit (binary) 1/30000 with respect to 10 V |
| Rotation speed input for high speed (Pulse input, open collector)(UTMⅢ/UTMⅡ/UTMV) | |
| Maximum input frequency | Based on UTMⅡ/ UTMV/ UTMⅢ |
| Minimum input frequency | Selectable from 15, 10, 5, 3, or 2 rpm (when pulse rate is 4 ppr) Selectable from 60, 40, 20, 12, or 8 rpm (when pulse rate is 1 ppr) |
| Minimum detection pulse width | 50 μs |
| Circuit configuration |
No-voltage contact input (minus common) Open collector connectable (Ic = Approx. 10 mA) |
| Rotation speed input for low speed(Pulse input, open collector) *For using rotary encoder option |
|
| Maximum input frequency | 5000 rpm |
| Minimum input frequency | 0.1 rpm ＊The resolution depends on the settings of the rotation speed and the number of the output pulse. |
| Minimum detection pulse width | 5 μs |
| Circuit configuration | No-voltage contact input (minus common) Open collector connectable (Ic ＝ Approx. 10 mA) |
| Encoder input (Pulse input) |
Compatible with encoder option of UTMⅢ/UTMⅡ |
|---|
| Display section | |
| Display unit | Character height 8 mm Numerical display by 7-segment green LED |
|---|---|
| Display content | Switchable numeric display (torque, rotation speed, angle) |
| Display frequency | Selectable from 1, 3 , 6, 13, 25 times/sec. |
| Status display | RUN、SD、RD、ERR |
| External I/O signal | |
| Output signal (2) | Selectable/ configurable Transistor’s open collector output Vceo = 30 V、 Ic = 50 mA |
|---|---|
| Input signal (1) | Selectable/ configurable Contact (relay, switch, etc.) or non contact (transistor, photo coupler, etc.) Input is ON when shorted to COM terminal |
| Interface | |
| USB | USB Interface |
|---|---|
| CCL | CC-Link Interface |
| 485 | RS-485 Interface |
| General specifications | |
| Power supply voltage |
DC 24 V±15% |
|---|---|
| Power consumption | 6 W typ. |
| Operating conditions |
Operating temperature range: -10℃ to +50℃, Storage temperature range: -20℃ to +85℃ Humidity: 85% RH or less (non-condensing) |
| Dimensions | 34(W) × 88(H) × 91(D) mm (Not including projections) |
| Weight | Approx. 230 g |
| CE marking certification | EMC directives EN61326-1 |
| Attachments | |
| Quick manual | 2 |
|---|---|
| CC-Link connector | 1 |
| Mini driver | 1 |
| Various I/O connector | 2 |
| Ferrite core | 1 |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
