Product outline

Easy to use low profile center hole load cell!

Capacity 1kN / 2kN / 5kN / 10kN / 20kN

Suitable for measurement of axial bolt force, press-fitting, and caulking.

Specifications

Model UBFH-1KN UBFH-2KN UBFH-5KN UBFH-10KN UBFH-20KN
Rated capacity 1 2 5 10 20 KN
Rated output 1±15% 1±25% mV/V
Safe overload 150 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.1 0.2 0.5 %R.O.
Hysteresis 0.2 0.5 %R.O.
Repeatability 0.1 0.3 %R.O.
Compensated temperature range -10 to +60
Safe temperature range -10 to +70
Temperature effect on zero 0.3 %R.O./10℃
Temperature effect on span 0.2 %R.O./10℃
Input resistance Approx.1000 Ω
Output resistance Approx.1000 Ω
Recommended excitation voltage 10 V(AC,DC)
Maximum excitation voltage 15 V(AC,DC)
Insulation resistance 1000 or more
Cable φ3.8mm 4-conductor flexible cable (3m)
Cable color code +EXC:Red
+SIG:Green
-EXC:Black
-SIG:White
SHIELD:Yellow
Deflection at rated 0.030 0.035 mm
Natural frequency 5.0 7.3 11 9.7 13 kHz
Loadcell material Stainless steel
Weight Approx.280 Approx.470 g

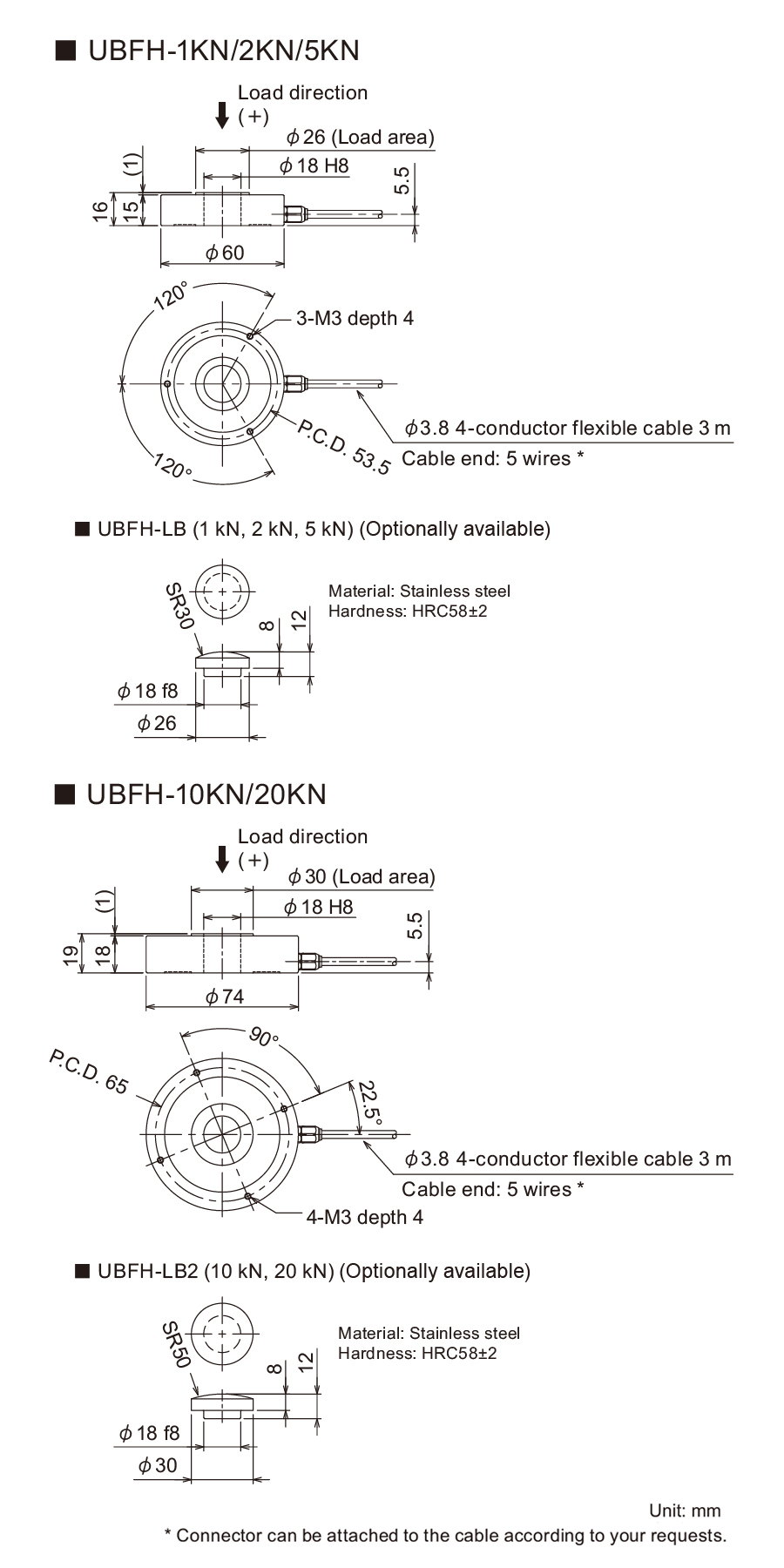

External dimension

ubfh_g_1
