Product outline

Can measure up to 20kN with diameter of 21mm!

Specifications

Model UCC-10KN UCC-20KN
Rated capacity 10 20 kN
Rated output 1±20% mV/V
Safe overload 120 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.5 %R.O.
Hysteresis 0.5 %R.O.
Repeatability 0.2 %R.O.
Compensated temperature range 0 to +50
Safe temperature range -10 to +60
Temperature effect on zero 0.5 %R.O./10℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx.350 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance 1000 or more
Cable φ2mm 4-conductor flexible cable (2m)

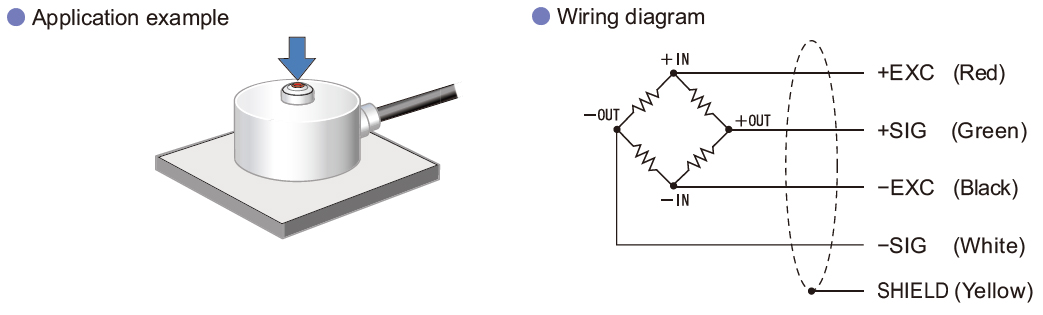

Cable color code +EXC: Red
+SIG: Green
-EXC: Black
-SIG: White
SHIELD: Yellow

Deflection at rated 0.030 0.045 mm
Natural frequency Approx.54 Approx.55 kHz
Loadcell material Stainless steel
Weight Approx.20 g

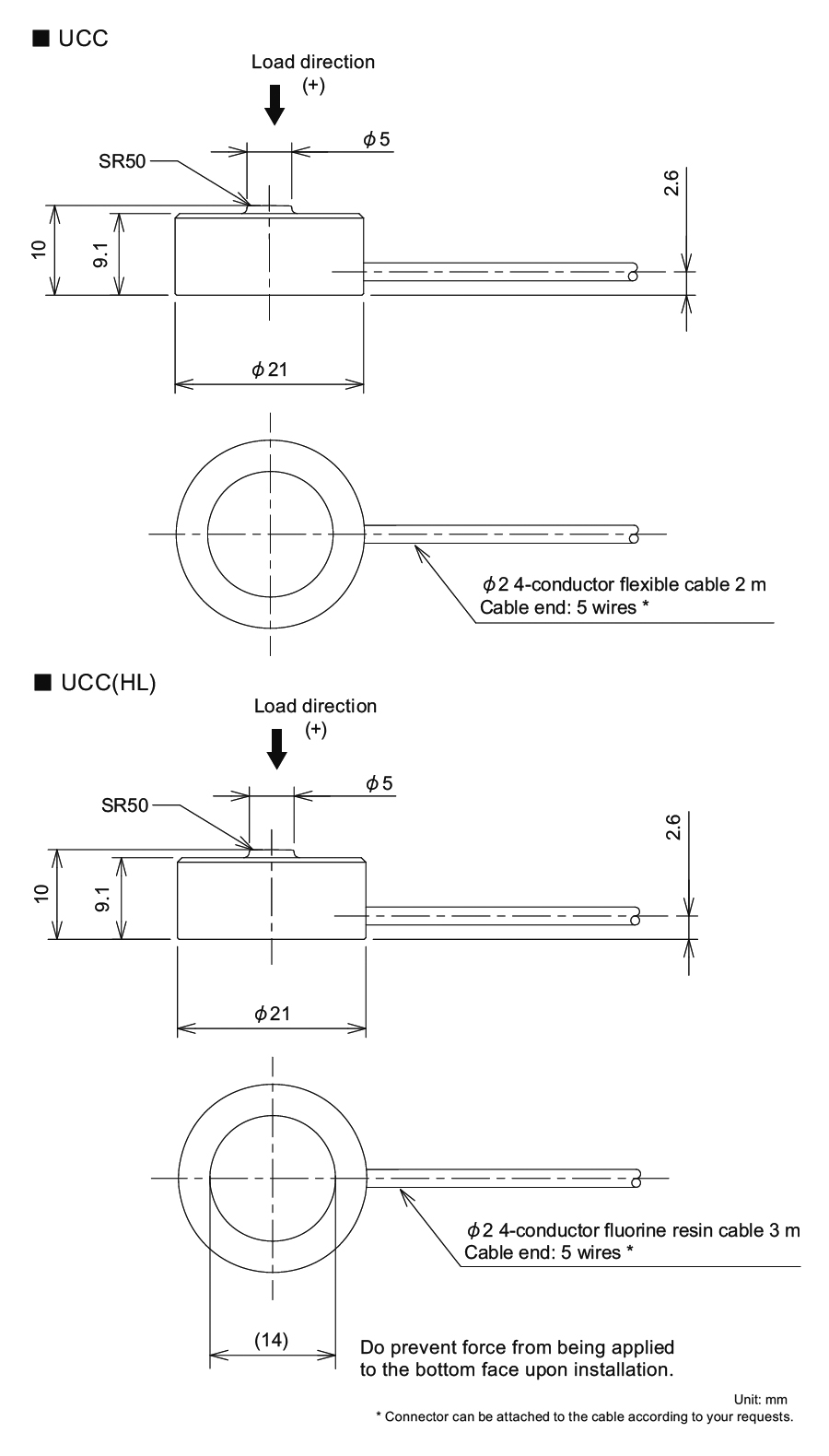

External dimension

ush_g_1


Download

Product catalogue(PDF)
UCC_Catalog(698 KB)
Operation manual(PDF)
External dimention
DXF
(ZIP)
PDF
Support tools
Software
  • User registration is required to download operation manuals, external dimentions, support tools and software.
  • Acrobat Reader software from Adobe Systems is required to view PDF files.
