Product outline

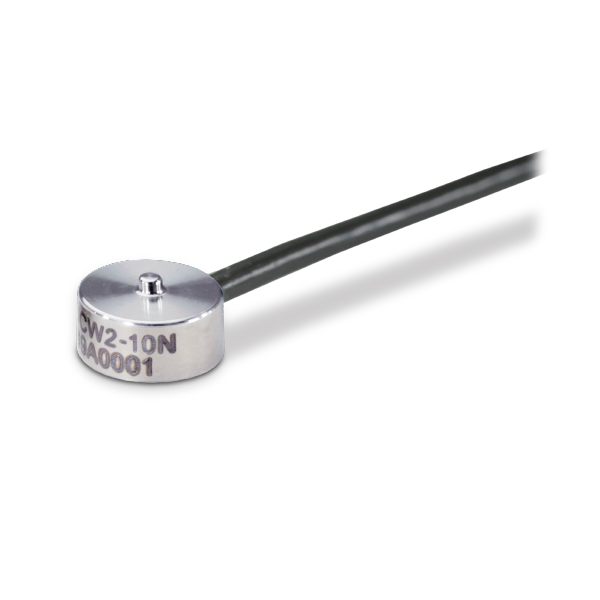

UCW2:Diameter 6mm, height 3.5mm

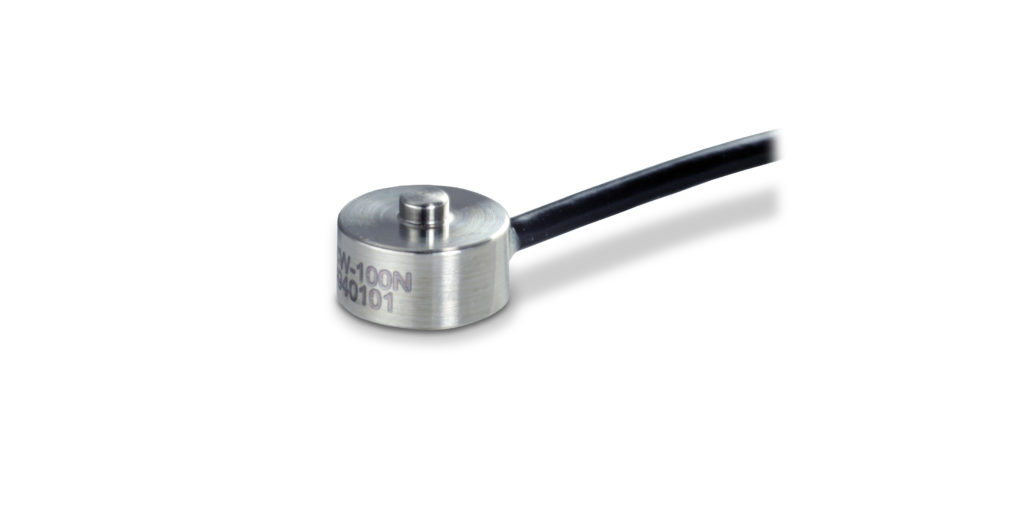

UCW:Diameter 7mm, height 4.5mm
Compact type load cell

● Capacity
UCW2:10N / 20N
UCW:50N / 100N / 200N / 500N
● Construction material: Stainless steel

Specifications

Model UCW2-10N, UCW2-20N UCW-50N, UCW-100N, UCW-200N, UCW-500N
Rated capacity 10, 20 50, 100, 200, 500 N
Rated output Approx. 0.5 Approx. 1 mV/V
Safe overload 200 %R.C.
Zero balance ±20 ±10 %R.O.
Non-linearity 0.3 %R.O.
Hysteresis 0.2 %R.O.
Repeatability 0.1 %R.O.
Compensated temperature range 0 to +60
Safe temperature range -10 to +70
Temperature effect on zero 1 0.5 %R.O./10℃
Temperature effect on span 1 0.5 %R.O./10℃
Input resistance Approx.350 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance (DC50V) 1000 or more
Cable φ1.6 4-conductor color shield cable.
Length 0.5m.
End treatment 5-leads.

Cable color code +EXC:Red
+SIG : Green
-EXC : White
-SIG : Blue
SHIELD
Loadcell material Stainless steel
Deflection at rated 0.003 50N:0.003
100N/200N:0.004
500N:0.005
mm
Natural frequency 10N:110
20N:140
50N:110
100 to 500N:120
kHz
Weight 1 2 g

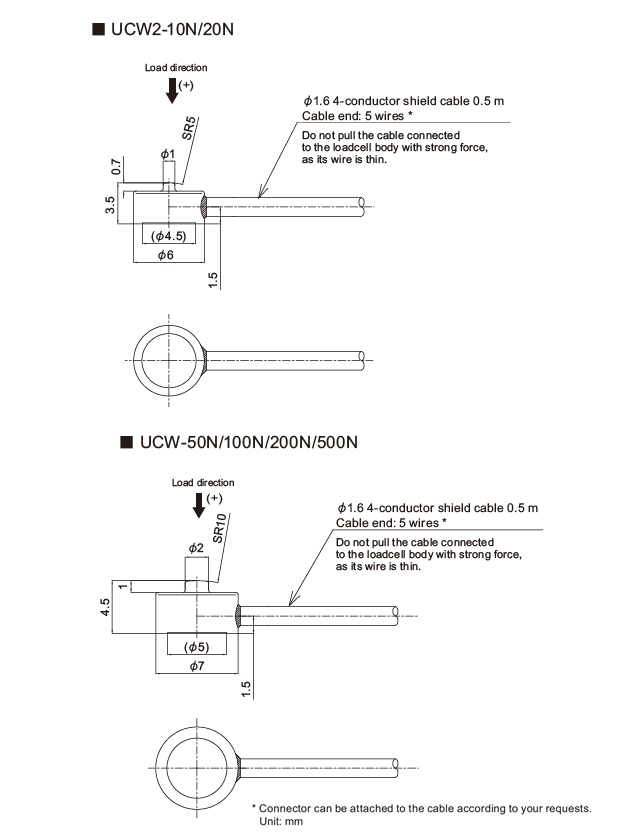

External dimension

Download

Product catalogue(PDF)
UCW/UCW2 catalogue(467 KB)
Operation manual(PDF)
External dimention
DXF
(ZIP)
PDF
