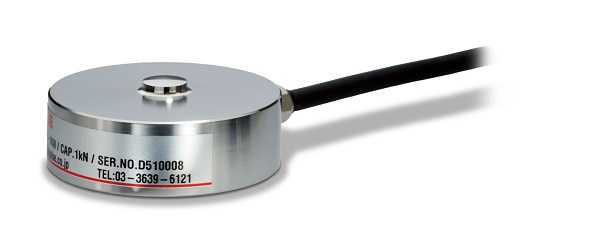

Product outline

Compact and thin design allows easy mounting on existing equipment.
● Capacity 300N / 500N / 1kN / 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN / 100kN / 200kN / 300kN / 500kN
● Stainless steel
● Compact and thin design allows easy mounting on existing equipment.

Specifications

Model UNBF-300N, UNBF-500N, UNBF-1KN, UNBF-2KN, UNBF-3KN, UNBF-5KN, UNBF-10KN, UNBF-20KN UNBF-30KN, UNBF-50KN, UNBF-100KN, UNBF-200KN, UNBF-300KN, UNBF-500KN
Rated capacity 300, 500, 1k, 2k, 3k, 5k, 10k, 20k 30k, 50k, 100k, 200k, 300k, 500k N
Rated output 2±0.5% mV/V
Safe overload 150 %R.C.
Maximum safe overload 200 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.2 0.35 %R.O.
Non-linearity 0.2 0.35 %R.O.
Repeatability 0.1 0.20 %R.O.
Compensated temperature range -10 to +60
Safe temperature range -20 to +70
Temperature effect on zero 0.1 %R.O./10℃
Temperature effect on span 0.1 %R.O./10℃
Input resistance Approx.400 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 10 V
Maximum excitation voltage 20 V
Insulation resistance (DC50V) 1000 or more
Cable φ6 4-conductor color shield cable. Length 3m. End treatment 5-leads. φ8 4-conductor color shield cable. Length 3m. End treatment 5-leads.
Cable color code +EXC: Red
+SIG: White
-EXC: Blue
-SIG: Black
SHIELD: Yellow
Loadcell material Stainless steel
Deflection at rated 300N:0.060
500N:0.040
1KN:0.040
2KN:0.035
3KN:0.035
5KN:0.035
10KN:0.055
20KN:0.050
30KN:0.130
50KN:0.140
100KN:0.160
200KN:0.200
300KN:0.250
500KN:0.350
mm
Natural frequency 300N:2.8
500N:3.6
1KN:5.4
2KN:7.8
3KN:9.3
5KN:13
10KN:16
20KN:23
30KN:9
50KN:12
100KN:17
200KN:9.4
300KN:8.9
500KN:6.2
kHz
Weight 300N:0.4
500N:0.4
1KN:0.4
2KN:0.4
3KN:0.4
5KN:0.4
10KN:0.4
20KN:0.4
30KN:1.8
50KN:1.8
100KN:1.8
200KN:4.4
300KN:8.5
500KN:13
kg

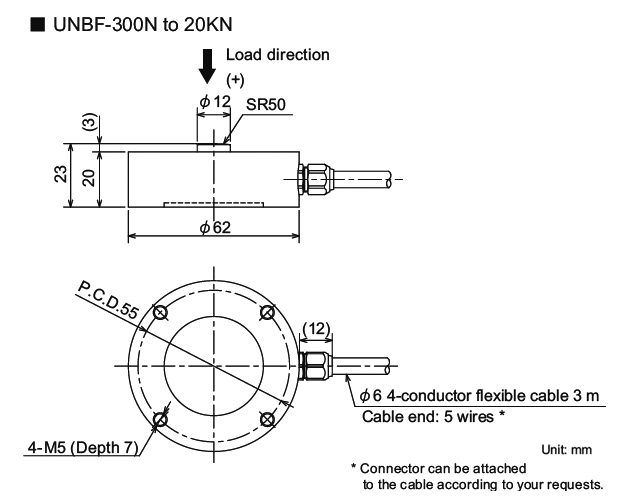

External dimension
