Product outline

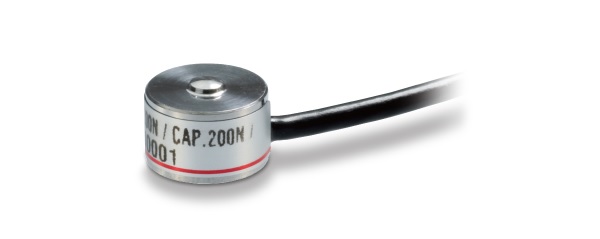

Ultra-compact compression type loadcell with a diameter of 7 mm and a height of 5 mm.

● Capacity 200 N / 500 N
● Construction material: Stainless steel
● Ultra-compact compression type loadcell with a diameter of 7 mm and a height of 5 mm

Specifications

Model UNCDW-200N, UNCDW-500N
Rated capacity 200, 500 N
Rated output 0.5 or more mV/V
Safe overload 120 %R.C.
Maximum safe overload 150 %R.C.
Zero balance ±20 %R.O.
Non-linearity 1.0 %R.O.
Hysteresis 1.0 %R.O.
Repeatability 1.0 %R.O.
Compensated temperature range +5 to +50
Safe temperature range -10 to +80
Temperature effect on zero 0.5 %R.O./10℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx.350 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance (DC50V) 1000 or more
Cable φ1.6 4-conductor color shield cable.
Length 0.5m.
End treatment 5-leads.

Cable color code +EXC:Red
+SIG : Green
-EXC : White
-SIG : Blue
SHIELD
Loadcell material Stainless steel
Deflection at rated 0.01 mm
Natural frequency 200N:116
500N:115
kHz
Weight 2 g

External dimension

Download

Product catalogue(PDF)
GC2018-UNCDW(549 KB)
Operation manual(PDF)
External dimention
DXF
(ZIP)
PDF
