Product outline

Compression Type Loadcell constructed with stainless steel
● Capacity 1 kN / 2 kN / 5 kN / 10 kN / 20 kN
● Construction material: Stainless steel
● Compact size and low capacity allows for wide use.

Specifications

Model UNGS-1KN, UNGS-2KN, UNGS-5KN, UNGS-10KN, UNGS-20KN
Rated capacity 1k, 2k, 5k, 10k, 20k N
Rated output 2±1% mV/V
Safe overload 150 %R.C.
Maximum safe overload 200 %R.C.
Zero balance ±5 %R.O.
Non-linearity 0.15 %R.O.
Hysteresis 0.1 %R.O.
Repeatability 0.1 %R.O.
Compensated temperature range -10 to +60
Safe temperature range -20 to +80
Temperature effect on zero 0.1 %R.O./10℃
Temperature effect on span 0.1 %R.O./10℃
Input resistance Approx.400 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 10 V
Maximum excitation voltage 20 V
Insulation resistance (DC50V) 2000 or more
Cable φ6 4-conductor color shield cable. Length 3m.
End treatment 5-leads.
Cable color code +EXC: Red
+SIG: White
-EXC: Blue
-SIG: Black
SHIELD
Loadcell material Stainless steel
Deflection at rated 1KN:0.040
2KN:0.045
5KN:0.040
10KN:0.045
20KN:0.050
mm
Natural frequency 1KN:6
2KN:8
5KN:13
10KN:16
20KN:23
kHz
Weight 1KN:0.3
2KN:0.3
5KN:0.3
10KN:0.3
20KN:0.35
kg

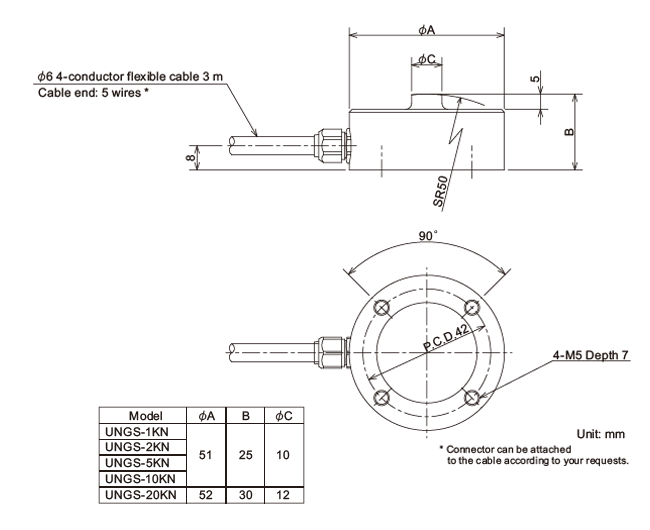

External dimension
