Product outline

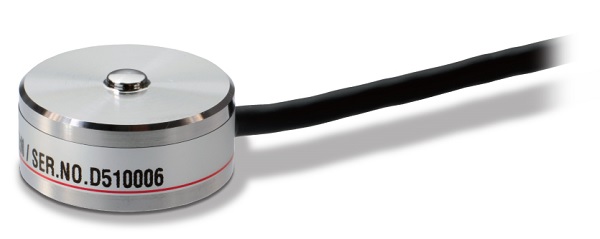

Compact compression type load cell with a diameter of 21 mm and a height of 10 mm
● Capacity 100 N/ 200 N/ 500 N/ 1 kN/ 2 kN/ 5 kN
● Construction material: Stainless steel
● Compact compression type load cell with a diameter of 21 mm and a height of 10 mm

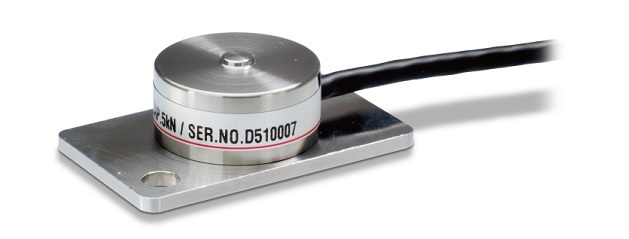

● UNLS-FG: W/ plate for screw fastening
Specifications
Model | UNLS-100N, UNLS-200N, UNLS-500N, UNLS-1KN, UNLS-2KN, UNLS-5KN, |
UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG, UNLS-1KN-FG, UNLS-2KN-FG, UNLS-5KN-FG |
---|---|---|
Rated capacity | 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN | |
Rated output | Approx. 1 mV/V | |
Safe overload | 150% R.C. | |
Zero balance | 10% or less R.O. | |
Non-linearity | 0.5% or less R.O. | 1.0% or less R.O. |
Hysteresis | 0.3% or less R.O. | 0.5% or less R.O. |
Repeatability | 1.0% or less R.O. | 1.0% or less R.O. |
Compensated temperature range |
0 to +50℃ | |
Safe temperature range |
0 to +60℃ | |
Temperature effect on zero |
0.5% R.O./10℃ or below | |
Temperature effect on span |
0.5% R.O./10℃ or below | |
Input resistance | Approx. 350 Ω | |
Output resistance | Approx. 350 Ω | |
Recommended excitation voltage |
2.5 V | |
Maximum excitation voltage |
5 V | |
Insulation resistance (DC50V) |
1000 MΩ or more | |
Cable | φ3 4-conductor shield cable 2 m Cable end: 5 wires |
|
Cable color code | +EXC: Red +SIG: Green -EXC: White -SIG: Black SHIELD: Yellow |
|
Load cell material | Stainless steel | |
Deflection at rated | 100N, 100N-FG:0.015 mm 200N, 200N-FG:0.015 mm 500N, 500N-FG:0.020 mm 1kN, 1kN-FG: 0.020 mm 2kN, 2kN-FG: 0.025 mm 5kN, 5kN-FG: 0.040 mm |
|
Natural frequency | 100N, 100N-FG:35 kHz 200N, 200N-FG:47 kHz 500N, 500N-FG:60 kHz 1kN, 1kN-FG: 85 kHz 2kN, 2kN-FG: 98 kHz 5kN, 5kN-FG: 102 kHz |
|
Weight | 100N: 20 g, 100N-FG: 35 g 200N: 20 g, 200N-FG: 35 g 500N: 20 g, 500N-FG: 35 g 1kN: 20 g, 1kN-FG: 35 g 2kN: 20 g, 2kN-FG: 35 g 5kN: 20 g, 5kN-FG: 35 g |
|
RoHS directives | 2011/65/EU (EU)2015/863 |

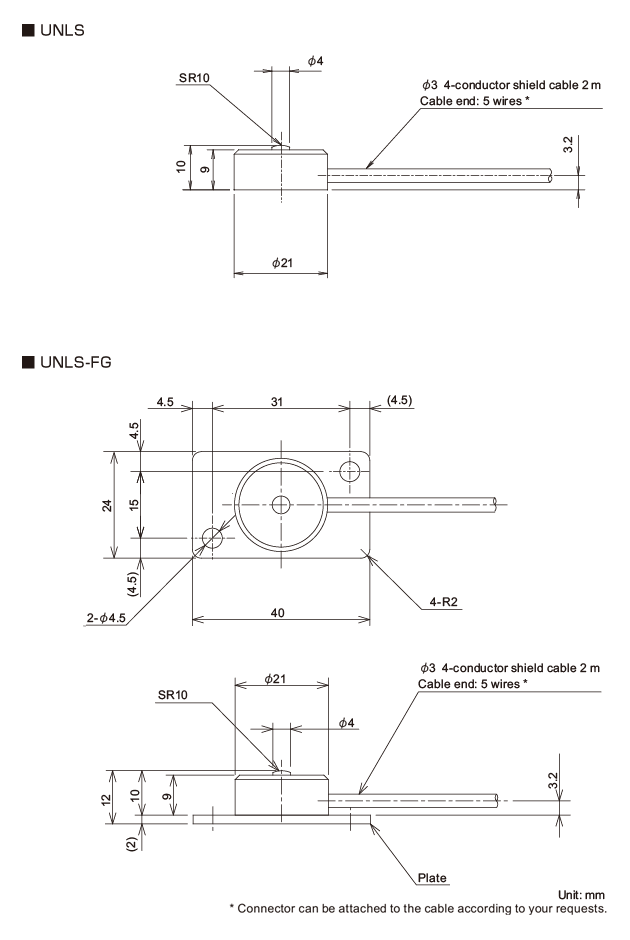

External dimension
