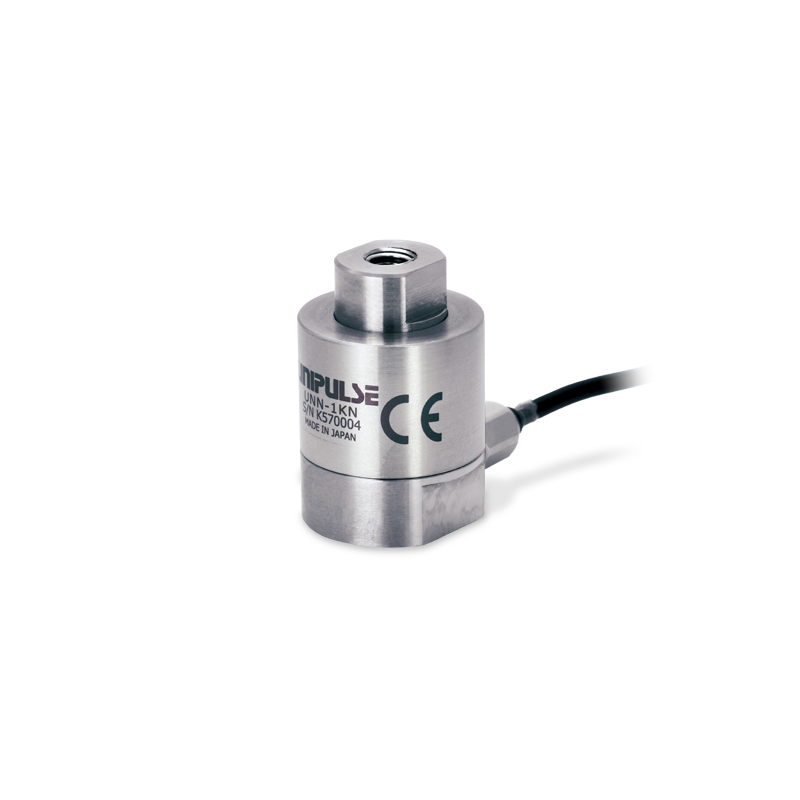

Product outline

Hardly any interference by torsion & less impact on accuracy against lateral load.
Easy-to-install double-end female thread type.

● Capacity 1 kN, 2 kN, 5 kN, 10 kN (20 kN is scheduled to be released sequentially.)
● Measures both tension & compression load
● The heights are short as 30 to 38.5 mm, allowing easy installation to equipment
● Even when used in horizontal direction, there is no impact of jig’s own weight, so that accurate measurements are possible.
● Number of parts can be reduced such as assembling a press machine without guides

Specifications

Model	UNN-1KN	UNN-2KN	UNN-5KN	UNN-10KN
Rated capacity	1 kN	2 kN	5 kN	10 kN
Rated output	Approx. 1.0 mV/V
Safe overload	300% R.C.
Zero balance	±10% R.O.
Non-linearity	0.2% or less R.O.
Hysteresis	0.2% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.5% R.O./10℃ or below
Temperature effect on span	0.5% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	5 V
Maximum excitation voltage	7.5 V
Insulation resistance (DC 50 V)	1000 MΩ or more
Deflection at rated	0.025 mm
Natural frequency	20 kHz
Cable	φ2.5 6 conductor flexible cable (3 m) Cable end: 7 wires			φ4 6 conductor flexible cable (3 m) Cable end: 7 wires
Load cell material	Stainless steel
Weight	Approx. 50 g			Approx. 100 g
RoHS directives	2011/65/EU (EU)2015/863

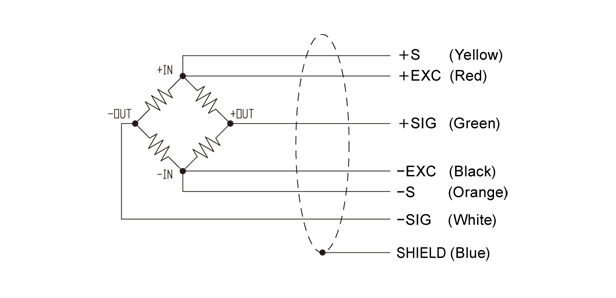

Wiring diagram

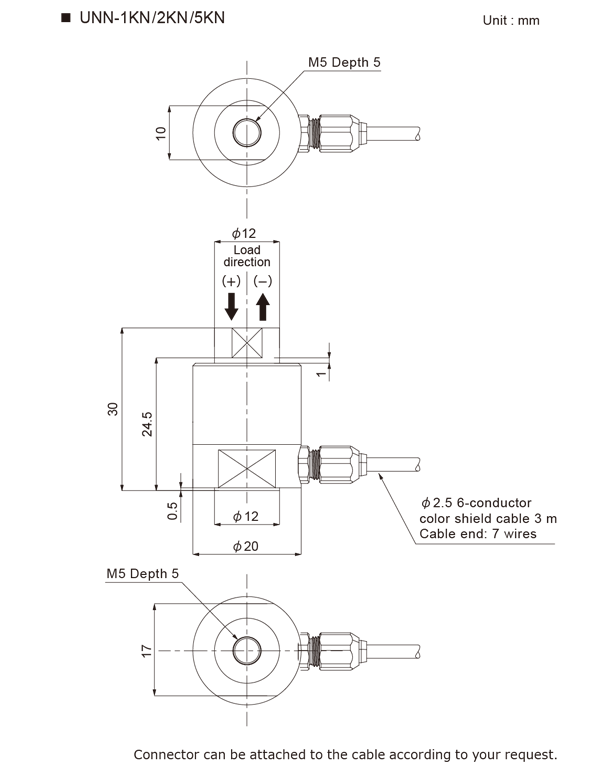

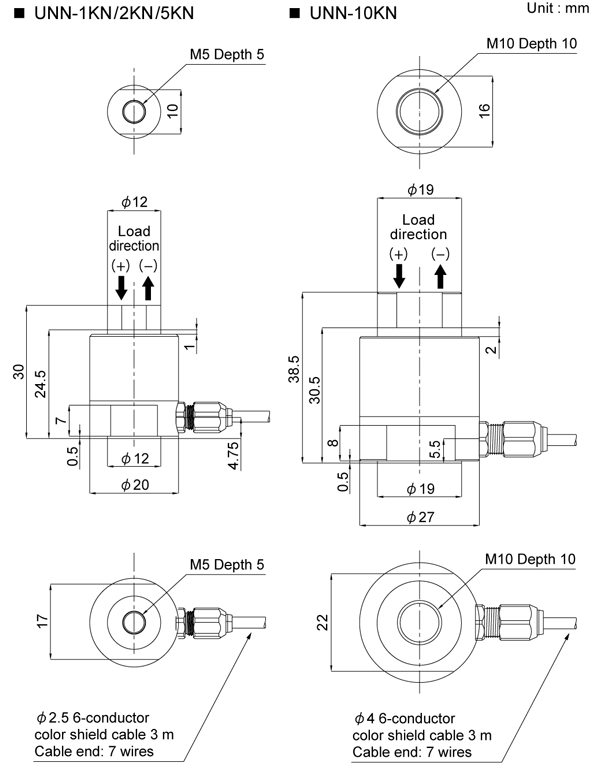

External dimension
