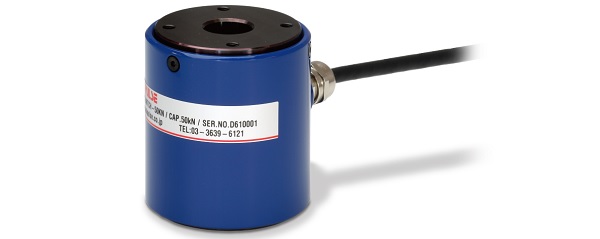

Product outline

Most appropriate for load control of press fitting, caulking, etc.
● Capacity 5 kN / 10 kN / 20 kN / 50 kN / 100 kN
● Construction material: Special alloy steel
● Most appropriate for load control of press fitting, caulking, etc.

Specifications

Model UNTCH-5KN, UNTCH-10KN, UNTCH-20KN,
UNTCH-50KN, UNTCH-100KN
Rated capacity 5k, 10k, 20k, 50k, 100k N
Rated output 1±1% mV/V
Safe overload 120 %R.C.
Maximum safe overload 150 %R.C.
Zero balance ±5 %R.O.
Non-linearity 0.5 %R.O.
Hysteresis 0.5 %R.O.
Compensated temperature range -10 to +70
Safe temperature range -30 to +80
Temperature effect on zero 0.1 %R.O./10℃
Temperature effect on span 0.1 %R.O./10℃
Input resistance Approx.350 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 10 V
Maximum excitation voltage 20 V
Insulation resistance (DC50V) 2000 or more
Cable φ6 4-conductor color shield cable. Length 3m.
End treatment 5-leads.
Cable color code +EXC: Red
+SIG: White
-EXC: Blue
-SIG: Black
SHIELD
Loadcell material Special alloy steel
Deflection at rated 5KN:0.025
10KN:0.025
20KN:0.045
50KN:0.050
100KN:0.065
mm
Natural frequency 5KN:13
10KN:7
20KN:11
50KN:14
100KN:20
kHz
Weight 5KN:0.3
10KN:0.95
20KN:1.0
50KN:1.0
100KN:1.0
kg

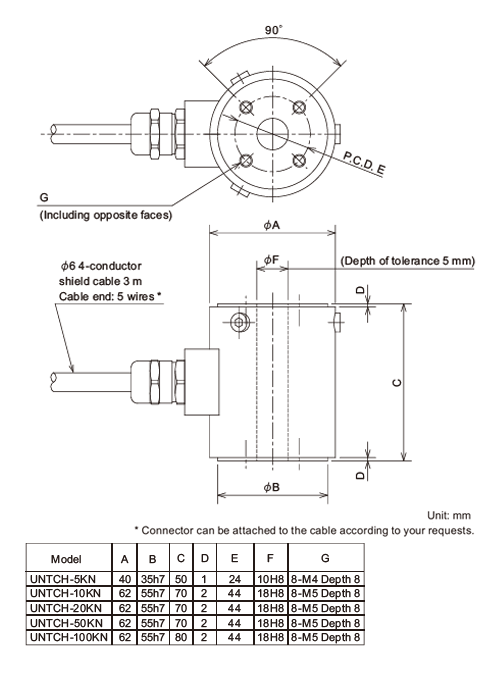

External dimension
