Product outline

Safe overload of 500% ! High axial stiffness !
Tension/compression loadcell

  • Capacity 100N
  • Safe overload rating of 500%
  • Suitable for click tester and push tester
  • A loadcell with the high sensitivity and rigidity both
  • The double shear type spring has a feature high axial stiffness

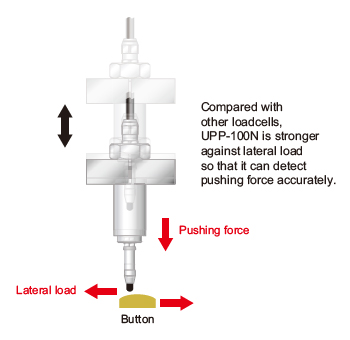

Example of use

Specifications

Model UPP-100N
Rated capacity 100 N
Rated output Approx. 0.4 mV/V
Safe overload 500 %R.C.
Zero balance 0.3 mV/V
Non-linearity 0.5 %R.O.
Hysteresis 0.5 %R.O.
Repeatability 0.5 %R.O.
Compensated temperature range 0 to +40
Safe temperature range -0 to +50
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx. 1000 Ω
Output resistance Approx. 1000 Ω
Recommended excitation voltage 10 V(AC,DC)
Cable φ2mm 4-conductor flexible cable (1.5m)
Cable color code +EXC: Red
+SIG: Green
-EXC: (Black/Blue)
-SIG: White
SHIELD
Loadcell material Aluminum alloy
Weight Approx. 30 (Excluding the cable) g


External dimension
