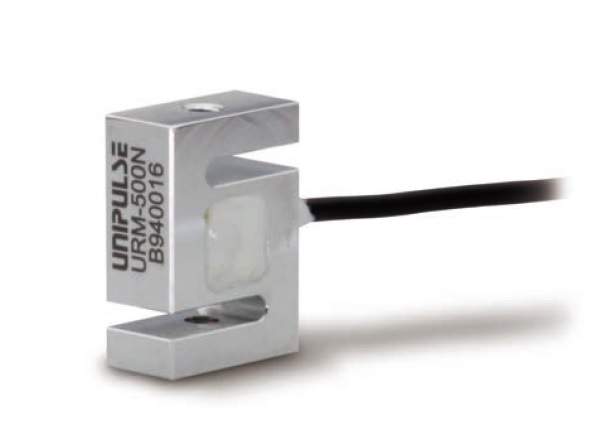

Product outline

Small, accurate & wide lineup of S-type load cell
Accuracy 3/10000 (Non-linearity, Hysteresis, Repeatability)

Specifications

Model URM-50N,URM-100N,URM-200N,URM-500N
Rated capacity 50,100,200,500 N
Rated output 1±20% mV/V
Safe overload 200 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.03 %R.O.
Hysteresis 0.03 %R.O.
Repeatability 0.03 %R.O.
Compensated temperature range -10 to +60
Safe temperature range -20 to +70
Temperature effect on zero 0.5 %R.O./10℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance 1000 or more
Cable φ2mm 4-conductor flexible cable (1m)
Cable color code +EXC: Red
+SIG: Green
-EXC: Black
-SIG: White
SHIELD: Yellow
Loadcell material Aluminum alloy

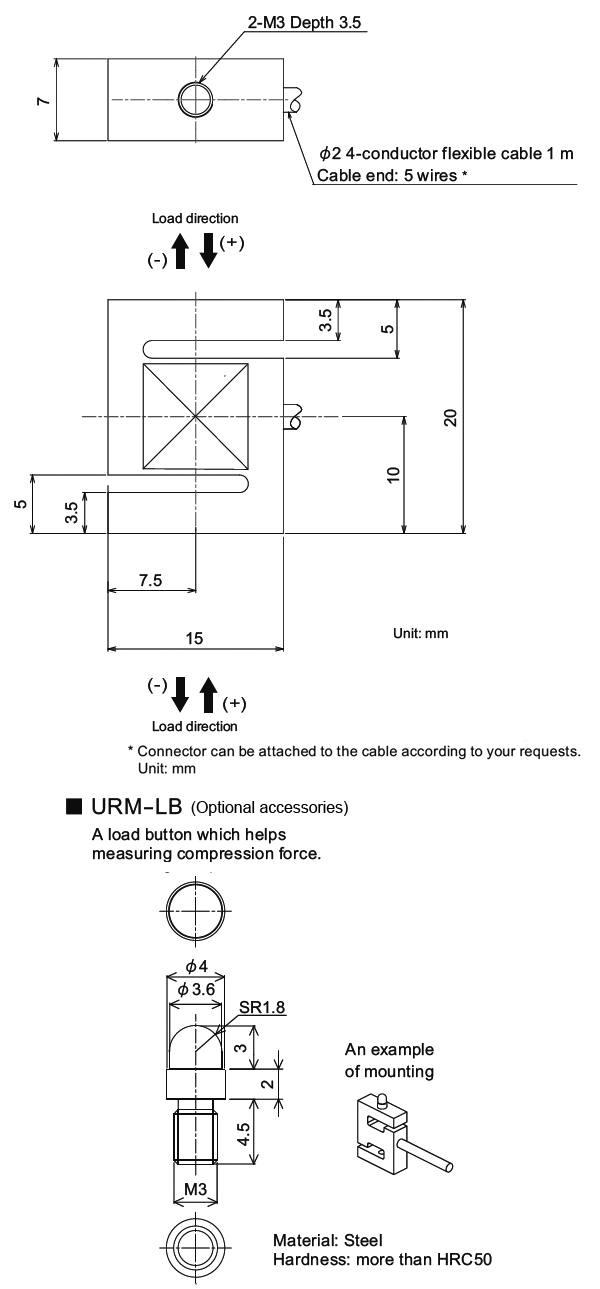

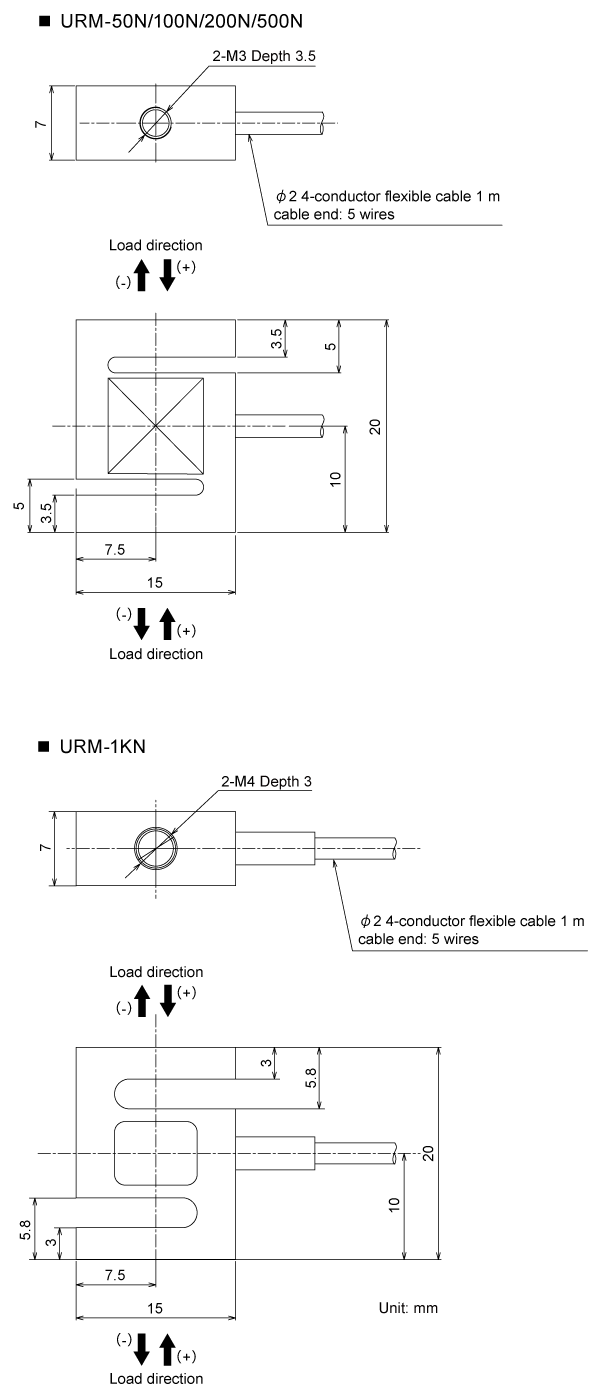

External dimension
