Product outline

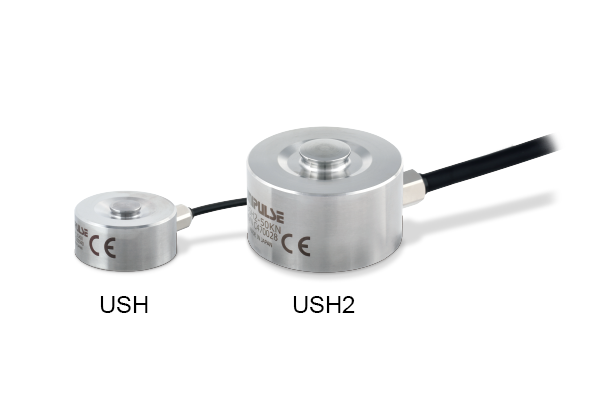

Compact size load cell with big capacity

Specifications

Model USH-10KN, USH-20KN USH-50KN
Rated capacity 10,20 50 kN
Rated output 1±20% mV/V
Safe overload 200 %R.C.
Zero balance ±20 %R.O.
Non-linearity 0.2 %R.O.
Hysteresis 0.15 %R.O.
Repeatability 0.1 %R.O.
Compensated temperature range -10 to +70
Safe temperature range -30 to +85
Temperature effect on zero 0.2 %R.O./10℃
Temperature effect on span 0.2 %R.O./10℃
Input resistance Approx.1000 Ω
Output resistance Approx.1000 Ω
Recommended excitation voltage 5 V
Maximum excitation voltage 7.5 V
Insulation resistance 1000 or more
Cable φ2.5mm 6-conductor flexible cable (3m)
Cable color code +EXC : Red
+S : Yellow
-S : Orange
-EXC : Black
+SIG : Green
-SIG : White
SHIELD : Blue
Deflection at rated 0.06 0.07 mm
Natural frequency 20 15 kHz
Loadcell material Stainless steel
Weight Approx.100 Approx.180 g

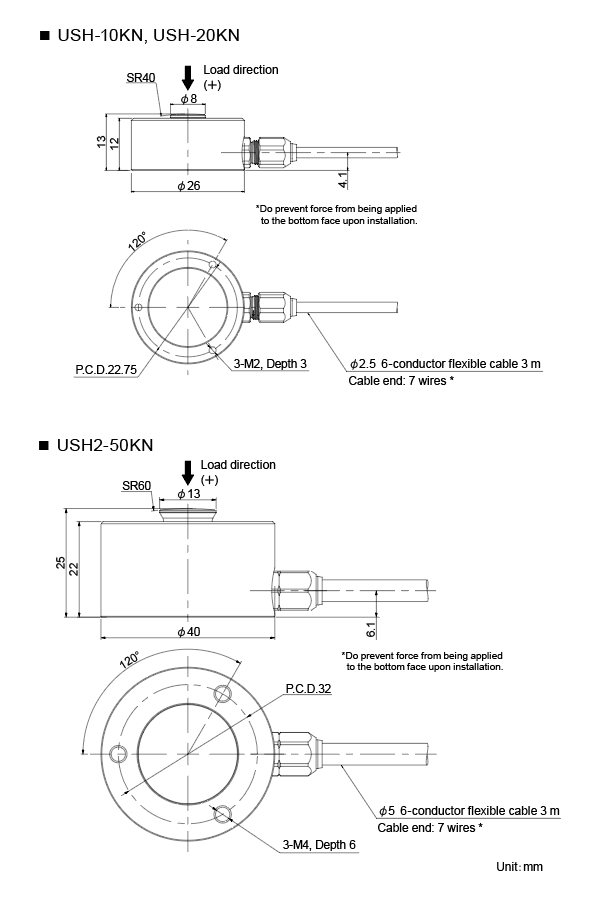

External dimension
