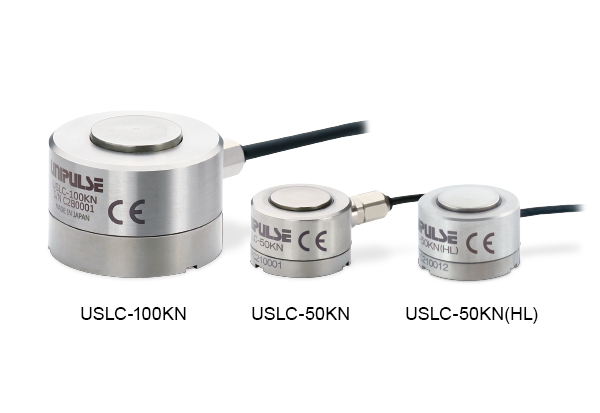

Product outline

  • Can measure up to 50kN with diameter of 22mm!
  • Accuracy 0.3%; astounding among those compact & high-capacity load cells
  • Easy & fast replacement from competitors’ loadcells

Specifications

Model USLC-50KN
Rated capacity 50kN
Rated output Approx. 2mV/V
Safe overload 150%R.C.
Zero balance ±10%R.O.
Non-linearity 0.3% or less R.O.
Hysteresis 0.3% or less R.O.
Repeatability 0.1% or less R.O.
Compensated temperature range -10 to +60℃
Safe temperature range -20 to +70℃
Temperature effect on zero 0.5%R.O/10℃ or below
Temperature effect on span 0.5%R.O/10℃ or below
Input resistance Approx.700Ω
Output resistance Approx.700Ω
Recommended excitation voltage 5V
Maximum excitation voltage 10V
Insulation resistance (DC50V) 1000MΩ or more
Cable φ2 4-conductor flexible cable (3m) Cable end: 5 wires
Loadcell material Stainless steel
Deflection at rated 0.08mm
Natural frequency 39kHz
Weight 40g
Example of use, Wiring diagram

Example of use, Wiring diagram

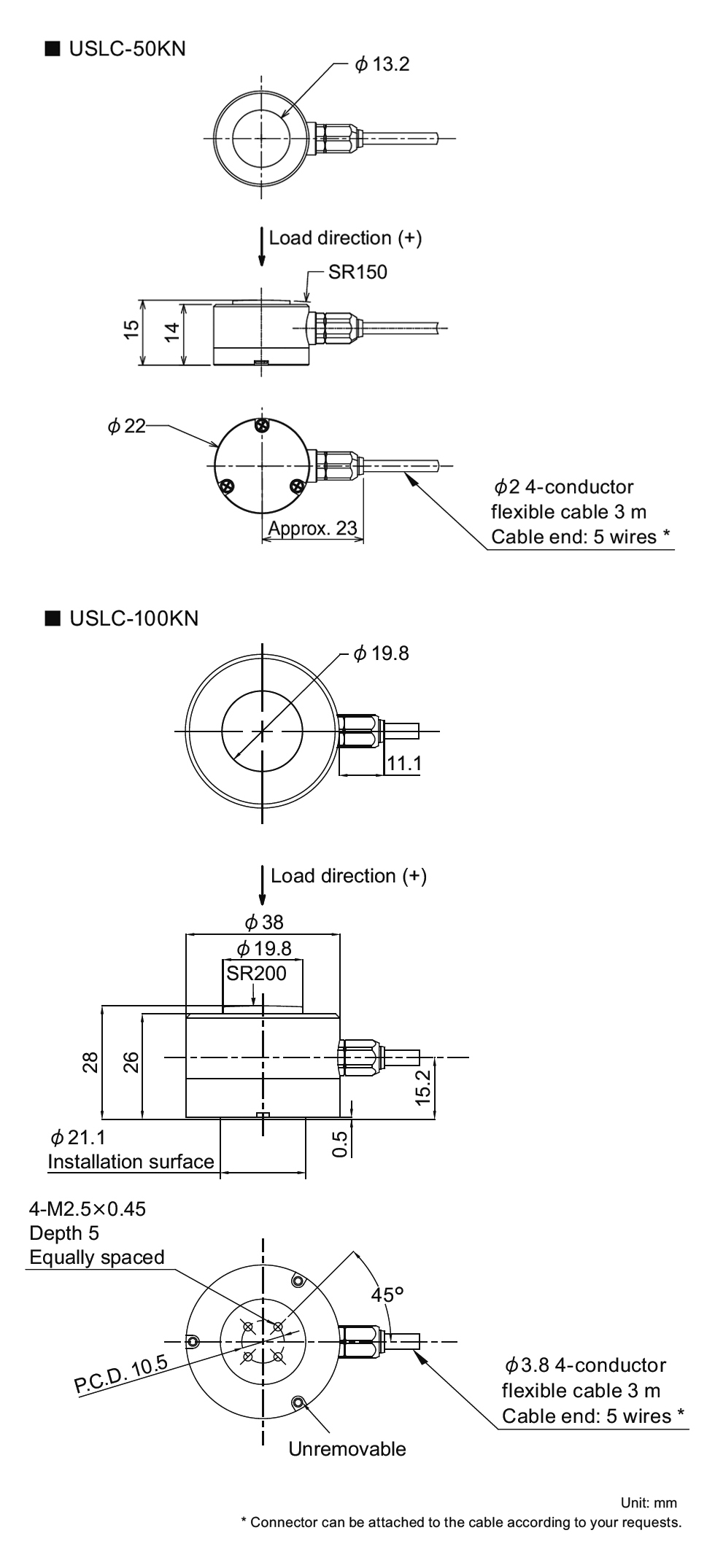

External dimension

External dimension
