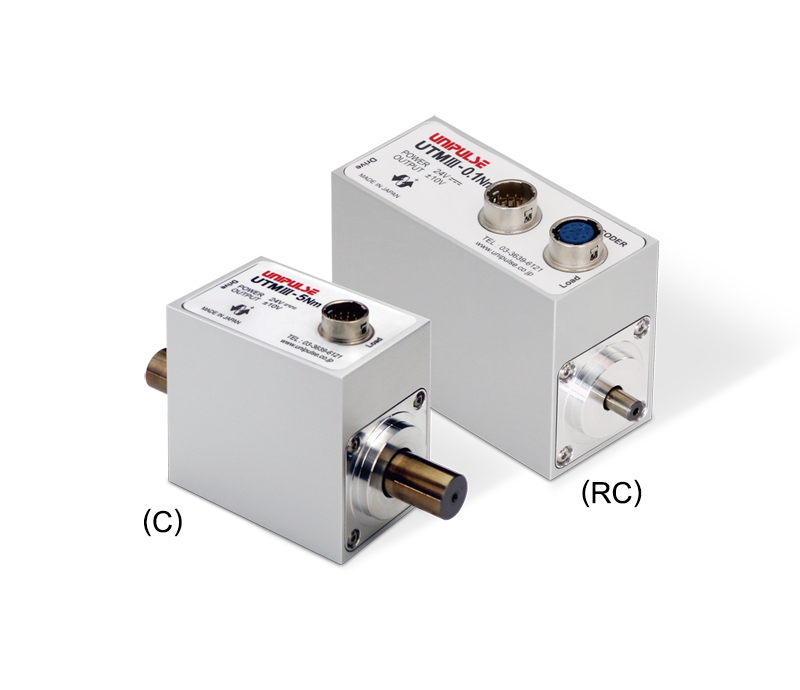

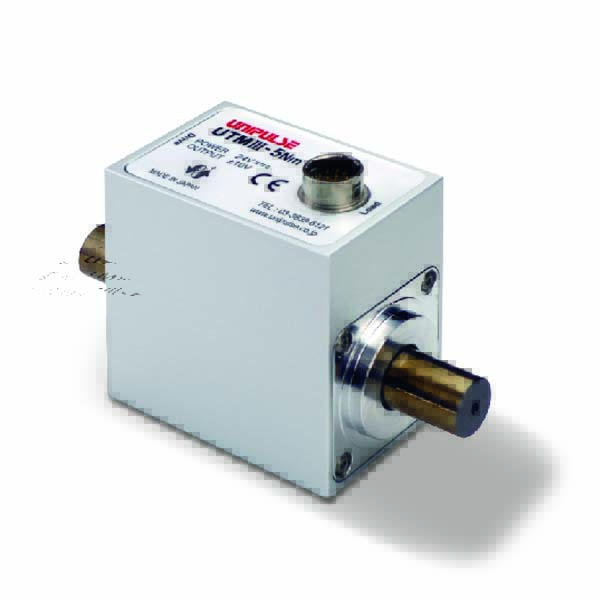

Product outline Both (C) and (RC)

New installation option of UTMⅢ!
New type for firm usage & fix torque meter!

●Wants center point of axis as reference for installation
●Wants to stop vibration & fix main unit
●Other reasons that require to fix main unit

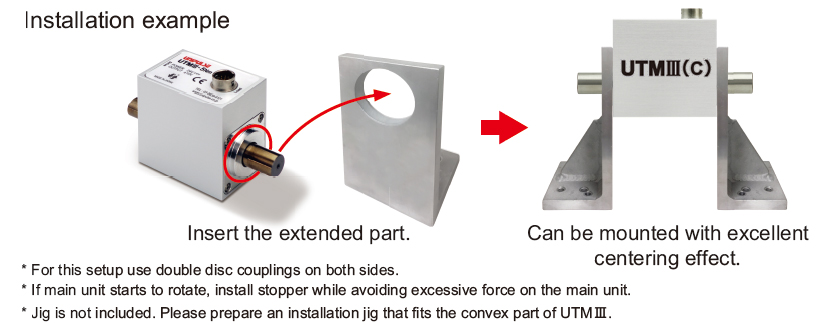

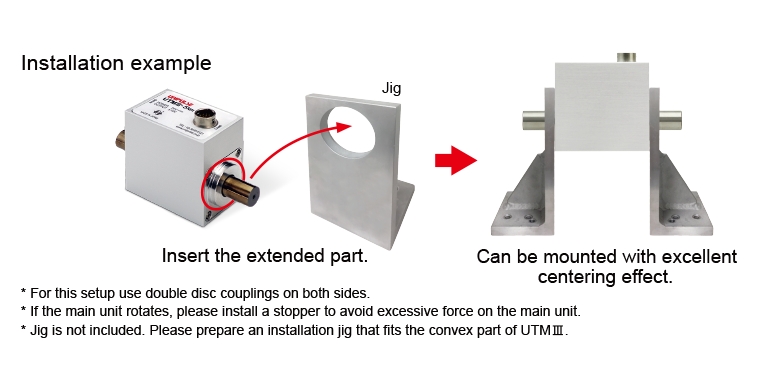

Installation example

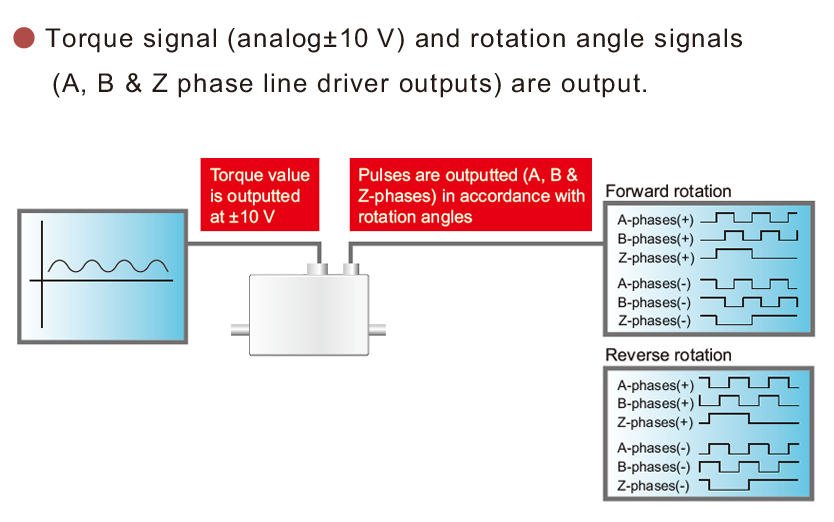

Rotary encoder (RC)

3600 pulses in 1 rotation. (0.1 degree per pulse)
●Measurement range: 0.05 to 500 Nm
●Optical encoder 3600 C/T
Ideal for detecting torque versus angle
*Maximum rotation speed is 5000 Frpm.

Specifications

» UTMⅢ(C) 0.05Nm to 10Nm
» UTMⅢ(C) 20Nm to 500Nm
» UTMⅢ(RC) 0.05Nm to 10Nm
» UTMⅢ(RC) 20Nm to 500Nm

UTMⅢ(C) 0.05Nm to 10Nm
Measurement range 0.05
Nm
0.1
Nm
0.2
Nm
0.5
Nm
1
Nm
2
Nm
5
Nm
10
Nm
Power supply DC 24 V ±15%
Consumption current 100 mA or less
Output range ±10 V DC Load resistance must be more than 5 kΩ
Responsivity 5 kHz
Rotation
signal
4 pulses per 1 rotation
Open collector Max. ratings 30 V, 10mA
Digital filter 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz
Safe overload 500% FS
Non-linearity 0.03% FS or less
Hysteresis 0.03% FS or less
Repeatability 0.03% FS or less
Operation
temp . range
-10 to +50℃
Temp. effect
on ZERO
0.01% FS/℃ or below
Temp. effect
on span
0.01% FS/℃ or below
Max. rotation speed 25000 rpm
Torsional spring constant 5.67 Nm/rad 11.57 Nm/rad 26.10 Nm/rad 93.1 Nm/rad 188 Nm/rad 414 Nm/rad 691 Nm/rad 1851 Nm/rad
Maximum torsional angle 8.81×
10-³(0.505°)
rad
8.64×
10-³(0.495°)
rad
7.66×
10-³ (0.439°)
rad
5.37×
10-³ (0.308°)
rad
5.32×
10-³(0.305°)
rad
4.83×
10-³(0.277°)
rad
7.24×
10-³(0.415°)
rad
5.40×
10-³(0.310°)
rad
Inertia moment 8.48×10-7
kgm2
8.58×10-7
kgm2
8.7×10-7
kgm2
1.46×10-6
kgm2
1.49×10-6
kgm2
1.39×10-6
kgm2
3.56×10-6
kgm2
3.66×10-6
kgm2
Ext. dimension
(case size)
54W×
49H×
32D mm
57W×
54H×
37D mm
Total length 74 mm 84 mm 97 mm
Shaft diameter 5 mm 8 mm 12 mm
Approx. weight 150 g 170 g 260 g
Supplied cable 12-core shielded cable(2 m), cable end separated
(Cable length is switchable to 5 m(Option:UTMⅢ-L5))
CE marking
certification
EMC directives EN61326-1,EN61326-2-3



UTMⅢ(C) 20Nm to 500Nm
Measurement range 20 Nm 50 Nm 100 Nm 200 Nm 500 Nm
Power supply DC 24 V ±15%
Consumption current 150 mA or less
Output range ±10 V DC Load resistance must be more than 5 kΩ
Responsivity 5 kHz
Rotation
signal
4 pulses per 1 rotation
Open collector Max. ratings 30 V, 10 mA
Digital filter 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz
Safe overload 500% FS
Non-linearity 0.03% FS or less
Hysteresis 0.03% FS or less
Repeatability 0.03% FS or less
Operation
temp . range
-10 to +50℃
Temp. effect
on ZERO
0.01% FS/℃ or below
Temp. effect
on span
0.01% FS/℃ or below
Max. rotation speed 20000 rpm 15000
rpm
12000
rpm
10000
rpm
Torsional spring constant 5386 Nm/rad 8428 Nm/rad 17.3×
10³ Nm/rad
41.7×
10³ Nm/rad
117×
10³ Nm/rad
Maximum torsional angle 3.71×
10-³(0.213°)
rad
5.93×
10-³(0.340°)
rad
5.78×
10-³(0.331°)
rad
4.79×
10-³(0.275°)
rad
4.28×
10-³(0.246°)
rad
Inertia moment 2.59×10-5
kgm2
2.66×10-5
kgm2
6.59×10-5
kgm2
1.40×10-4
kgm2
4.70×10-4
kgm2
Ext. dimension
(case size)
70W×
63H×
47D mm
67W×
63.5H×
56D mm
67W×
68H×
61D mm
67W×
78H×
71D mm
Total length 150 mm 170 mm 177 mm 187 mm 217 mm
Shaft diameter 20 mm 25 mm 30 mm 40 mm
Approx. weight 690 g 1.1 kg 1.5 kg 2.6 kg
Supplied cable 12-core shielded cable(2 m), cable end separated
(Cable length is switchable to 5 m(Option:UTMⅢ-L5))
CE marking
certification
EMC directives EN61326-1,EN61326-2-3



UTMⅢ(RC) 0.05Nm to 10Nm
Measurement range 0.05 Nm 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm
Power supply DC 24 V ±15%
Consumption current 100 mA or less
Output range ±10 V DC Load resistance must be more than 5 kΩ
Responsivity 5 kHz
Rotation
signal
4 pulses per 1 rotation
Open collector Max. ratings 30 V, 10 mA
Digital filter 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz
Safe overload 500% FS
Non-linearity 0.03% FS or less
Hysteresis 0.03% FS or less
Repeatability 0.03% FS or less
Operation
temp . range
-10 to +50℃
Temp. effect
on ZERO
0.01% FS/℃ or below
Temp. effect
on span
0.01% FS/℃ or below
Max. rotation speed 25000 rpm
Torsional spring constant 5.55 Nm/rad 11.08 Nm/rad 23.73 Nm/rad 88.32 Nm/rad 169.41 Nm/rad 333.57 Nm/rad 831 Nm/rad 1492 Nm/rad
Maximum torsional angle 9.01×
10-³(0.516°)
rad
9.02×
10-³(0.517°)
rad
8.43×
10-³ (0.483°)
rad
5.66×
10-³ (0.324°)
rad
5.90×
10-³(0.338°)
rad
6.00×
10-³(0.344°)
rad
6.02×
10-³(0.345°)
rad
6.70×
10-³(0.384°)
rad
Inertia moment 1.39×10-6
kgm2
1.40×10-6
kgm2
1.41×10-6
kgm2
1.92×10-6
kgm2
1.95×10-6
kgm2
1.85×10-6
kgm2
4.26×10-6
kgm2
4.36×10-6
kgm2
Ext. dimension
(case size)
73W×
49H×
32D mm
76W×
54H×
37D mm
Total length 93 mm 103 mm 116 mm
Shaft diameter 5 mm 8 mm 12 mm
Approx. weight 190 g 210 g 320 g
Supplied cable 12-core shielded cable(2 m), cable end separated
(Cable length is switchable to 5 m(Option:UTMⅢ-L5))
CE marking
certification
EMC directives EN61326-1,EN61326-2-3
Encorder part specifications
Power supply DC 5 to 24 V
Consumption current 200 mA or less
Detection method Optical encoder
Output pulse number 3600 pulses per 1 rotation
Output phase A, B & Z-phases
Output signal Differential line driver signal with 90° phase
difference (RS-422A compliant)
Maximum measurable
rotation speed
5000 rpm



UTMⅢ(RC) 20Nm to 500Nm
Measurement range 20 Nm 50 Nm 100 Nm 200 Nm 500 Nm
Power supply DC 24 V ±15%
Consumption current 150 mA or less
Output range ±10 V DC Load resistance must be more than 5 kΩ
Responsivity 5 kHz
Rotation
signal
4 pulses per 1 rotation
Open collector Max. ratings 30 V, 10 mA
Digital filter 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz
Safe overload 500% FS
Non-linearity 0.03% FS or less
Hysteresis 0.03% FS or less
Repeatability 0.03% FS or less
Operation
temp . range
-10 to +50℃
Temp. effect
on ZERO
0.01% FS/℃ or below
Temp. effect
on span
0.01% FS/℃ or below
Max. rotation speed 20000 rpm 15000
rpm
12000
rpm
10000
rpm
Torsional spring constant 4390 Nm/rad 7578 Nm/rad 15.9×
10³ Nm/rad
37.6×
10³ Nm/rad
106×
10³ Nm/rad
Maximum torsional angle 4.56×
10-³(0.261°)
rad
6.60×
10-³(0.378°)
rad
6.28×
10-³(0.360°)
rad
5.32×
10-³(0.305°)
rad
4.71×
10-³(0.270°)
rad
Inertia moment 2.86×10-5
kgm2
2.93×10-5
kgm2
7.56×10-5
kgm2
1.56×10-4
kgm2
5.12×10-4
kgm2
Ext. dimension
(case size)
87W×
63H×
47D mm
84W×
63.5H×
56D mm
84W×
68H×
61D mm
84W×
78H×
71D mm
Total length 167 mm 187 mm 194 mm 204 mm 234 mm
Shaft diameter 20 mm 25 mm 30 mm 40 mm
Approx. weight 770 g 1.2 kg 1.6 kg 2.8 kg
Supplied cable 12-core shielded cable(2 m), cable end separated
(Cable length is switchable to 5 m(Option:UTMⅢ-L5))
CE marking
certification
EMC directives EN61326-1,EN61326-2-3
Encorder part specifications
Power supply DC 5 to 24 V
Consumption current 200 mA or less
Detection method Optical encoder
Output pulse number 3600 pulses per 1 rotation
Output phase A, B & Z-phases
Output signal Differential line driver signal with 90° phase
difference (RS-422A compliant)
Maximum measurable
rotation speed
5000 rpm 2500 rpm
