Product outline
Capacity 1 kN / 2 kN / 5 kN / 10 kN / 20 kN
Tension / compression type load cell
Less impact from lateral load pressing force can be measured accurately
Specifications
| Model | UTTC-1KN | UTTC-2KN UTTC-5KN |
UTTC-10KN | UTTC-20KN | |
|---|---|---|---|---|---|
| Rated capacity | 1 | 2, 5 | 10 | 20 | kN |
| Rated output | 1±20% | mV/V | |||
| Safe overload | 150 | %R.C. | |||
| Zero balance | ±10 | mV/V | |||
| Non-linearity | 0.2 | 0.1 | %R.O. | ||
| Hysteresis | 0.1 | 0.2 | %R.O. | ||
| Repeatability | 0.1 | %R.O. | |||
| Compensated temperature range | -10 to +60 | ℃ | |||
| Safe temperature range | -20 to +70 | ℃ | |||
| Temperature effect on zero | 0.5 | %R.O./10℃ | |||
| Temperature effect on span | 0.5 | %R.O./10℃ | |||
| Input resistance | Approx. 1000 | Ω | |||
| Output resistance | Approx. 1000 | Ω | |||
| Recommended excitation voltage | 10 | V | |||
| Maximum excitation voltage | 15 | V | |||
| Insulation resistance | 1000 or more | MΩ | |||
| Cable | φ3.8mm 4-conductor flexible cable (3m) Cable end: 5 wires | ||||
| Cable color code | ＋EXC：Red ＋SIG：Green －EXC：(Black) －SIG：White SHIELD：Yellow |
||||
| Loadcell material | Aluminum | Stainless steel | |||
| Deflection at rated | 0.020 | 0.030 | 0.022 | 0.023 | mm |
| Natural frequency | 3.8 | 4.0 | 5.2 | 4.2 | kHz |
| Weight | 140 | 210 | 300 | 910 | g |

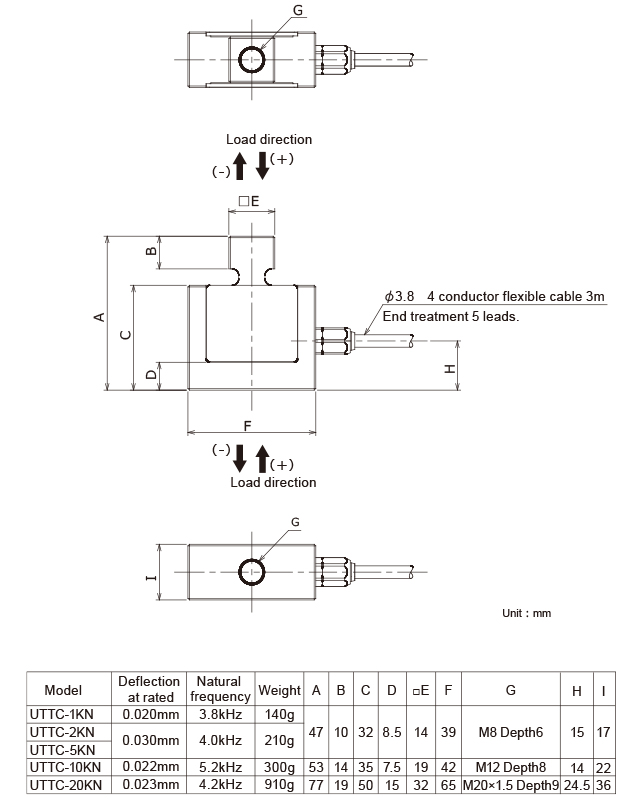

External dimension
