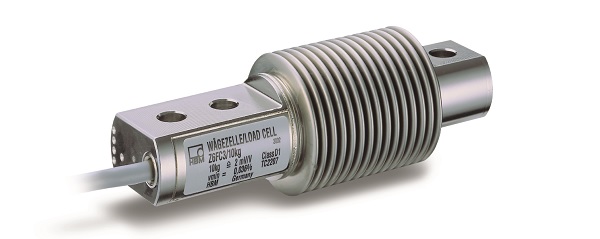

Product outline

Most appropriate for load control of hopper scales, conveyor scales, etc.

● Capacity 5 kg / 10 kg / 20 kg / 50 kg / 100 kg / 200 kg
● High accuracy, constructed of stainless steel, hermetically sealed
● Stainless steel bellows that eliminate disturbance
● Applications: Hopper scales, conveyor scales, etc.

Specifications

Model Z6FD1-5KG Z6FC3-10KG Z6FC3-20KG, Z6FC3-50KG,
Z6FC3-100KG, Z6FC3-200KG
Rated capacity 5 10 20, 50, 100, 200 kg
Rated output 2.0 +0.02 -0.002 2±0.1% 2±0.05% mV/V
Safe overload 150 %R.C.
Maximum safe overload 300 %R.C.
Non-linearity 0.05 0.0180 (typ) %R.O.
Hysteresis 0.05 0.0170 (typ) %R.O.
Creep 0.049 0.0166 %R.O./30min
Compensated temperature range -10 to +40
Safe temperature range -30 to +70
Temperature effect on zero 0.05 0.0125 %R.O./10℃
Temperature effect on span 0.05 0.0080(typ) %R.O./10℃
Input resistance 350 to 480 Ω
Output resistance 356±0.2 356±0.12 Ω
Maximum excitation voltage 12 V
Insulation resistance 5000 or more
Degrees of protection IP68
Cable φ5.4 6-conductor color shield cable. Length 3m
Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD
Loadcell material Stainless steel
Deflection at rated 5KG:0.24
10KG:0.3
20KG:0.29
50KG:0.27
100KG:0.31
200KG:0.39

mm

Weight 0.5 kg

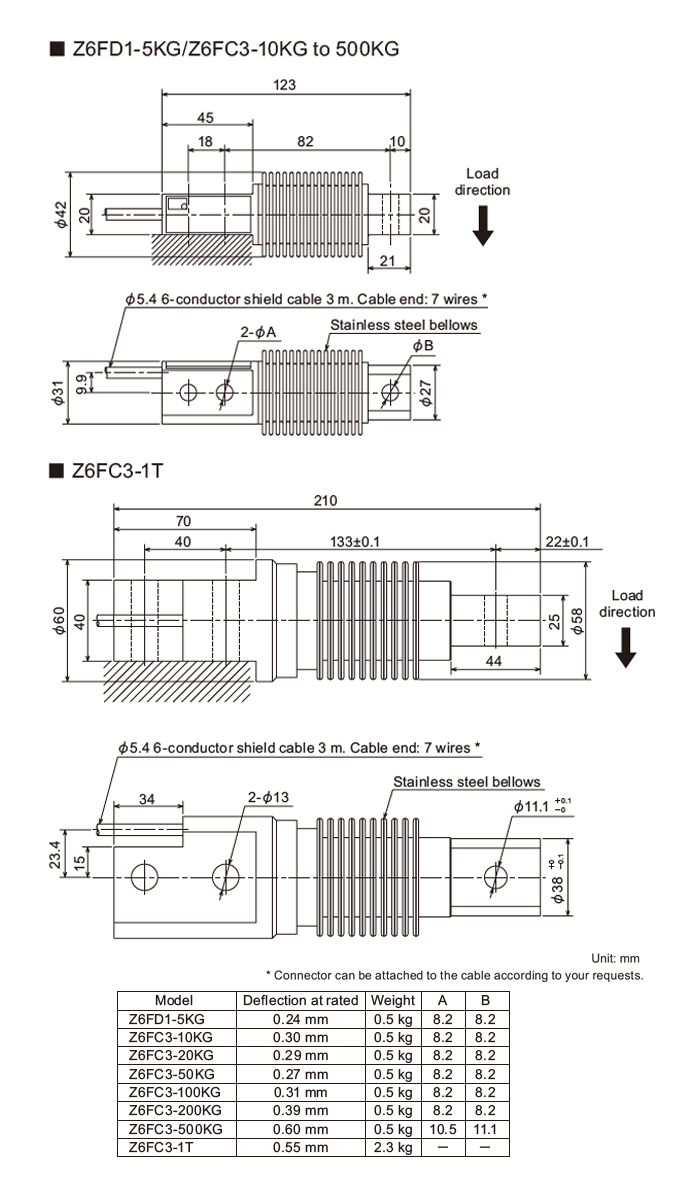

External dimension
